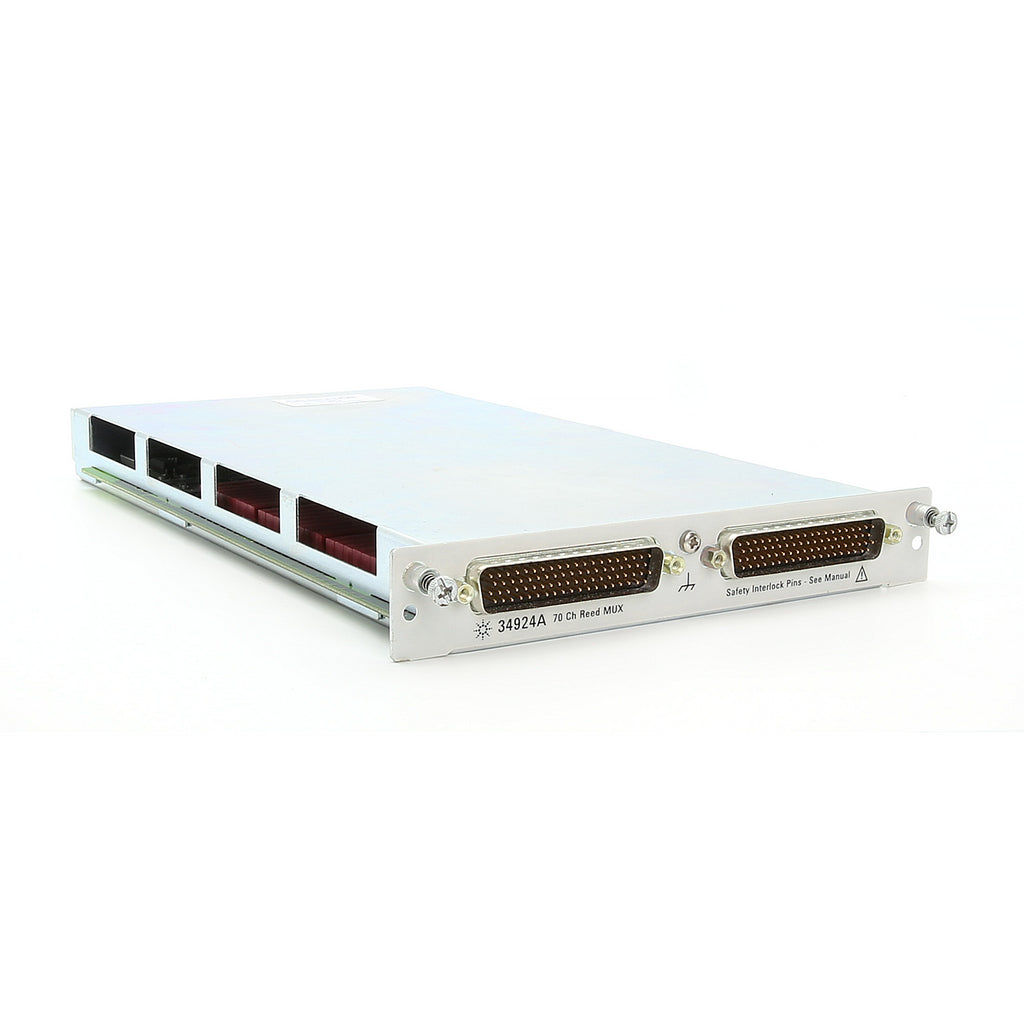

Keysight / Agilent 34924A 70 Channel Reed Multiplexer

Keysight / Agilent MPN: 34924A
REFURBISHED & TESTED 6-MONTH WARRANTY ALSO AVAILABLE FOR RENT

Price:
Sale price$1,495.00 USD
Stock:
In stock - Ships in 1 to 2 Business Days

Description

Keysight / Agilent 34924A 70 Channel Reed Multiplexer

The Agilent 34924A module for the 34980A Multifunction Switch/Measure Unit is a high speed-multiplexer for general purpose scanning. It uses reed relays to achieve scan rates up to 500 channels-per-second. Use this module for high-throughput automated test applications as well as high-speed data logging and monitoring tasks.

Current measurements can be accomplished with user supplied shunts. Standard 50-pin Dsub connectors allow for use with standard cables, terminal blocks, or mass interconnect solutions. 2- and 4-wire channels may be mixed on the same module.

Features:

  • 70 - 2-wire configurations, 35 - 4-wire configurations
  • High voltage - up to 150 V, 0.5 A
  • 100 ohm input protection resistors that limit current and protect the reed relays
  • Bandwidth up to 25 MHz
  • AC or DC current measurements without external shunts
  • Flexible connections via standard 50- or 78- pin Dsub cables or detachable terminal blocks

Please see Datasheet for complete details and specifications.
