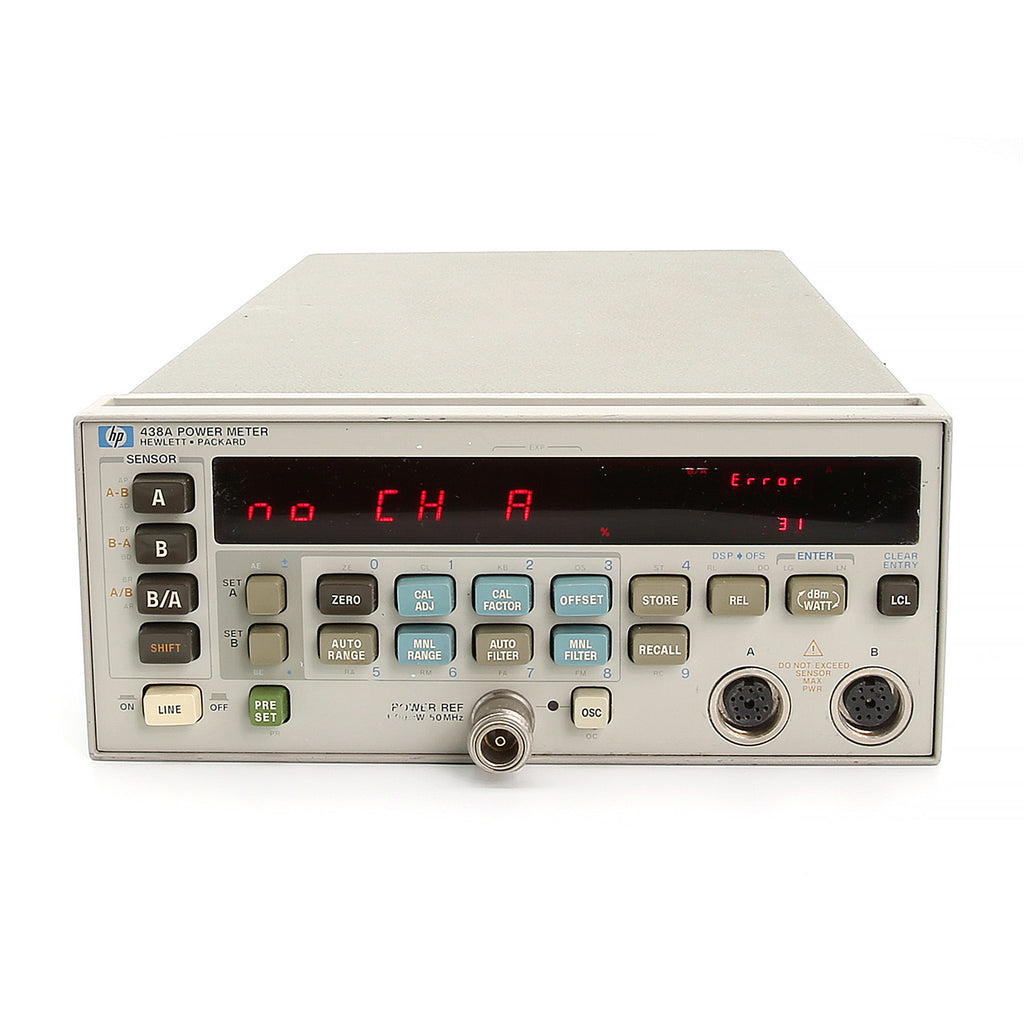

Keysight / Agilent 438A RF Power Meter, Digital, Dual Channel
The 438A is a programmable, dual channel RF power meter providing for manual and automatic RF and microwave power measurements with both absolute or relative capability. The 438A is compatible with all 8480 series power sensors.
- Frequency Range: 100 kHz to 50 GHz (sensor dependent)
- Power range: -70 dBm to +44 dBm (100 pW to 25 W) sensor dependent
- Resolution: to 0.001 dB
- Input capable offset
- Nineteen store/recall registers
- Accuracy: ±0.5% watt mode; ±0.02 dB dBm mode
- Internal 50 MHz, 1.0 mW power reference
- GPIB interface
- Recorder output
- 110, 120/220, 240 Vac +5% -10%; 48-66/300-440 Hz operation
- Weight: 13 lb; Size: 89 mm (3.5 in)H x 213 mm (8.4 in)W x 418 mm (16.8 in)D
Please see Datasheet for complete details and specifications.
