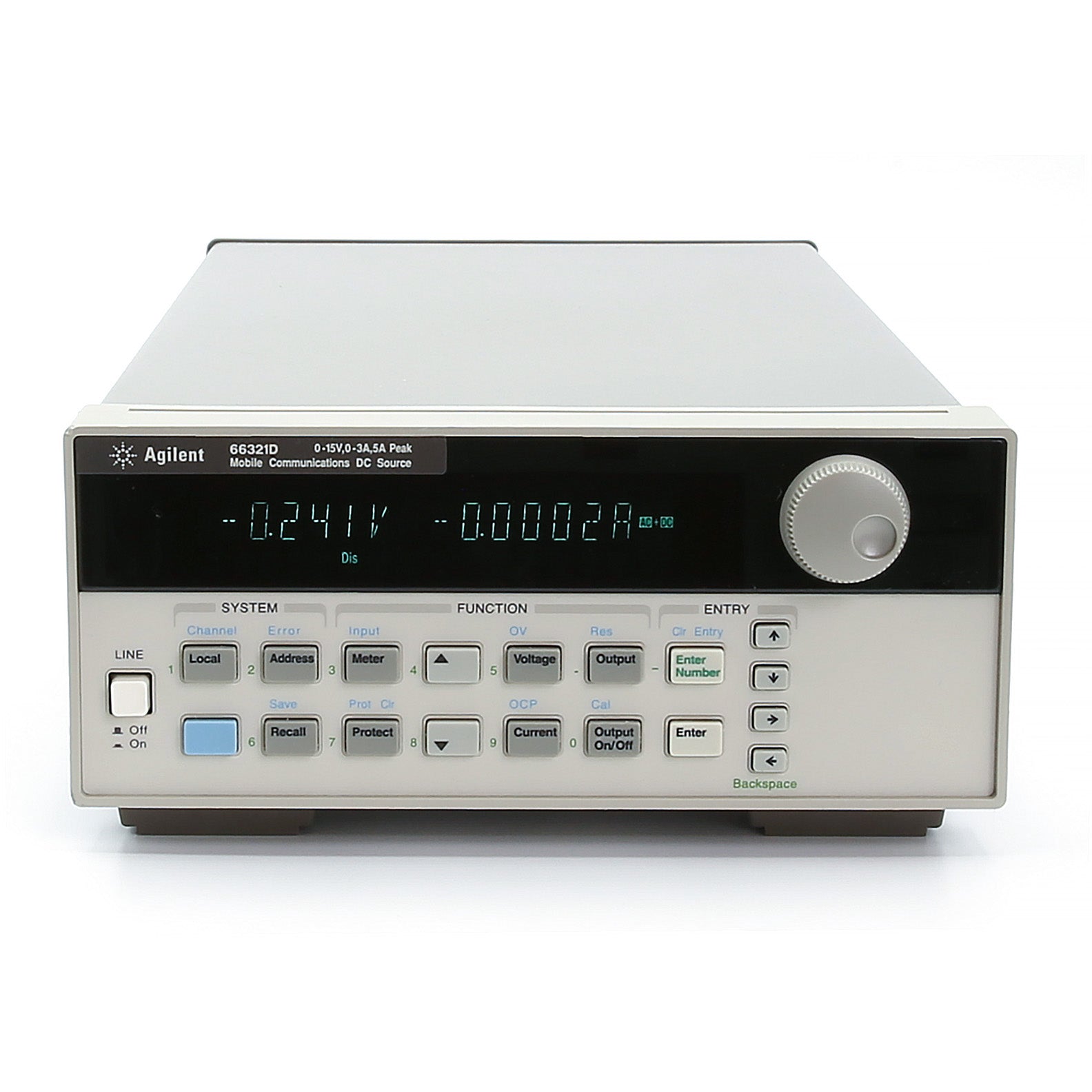

Keysight / Agilent 66321D Mobile Communications DC Source 0-15Vdc, 0-3A w/Battery Emulation, DVM

Keysight / Agilent 66321D Mobile Communications DC Source 0-15Vdc, 0-3A w/Battery Emulation, DVM

The 66321D Mobile Communication DC Source offers several features ideal for testing wireless and battery powered devices. Excellent voltage transient response ensures maximum test-system throughput by minimizing device shutdowns due to significant voltage drops in the test wiring. Built-in advanced measurement system to accurately measure battery current drains when the device operates in different modes and a feature that enables cellular telephone manufacturers to detect permanently and intermittently open-sense wire connections.

The 66321D mobile communications dc source provides fast transient response, exceptional sourcing, output resistance programming, and precision measurement. This product is specially designed for testing next generation digital wireless communications products. The 66321D mobile communications dc source offers a new capability that simulates the internal resistance of a battery or battery pack. Additionally, these high performance models offer improved transient response and stable output operation with either short or long load leads. The 66321D dc source provides all of the capabilities of the 66321B with the addition of a built-in digital voltmeter.

Features:

• Output ratings
  • Voltage: 0 to 15 V
  • Current: 0 to 3 A
  • Peak Current for up to 7 ms: 5 A
• Programming accuracy at 25°C ±5°C (% of setting plus fixed)
  • Voltage: 0.05% + 10 mV
  • +Current: 0.05% + 1.33 mA
• DC readback accuracy
  • Voltage: 0.03% + 5 mV
  • Current (-3 A to + 5 A): 0.2% + 0.5 mA
  • Current (-1 A to + 1 A): 0.1% + 0.2mA
  • Current (-20 mA to + 20 mA): 0.1% + 2.5 µA
• Transient response
  • 40 mV drop, <20 µs transient response time
• Weight: 9.7 kg (20 lb)
• Shipping Weight: 11.1 kg (24.5 lb)

Please see Datasheet for complete details and specifications.
