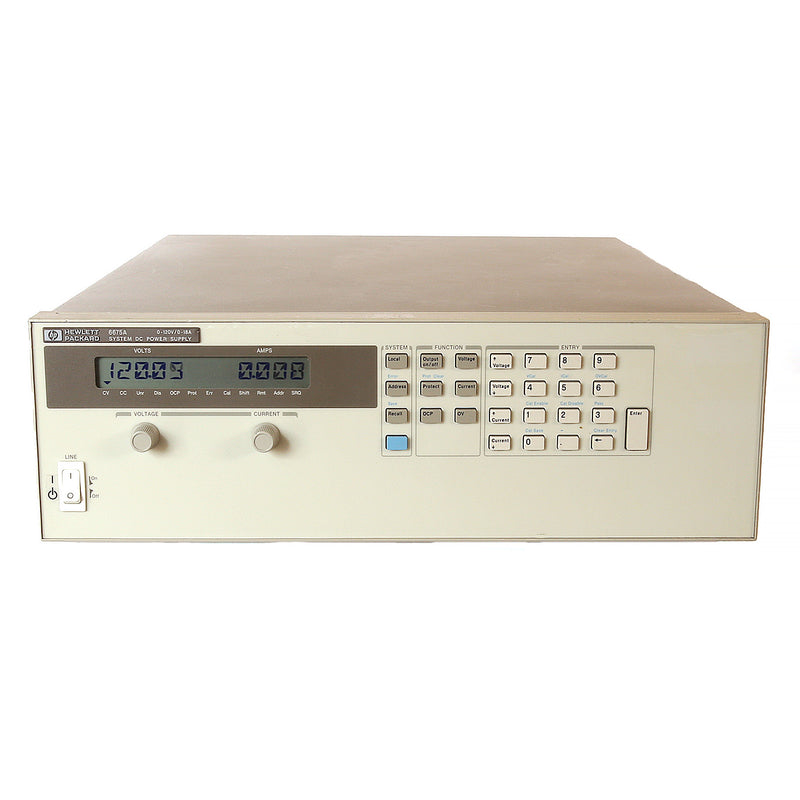

Keysight / Agilent 6675A System DC Power Supply, 0 to 120 Vdc, 0 to 18 A, 2160 W

Keysight / Agilent MPN: 6675A
REFURBISHED & TESTED 6-MONTH WARRANTY ALSO AVAILABLE FOR RENT

Price:
Sale price$1,095.00 USD
Stock:
In stock - Ships in 1 to 2 Business Days

Description

Keysight / Agilent 6675A System DC Power Supply, 0 to 120 Vdc, 0 to 18 A, 2160 W

The 6675A is part of the 667x series of 2160 Watt, single output, power supplies, with an internal GPIB interface and SCPI programming. These models provide many talker/listener functions including remote programming of voltage and current with readback of actual measured output values. 16 supplies can be connected to one GPIB interface via a serial link connection.

Features:

  • 0 to 120 Vdc
  • 0 to 18 A
  • Programming accuracy: Voltage 0.04% + 120 mV, Current Voltage 0.1% + 12 mA
  • Load regulation: Voltage 0.002% + 4 mV, Current 0.005% + 1 mA
  • Ripple & noise (rms/p-p): 1.9 mV / 16 mV
  • Auto-parallel up to five units
  • Outputs can be connected in series
  • Programmable over-voltage and over-current protection
  • Over-temperature protection
  • Discrete Fault Indicator/Remote Inhibit (DFI/RI)
  • Self-test occurs at power-on from an GPIB command
  • User definable power-on state
  • VXI plug & play drivers
  • 191 to 250 Vac; 47-63 Hz operation
  • Weight: 62 lb; Size: 133 mm (5.25 in)H x 426 mm (16.75 in)W x 640 mm (25.2 in)D

Please see Datasheet for complete details and specifications.
