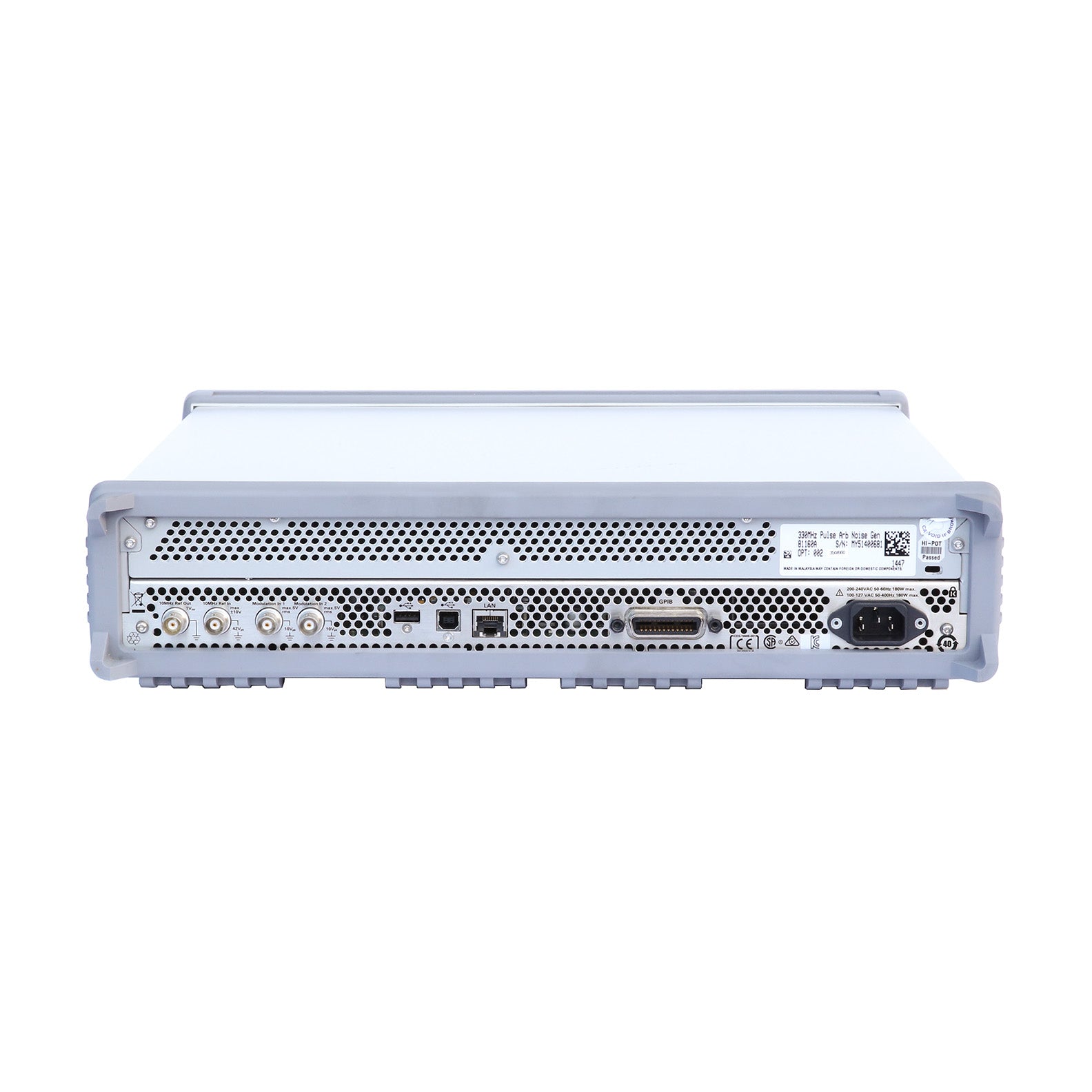

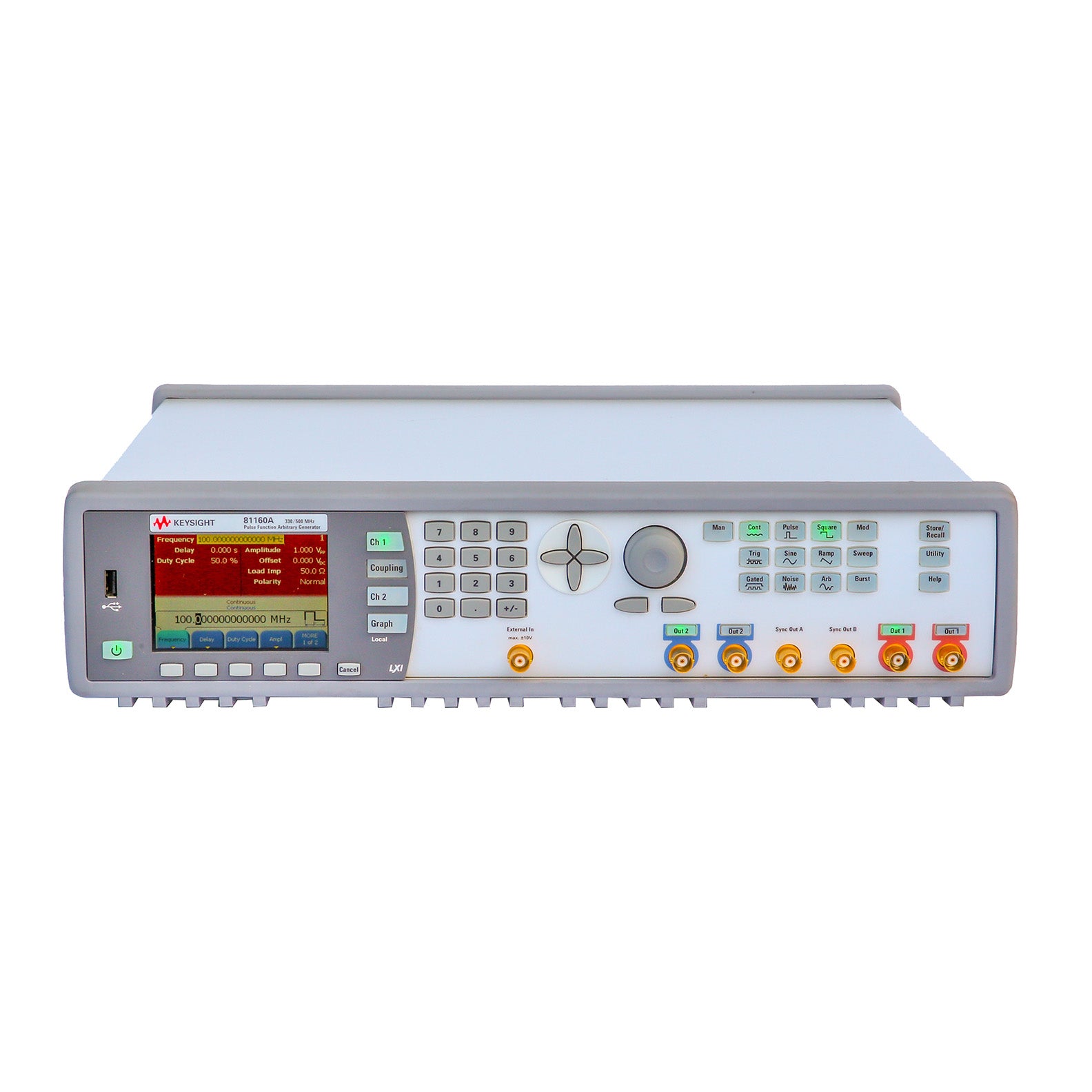

Keysight / Agilent 81160A 002 Pulse Function Arbitrary Noise Generator, 1 µHz to 330 MHz

Keysight / Agilent MPN: 81160A 002
REFURBISHED & TESTED 6-MONTH WARRANTY ALSO AVAILABLE FOR RENT

Price:
Sale price$26,995.00 USD
Stock:
In stock - Ships in 1 to 2 Business Days

Description

Keysight / Agilent 81160A 002 Pulse Function Arbitrary Noise Generator, 1 µHz to 330 MHz

The Keysight 81160A Pulse Function Arbitrary Noise Generator set the standard for the next generation of lab: for fast, accurate insight into your design or device under test. The 81160A offers:
––
Pulse generator with precise signals for performance verification and characterization function arbitrary generator
––
For versatile signal generation to optimize testing
––
For modulation to shape the signal the DUT needs
––
A noise generator to distort signals to build up worst case scenarios
––
An optional pattern generator to test in addition to analog, digital and mixed signal devices with ideal and real-world conditions

The Keysight 81160A Pulse Function Arbitrary Noise Generator is an indispensable contributor to accelerate ideal and real-world testing.

Option 002 = 2 Channels

Features:

  • 1 μHz - 330 MHz pulse generation with variable rise/fall time
  • 1 μHz - 500 MHz sine waveform output
  • 14-bit, 2.5 GSa/s arbitrary waveforms
  • Up to 256k samples deep arbitrary waveform memory per channel
  • Pulse, sine, square, ramp, noise and arbitrary waveforms
  • Noise, with selectable crest factor, and signal repetition time of 20 days
  • FM, AM, PM, PWM, FSK modulation capabilities or 2 channel, coupled and uncoupled
  • Differential outputs
  • Amplitude:
    50 Ω into 50 Ω: 50 mVPP to 5 VPP
    50 Ω into open: 100 mVPP to 10 VPP
  • Voltage window:
    50 Ω into 50 Ω: ±5 V
    50 Ω into open: ±10 V
  • Glitch-free change of timing parameters
    (delay, frequency, transition time, width, duty cycle)
  • Programming language compatible with Keysight 81101A, 81104A, 81105A, 81110A, 81130A and 81150A
  • LXI class C (rev 1.1) compliant
  • Optional pattern generator:
  • Ideal and arbitrary bit shaped pattern up to 330 Mbit/s (Option 330) or 660 Mbit/s (Option 660)
  • Two, three or four level signals
  • PRBS up to 231
  • 4 Mbit pattern memory for the 1-channel instrument and 2 Mbit per channel for the 2-channel instrument
  • Pass through pattern for combined and physical and protocol test up to 10 Mbit/s

Please see Datasheet for complete details and specifications.
