Description

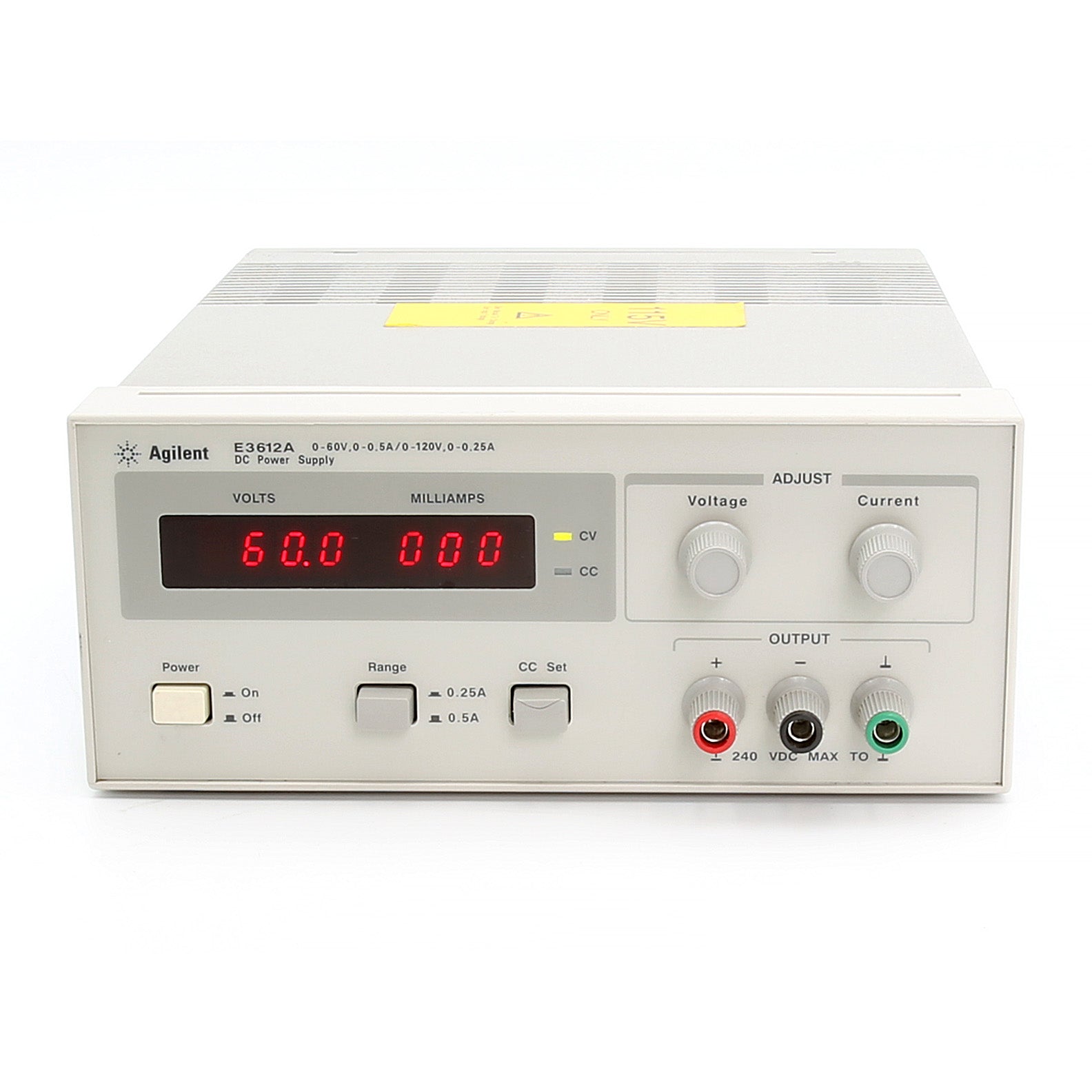

Keysight / Agilent E3612A DC Power Supply, Dual Range, 0 to 60 Vdc @ 0-0.5 A; or 0 to 120 Vdc @ 0-0.25 A, 30 W
The Agilent E3612A 30W single-output power supply features separate digital-panel meters for monitoring voltage and current simultaneously, giving you precise reading and control capability. The E3612A also features 10-turn potentiometers for accurate adjustment of voltage and current output settings.
Features:
- Voltage output: 0 to 60 Vdc @ 0-0.5 A; or 0 to 120 Vdc @ 0-0.25 A
- Load & line regulation: <0.01% + 2 mV
- Ripple & noise (v/i): <200 µVrms, <2 mVpp / <200 µArms, 1 mApp
- 30 W Single output, Dual range
- Constant voltage (CV) and Constant Current (CC) modes
- Digital voltage and current meters
- Low noise and excellent regulation
- 10 turn voltage and current adjust potentiometers
- 104 to 127 Vac; 47-63 Hz operation
- Weight: 8.4 lb; Size: 91 mm (3.6 in)H x 213 mm (8.4 in)W x 319 mm (12.6 in)D
Please see Datasheet for complete details and specifications.
Datasheets
