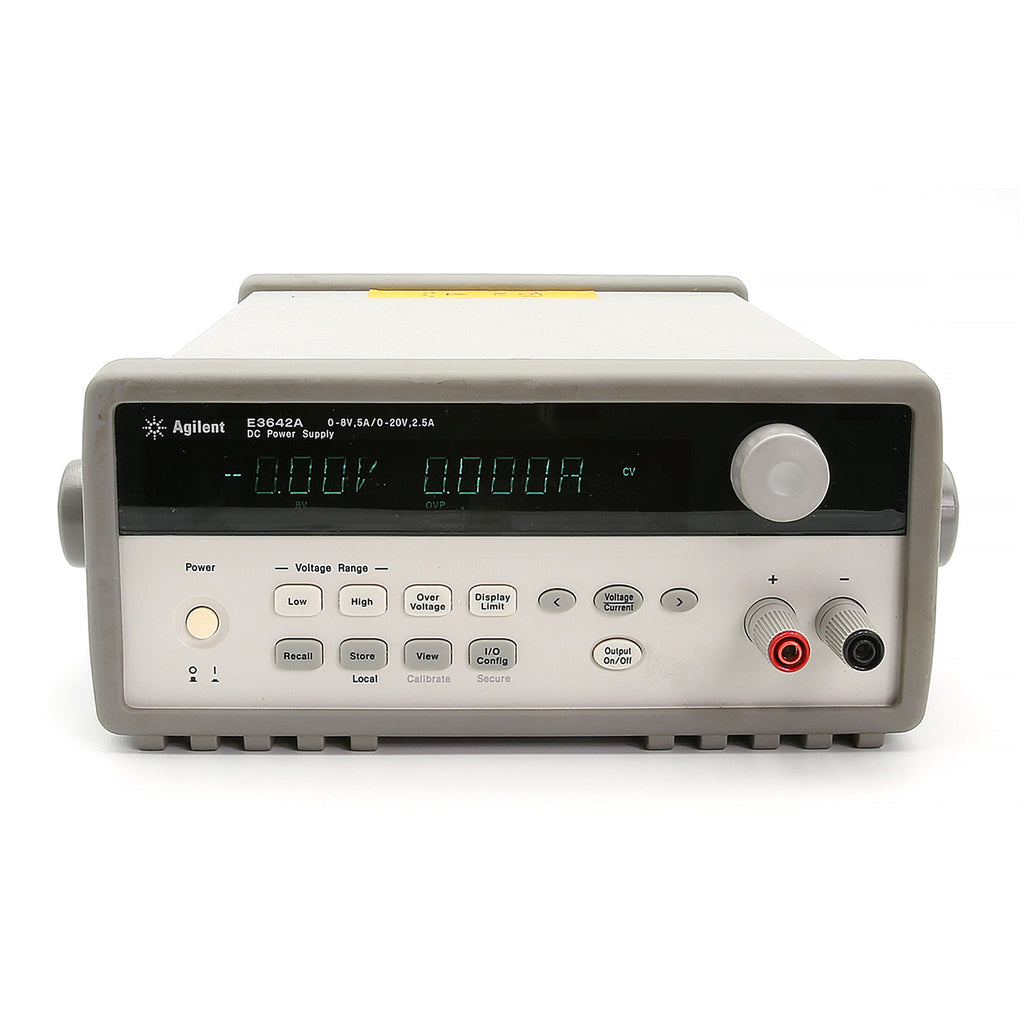

Keysight / Agilent E3642A 50W DC Power Supply, 8V, 5A or 20V, 2.5A
The E3642A is a 50W DC Power Supply, 8V, 5A or 20V, 2.5A with RS232 and GPIB.
- Voltage output: 0 to 8 Vdc @ 0-5 A or 0 to 20 Vdc @ 0-2.5 A
- Ripple & noise (voltage/rms peak-peak/current rms): <5 mVpp / 0.5 mVrms/<4 mArms
- Voltage programming accuracy: 0.05% +10 mV
- Load regulation: <0.01% + 3 mV; <0.01% + 250 µA
- GPIB and RS-232 interfaces
- 115 Vac ±10%; 47-63 Hz operation
- Weight: 13.89 lb; Size: 88.5 mm (3.48 in)H x 212.8 mm (8.38 in)W x 348.3 mm (13.7 in)D
Please see Datasheet for complete details and specifications.
