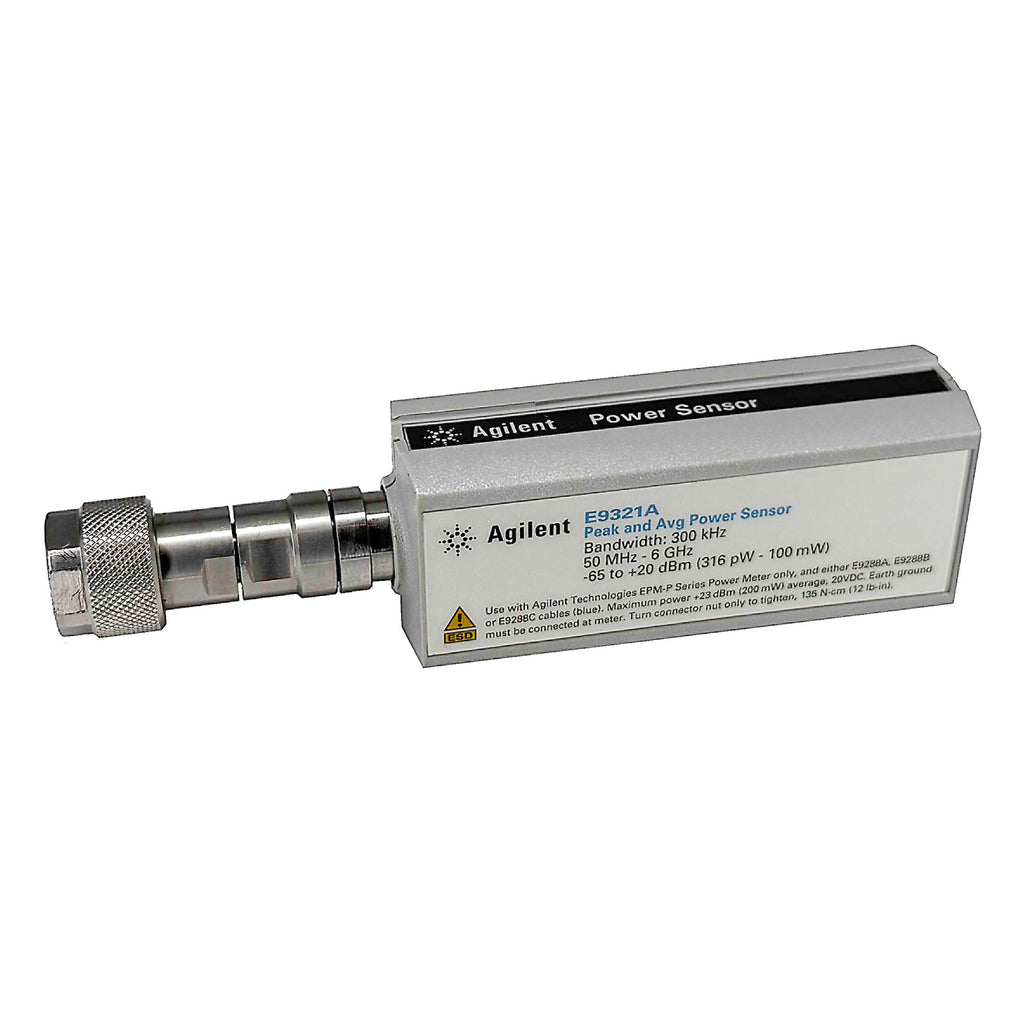

Keysight / Agilent E9321A Peak and Average Power Sensor, 10 MHz to 6 GHz, -65 to +20 dBm

Keysight / Agilent MPN: E9321A
REFURBISHED & TESTED 90-DAY WARRANTY ALSO AVAILABLE FOR RENT

Price:
Sale price$1,695.00 USD
Stock:
In stock - Ships in 1 to 2 Business Days

Description

Keysight / Agilent E9321A Peak and Average Power Sensor, 10 MHz to 6 GHz, -65 to +20 dBm

The E9321A wide dynamic range, 10 MHz to 6 GHz, Peak and Average Power Sensor is designed for use with the EPM-P series power meters. The E9320 sensors have two measurement modes:
Normal mode - (default mode for E9320 sensors) for peak, average and time-related measurements
Average only mode - is designed primarily for average power measurements on low-level signals. This mode is the only mode used with 8480 and N8480 series sensors, E-series CW sensors and E-series E9300 sensors.

Note: E9320 power sensors MUST be used with an E9288A, B or C cable. (not included)

Features:

  • Frequency Range: 10 MHz to 6 GHz
  • Power Range: Average only mode -65 dBm to +20 dBm; Normal Mode -50 dBm to +20 dBm
  • 300 kHz video bandwidth, ideal for GSM, EDGE and NADC applications
  • Fast measurement speed, up to 1000 corrected readings per second, via the GPIB
  • Wide dynamic range
  • Calibration factors, linearity, temperature and bandwidth correction stored in EEPROM
  • Precision type-N connector as standard
  • Operates with the EPM-P (E4416A/ 17A) series and P-Series (N1911A/ 12A) power meters
  • 1 year warranty
  • Shipping Weight: 2 lb

Please see Datasheet for complete details and specifications.
