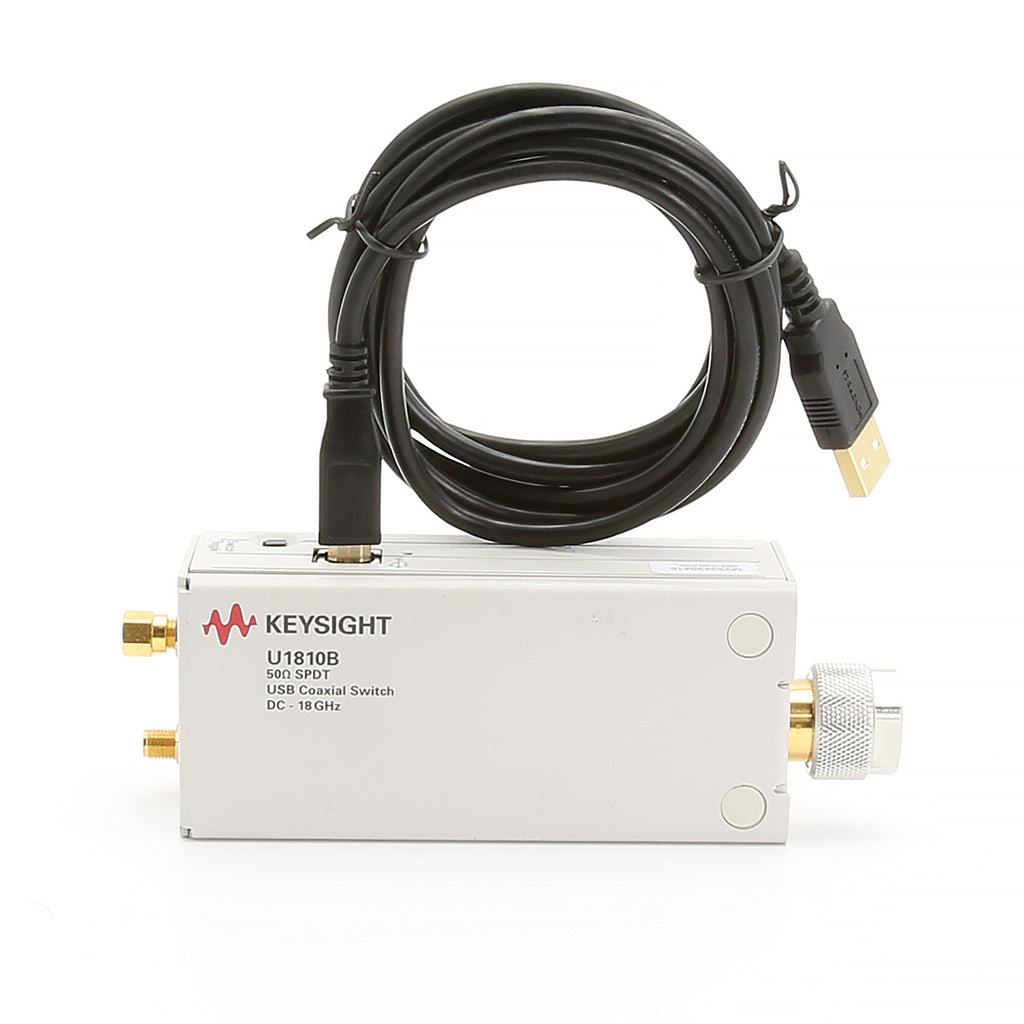

Keysight / Agilent U1810B USB Coaxial Switch, DC to 18 GHz, SPDT

Keysight / Agilent MPN: U1810B
REFURBISHED & TESTED 6-MONTH WARRANTY ALSO AVAILABLE FOR RENT

Price:
Sale price$795.00 USD
Stock:
Available - Please contact our office at 1-800-366-5240 for update.

Description

Keysight / Agilent U1810B USB Coaxial Switch, DC to 18 GHz, SPDT

The U1810B is USB-powered SPDT coaxial switch, operating from DC to 18 GHz. The unique combination of excellent RF performance with the convenience of USB connectivity presents an invaluable alternative for users to optimize the efficiency of their test systems. No additional power supply is required and the Type-N common input connector provides a rugged and robust connection with the instrument ports.

Features:

  • Frequency Range: DC to 18 GHz
  • SWR: DC to 4 GHz: < 1.15, 4 to 12.4 GHz: < 1.25, 12.4 to 18 GHz: < 1.40
  • Insertion loss (dB, max): 0.3 + (0.6/18)f, where f is specified in GHz
  • Isolation (dB, min): 90 - (30/26.5)f, where f is specified in GHz
  • Life: 2 million cycles
  • Switching time: 25 ms
  • Common Connector: Type N (male)
  • Port 1/Port 2 Connector: SMA (female)
  • USB plug-and-play eliminates the need for additional power adapters or drivers, simplifies complex switching and saves time
  • Excellent insertion loss repeatability of 0.03 dB to 1 million cycles, 0.1 dB to 2 million cycles, ensures accuracy and reduces calibration cycles
  • Long operating life of 2 million cycles, reduces cost-of-test and ensures reliability of the test system life expectancy
  • Excellent isolation typically > 70 dB at 18 GHz, minimizes cross-talk between channels to ensure signal integrity
  • Instant switch toggling via the push-button on the casing

Please see Datasheet for complete details and specifications.
