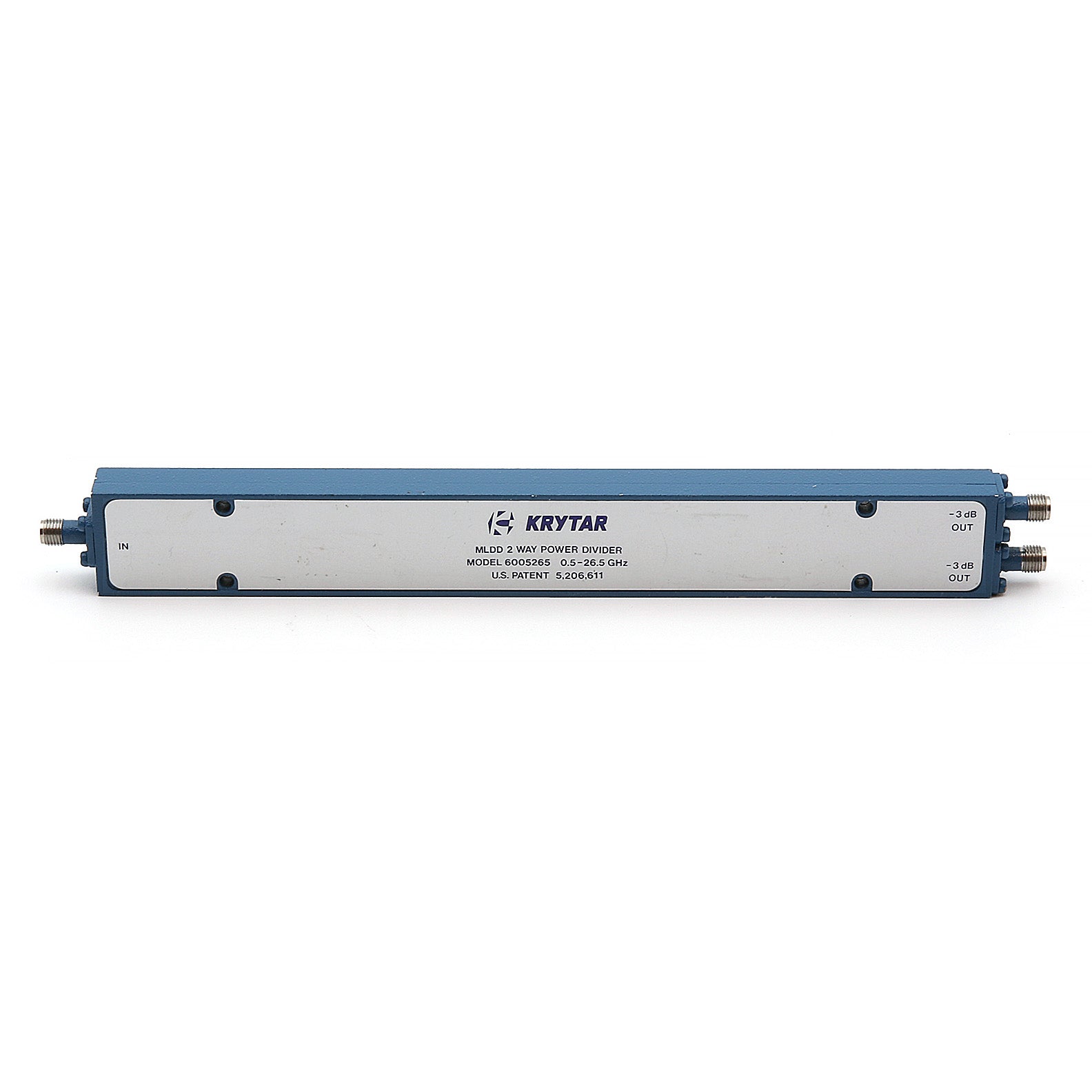

Krytar 6005265 MLDD 2-Way Power Divider, 0.5 to 26.5 GHz, 3.5mm (f)

Krytar 6005265 MLDD 2-Way Power Divider, 0.5 to 26.5 GHz, 3.5mm (f)

The 6005265 MLDD 2-Way Power Divider offers the widest frequency coverage in a single package on the market and provides superior performance. Targeting broadband electronic warfare (EW) systems and complex switch-matrix applications, for example, KRYTAR has used its proprietary design to produce a wide assortment of matched-line directional dividers (MLDD) with ultra-high performance over a broadband frequency range.

Features:

• Frequency Range: 0.5 to 26.5 GHz
• VSWR: 1.45 0.5-18 GHz, 1.60 18-26.5 GHz
• Insertion Loss: 1.50 dB 0.5-18 GHz, 1.90 dB 18-26.5 GHz
• Isolation: > 19 dB 0.5-26.5 GHz
• Average Power: 10 W
• Connectors: 3.5mm (f)

Please see Datasheet for complete details and specifications.
