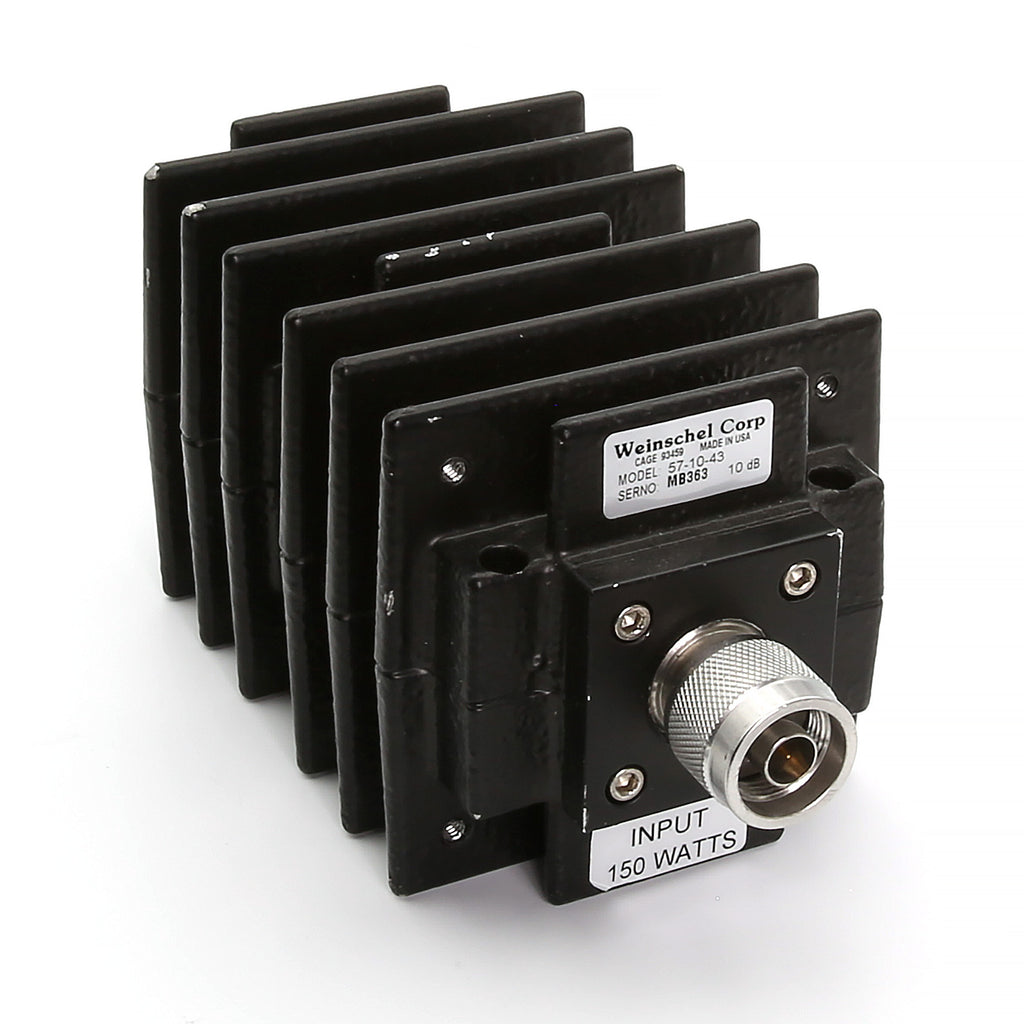

API / Weinschel Model 57 Coaxial Attenuator, dc to 6.0 GHz, 150 W
The Model 57 is a dc to 6.0 GHz, High Power Fixed Coaxial Attenuator. The Model 57 is configured with one Type N(f) and one Type N(m). Available in 10 dB, 20, 30 dB.
- Frequency Range: dc - 6.0 GHz
- Attenuation: 3, 6, 10, 20, 30 dB
- Power rating: 150 W
- 50 ohm impedance
- SWR (max.) 1.15
- Connectors: one Type N(f) and one Type N(m)
- Shipping weight: 12 lb
Please see Datasheet for complete details and specifications.
