Electronics & Innovation 1040L RF Amplifier, 10 kHz to 5 MHz, Class AB, 400 W, Refurbished

Electronics & Innovation 1040L RF Amplifier, 10 kHz to 5 MHz, Class AB, 400 W,  Refurbished

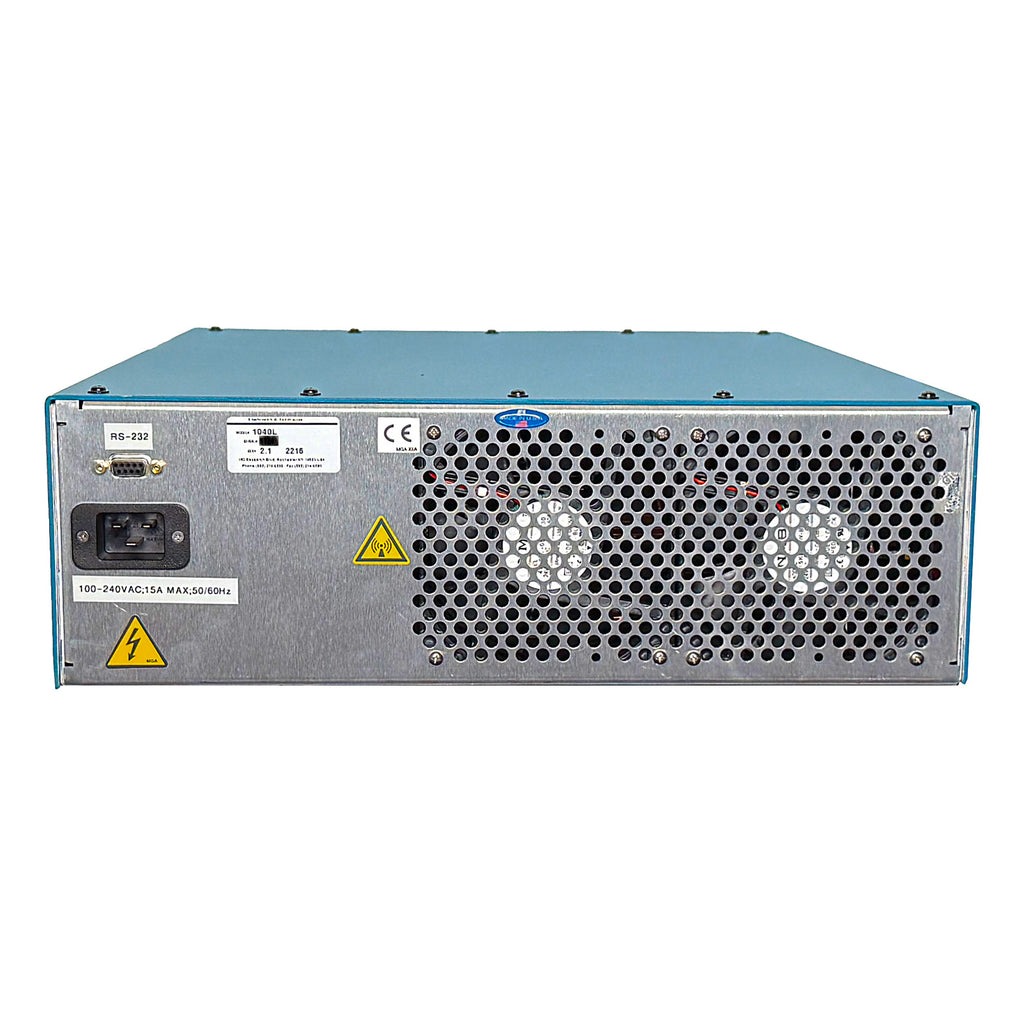

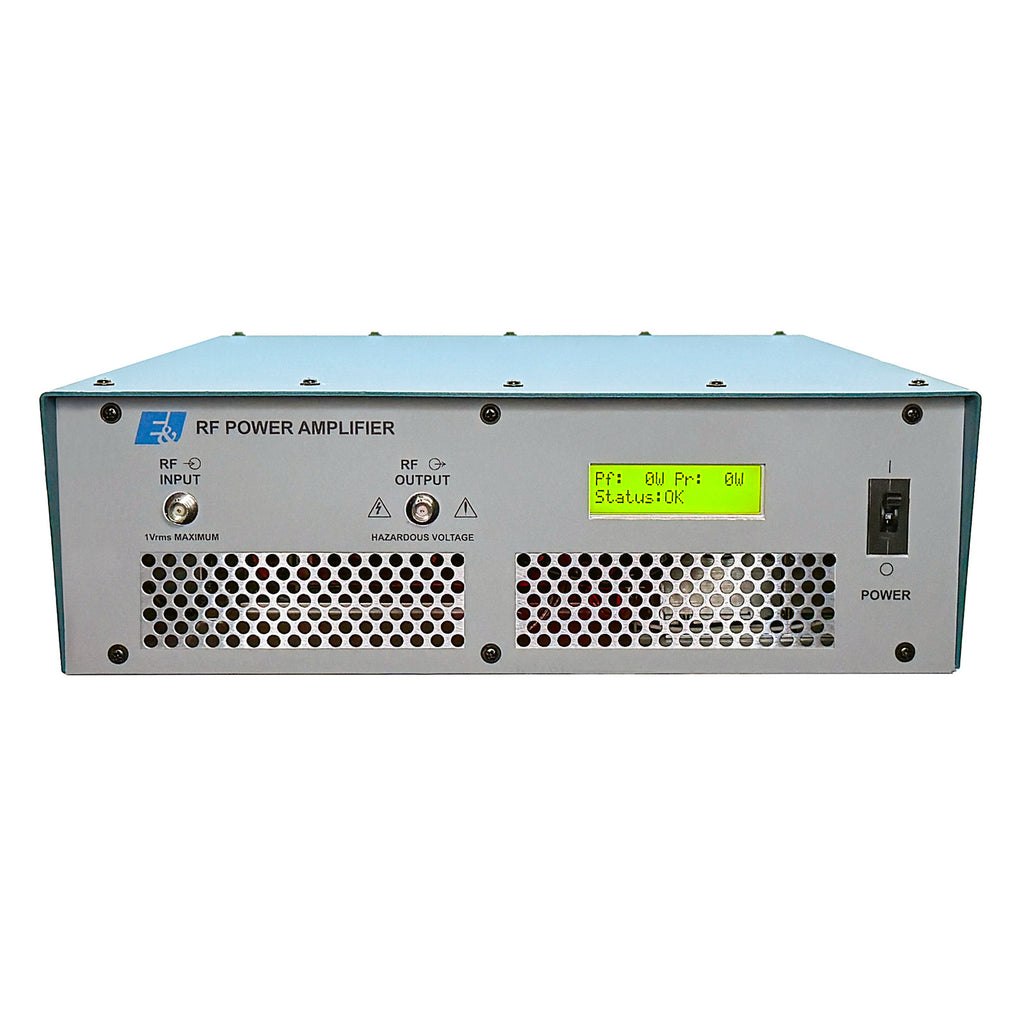

The E&I 1040L RF amplifier provides 400 watts from 10 kHz to 5 MHz. It is a quasi linear class AB design. It has a nominal 55 dB gain. The unit sits in a standard 19" rack mount 3U high. It has an integral power supply capable of operation at 115 or 220 VAC, 50-60 Hz.

Features:

• Class of Operation: Class AB
• Frequency Range: 10 kHz to 5 MHz
• Rated Power Output: 400 W
• Power Gain: 55 dB
• Gain Flatness: ±1 dB
• Input Power for Rated Output: 1.3 mW / 0.11 dBm
• Input Impedance: 50 Ohms
• Output Impedance: 50 Ohms
• Size (H x W x D): 5.3" x 16.5" x 18.4" (134.5 mm x 420 mm x 467 mm)
• Weight: 45 lbs (20.5 kg)
• 104 - 240 Vac; 47-63 Hz

Please see the Datasheet for complete details and specifications.
