AEMC 6555 Megohmmeter, 40 V to 15 kV, 10 kΩ to 30 TΩ, 2130.32

AEMC 6555 Megohmmeter, 40 V to 15 kV, 10 kΩ to 30 TΩ

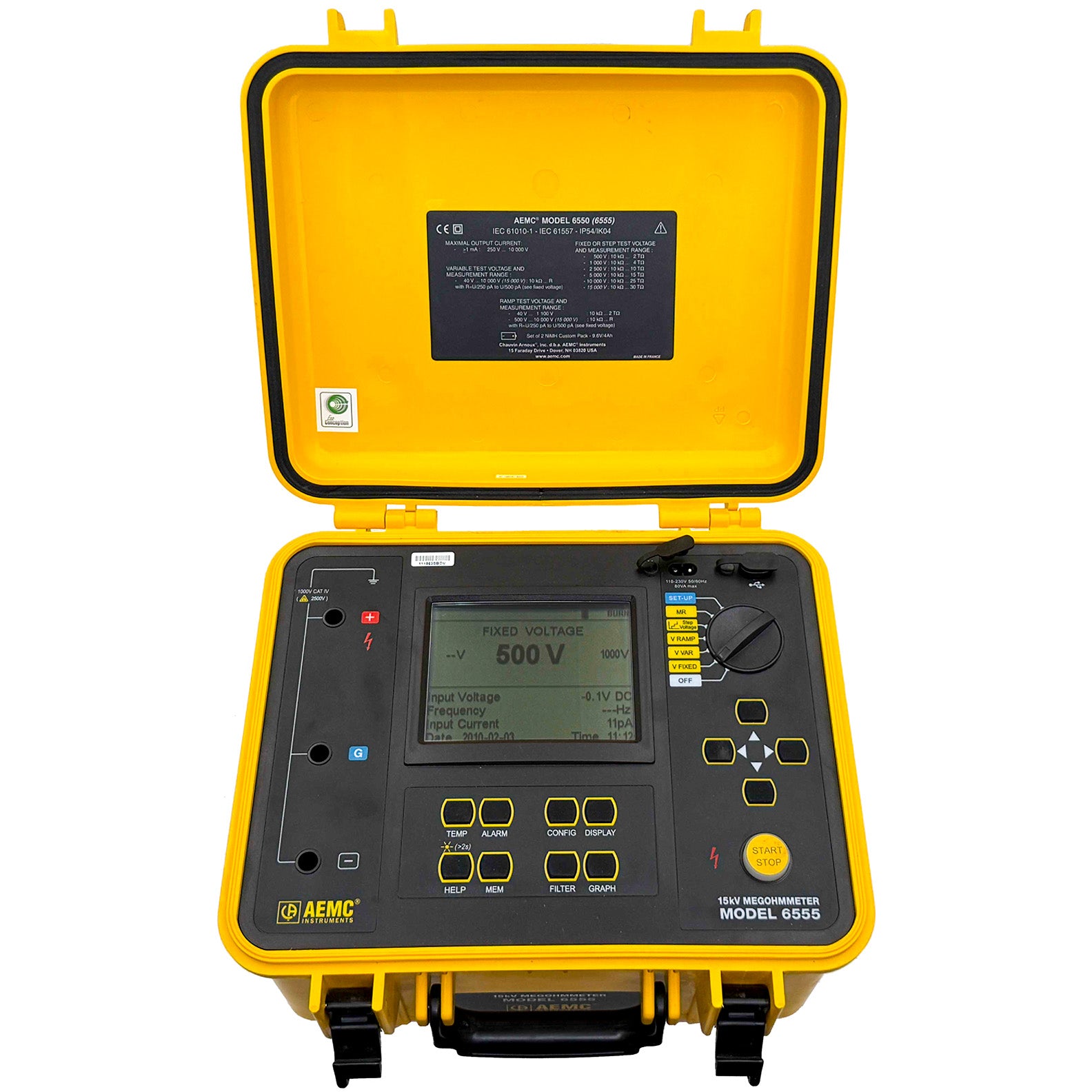

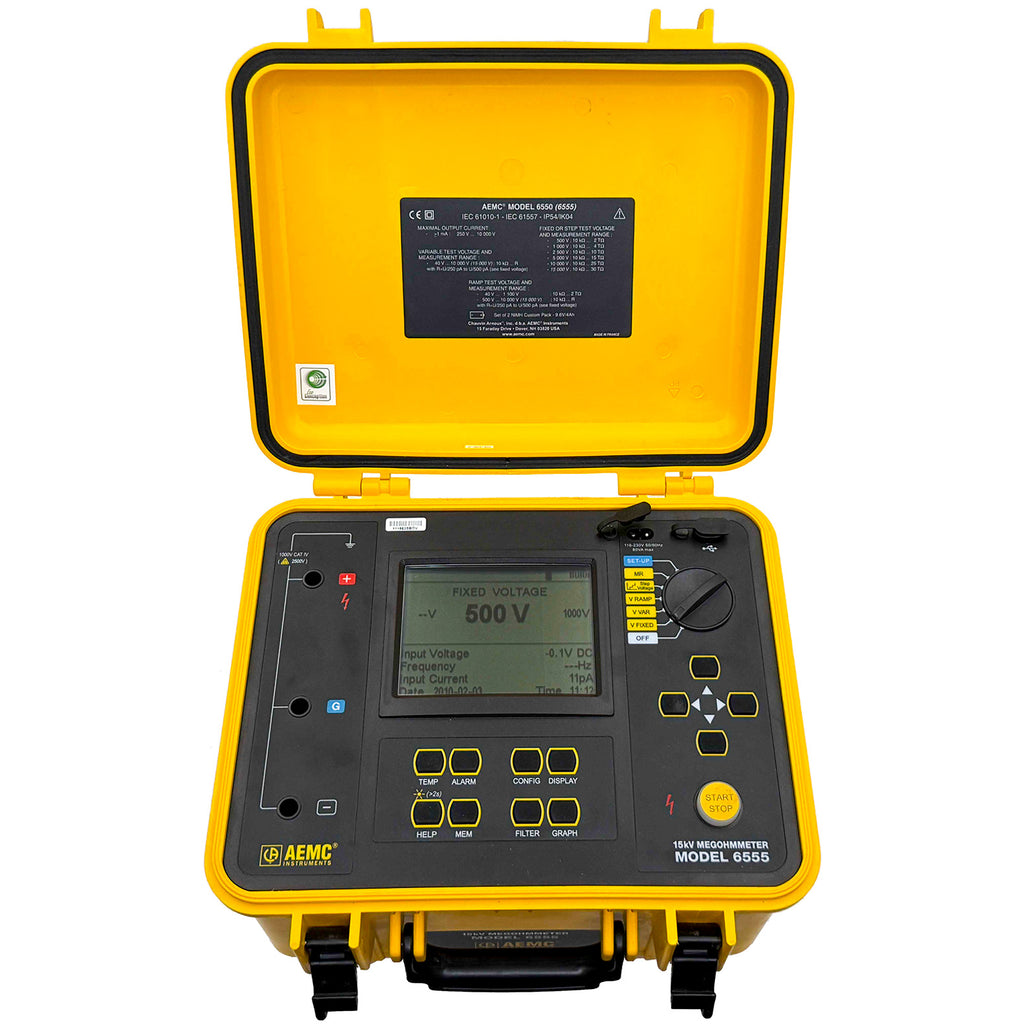

The AEMC 6555 Megohmmeter is a high-end portable measuring instrument for measuring a wide range of electrical insulation resistance values on cables and devices operating at high voltage. It is the only fully automated 15,000 V graphical insulation tester. The model 6555 is packaged in a rugged case that is IP65 when closed. Test results and configuration information are displayed on a graphical LCD screen and can be exported via DataView^®. This megohmmeter can operate on battery or AC power.

The Model 6555 also offers the ability to program up to three step voltage profiles, 40 to 15,000 V, each containing up to ten steps. There are also three ramp profiles and three programmable test voltages in addition to the standard fixed voltages of 500, 1000, 2500, 5000, 10,000, and 15,000 V.

Features:

• Insulation resistance up to 30 TΩ @ 15 kV
• Fixed or programmable test voltage from 40 V to (10/15) kV
• Wide measurement range from 10 kΩ to (25/30) TΩ
• 5 mA short-circuit current
• Step and Ramp voltage testing
• Automatic calculation of DAR/PI/DD/∆R (ppm/V) ratios
• Large, backlit graphical LCD screen with digital display, bargraph and R(t)+V(t), I(t) and I(V) graphs
• Multiple test modes: voltage Ramp and Step with Burn-In, Early-Break, and I-Limit modes
• Three filter settings to optimize measurement stability
• Calculation of R at a reference temperature
• Storage of 80,000 measurements
• Includes DataView® software for data retrieval, real-time display, analysis and report generation
• Optically-isolated USB communication for transfer onto PC and report generation with DataView® software

• Can operate from AC mains power or battery power
• NiMH battery: ≥2 hours at 15,000 V (insulation test)
• Input Power: Internal (2) rechargeable 9.6 V NiMH battery pack; External 90-260 Vac, 50/60 Hz
• Weight: 6.2 kg (13.7 lbs); Size: L 340 mm x W 300 mm x H 200 mm

Please see the Datasheet for complete details and specifications.
