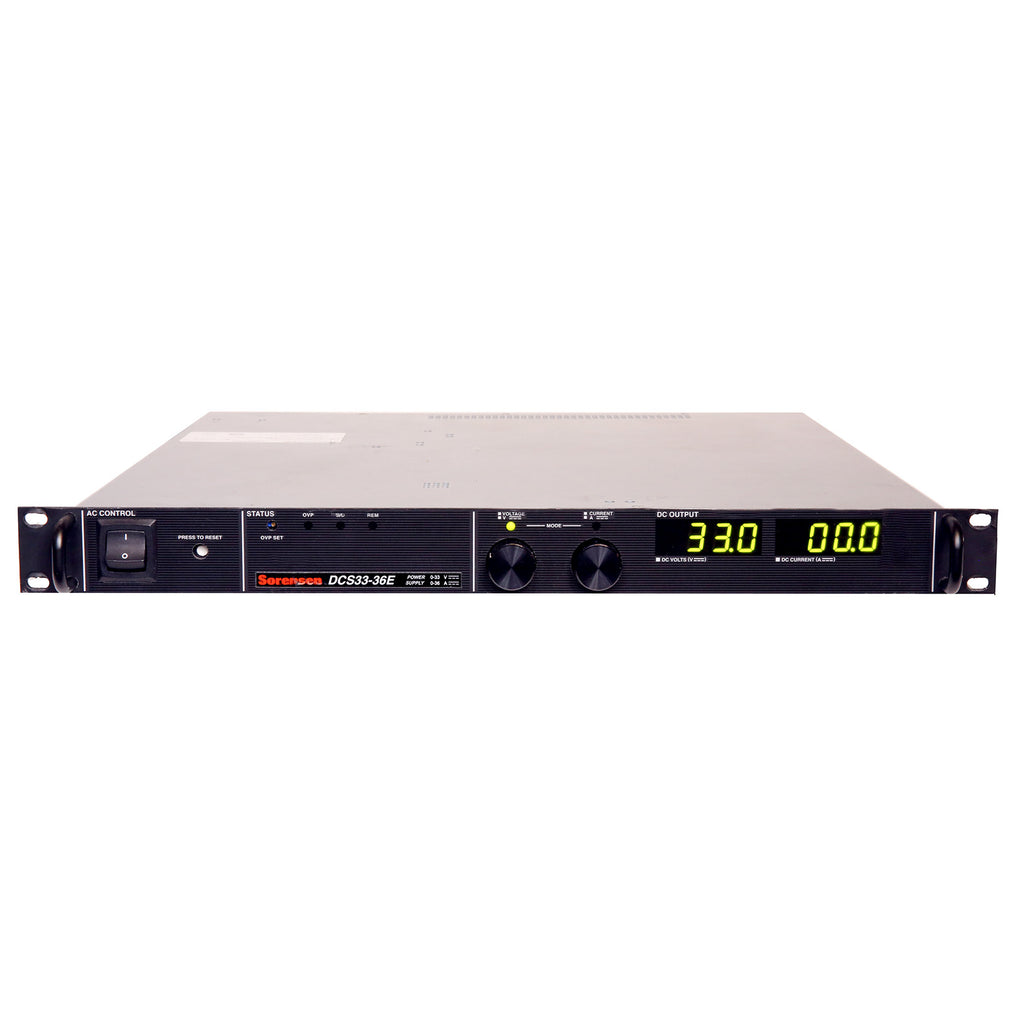

Ametek / Sorensen DCS 33-36E Programmable DC Power Supply, 0 to 33 Vdc, 0 to 36 A

Ametek MPN: DCS 33-36E
REFURBISHED & TESTED 6-MONTH WARRANTY ALSO AVAILABLE FOR RENT

Price:
Sale price$1,395.00 USD
Stock:
Available - Please contact our office at 1-800-366-5240 for update.

Description

Ametek / Sorensen DCS 33-36E Programmable DC Power Supply, 0 to 33 Vdc, 0 to 36 A

The Sorensen DCS Series is ideally suited for a wide range of applications requiring DC power in a small form factor. Applications range from manufacturing test and burn-in of automotive components, avionics electronics, telecommunications and consumer products to beam steering, process control and laboratory R&D use.

The DCS family provides a highly reliable power platform and includes the following features:

  • Easy-to-use front panel with 10-turn potentiometers to adjust voltage and current settings that are displayed simultaneously
  • LEDs to indicate overtemperature
  • Remote programming
  • Shutdown and over voltage protection
  • Status and constant-voltage/current mode operation

Features:

  • Output: 0 to 33 V, 0 to 36 A
  • Output Power: 1.2 kW
  • Simultaneous digital display of both voltage and current
  • Automatic mode crossover into current or voltage mode
  • Ten turn potentiometer voltage and current controls permit high resolution setting of the output voltage and current from zero to the rated output
  • Flexible output configuration: multiple units can be connected in parallel or series to provide increased current or voltage
  • High frequency switching technology allows high power density, providing increased power output in a small, light package
  • Remote sensing to compensate for losses in power leads
  • Adjustable Over-Voltage Protection (OVP)
  • External TTL, AC or DC shutdown
  • Remote voltage, resistive, current limit and OVP programming with selectable programming constants
  • External indicator signals for remote monitoring of OVP status, local/remote programming status, thermal shutdown, and output voltage and current
  • 100-132/200-250 Vac selectable input voltage, 47-63 Hz, single phase operation
  • Weight: 19 lb; Size: 43 mm (1.72 in)H x 483 mm (19.0 in)W x 445 mm (17.52 in)D

Please see Datasheet for complete details and specifications.
