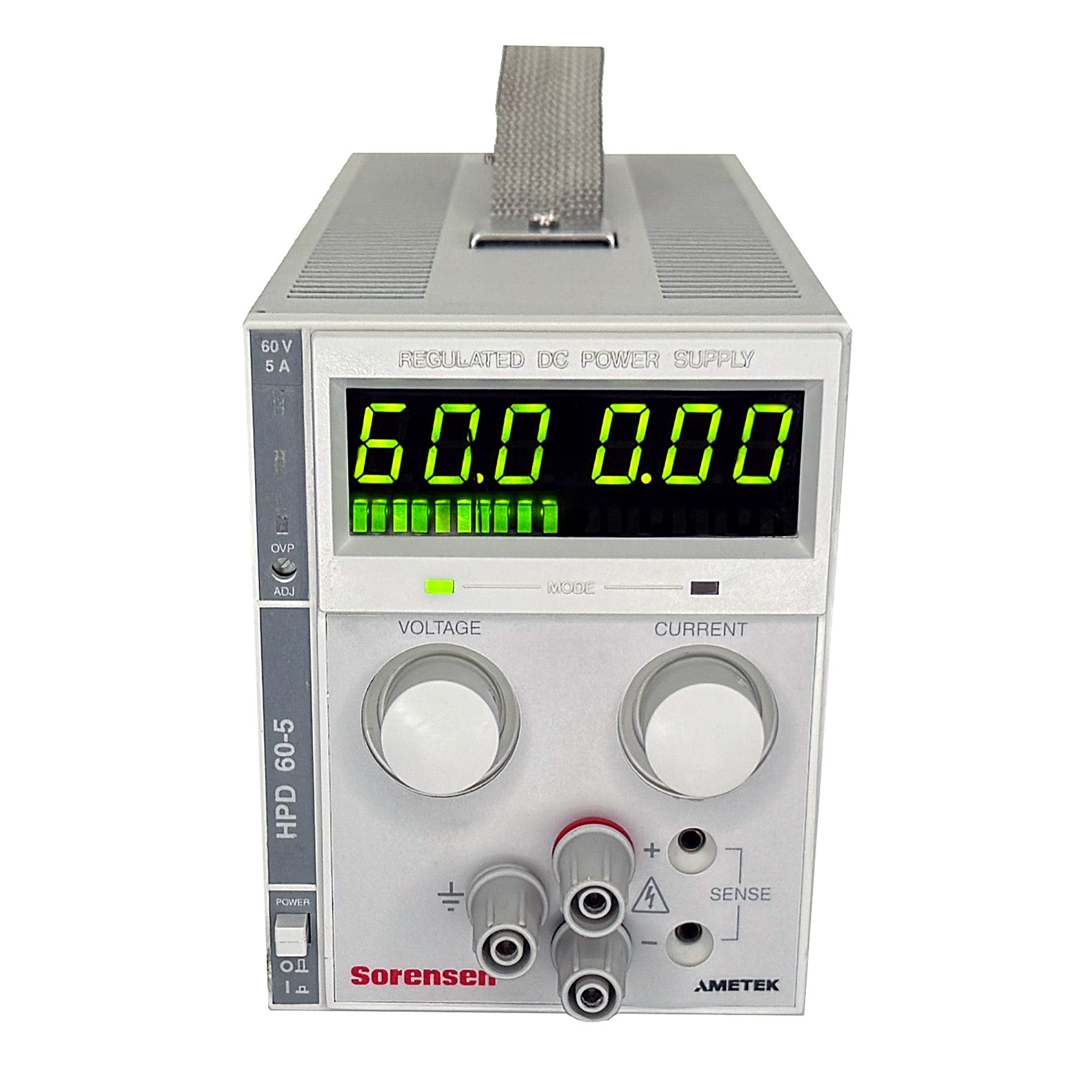

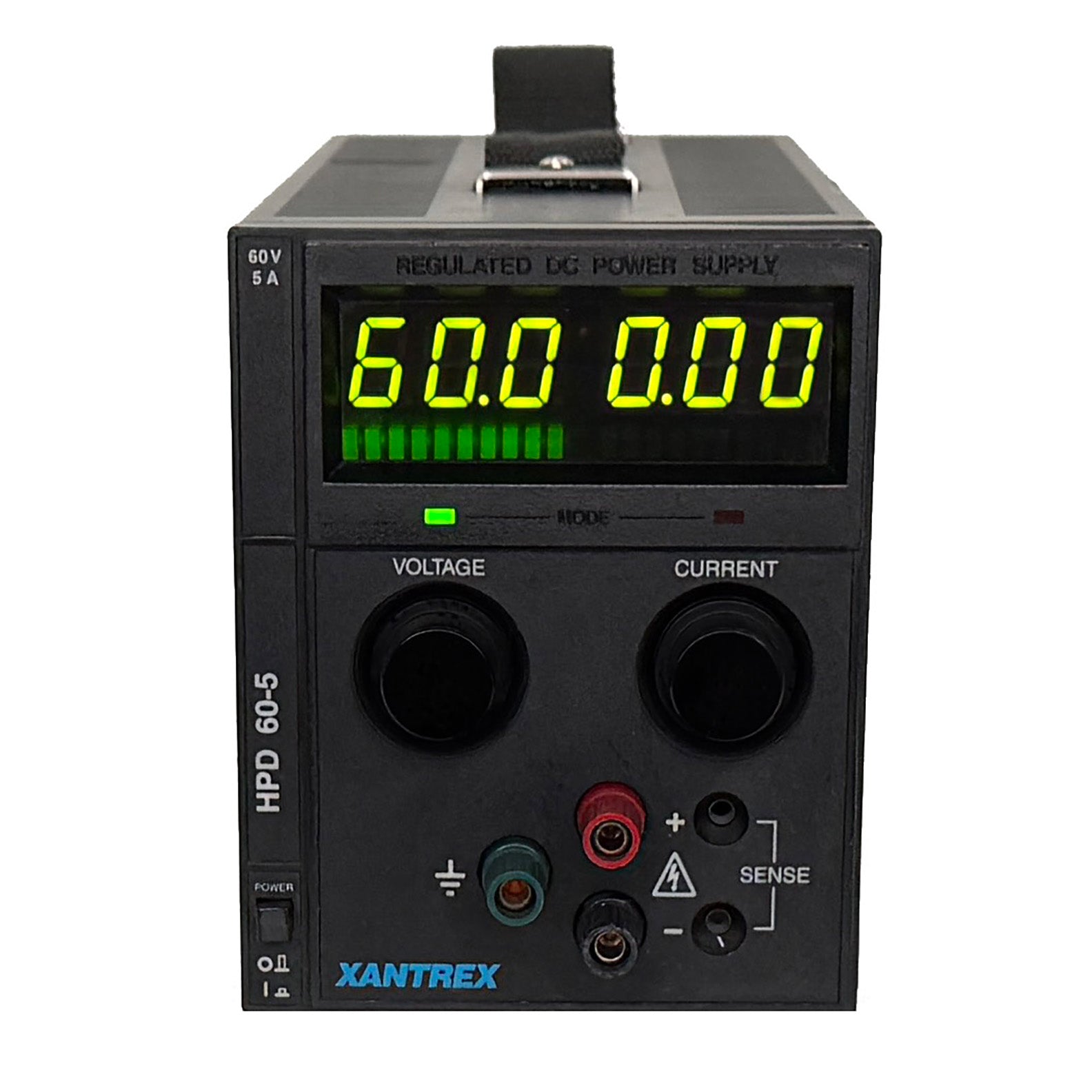

Ametek / Sorensen / Xantrex HPD 60-5 DC Power Supply, 0 to 60 Vdc, 0 to 5 A

Ametek / Sorensen / Xantrex HPD 60-5 DC Power Supply, 0 to 60 Vdc, 0 to 5 A

The Sorensen High Power Density (HPD) Series provides 300 watts of reliable DC power in a quarter-rack wide unit. The HPD Series power supplies are ideal for benchtop, ATE and OEM applications where a wide adjustment of output voltage or current is required in a compact unit.

The HPD series uses switch-mode technology combined with linear post regulation to provide performance comparable to an all-linear design. The HPD series features excellent line and load regulation with low noise and good transient response. The series is available in a single unit for benchtop use. For systems applications, multiple units can be rack-mounted in configurations of up to four independent 300-watt outputs.

Optional MRA adds RS-232 Interface

Features:

• Output: 0 to 60 V, 0 to 5 A
• Low noise and ripple
• Excellent line/load regulation
• Constant voltage or constant current operation with automatic crossover and mode indication
• Current limit

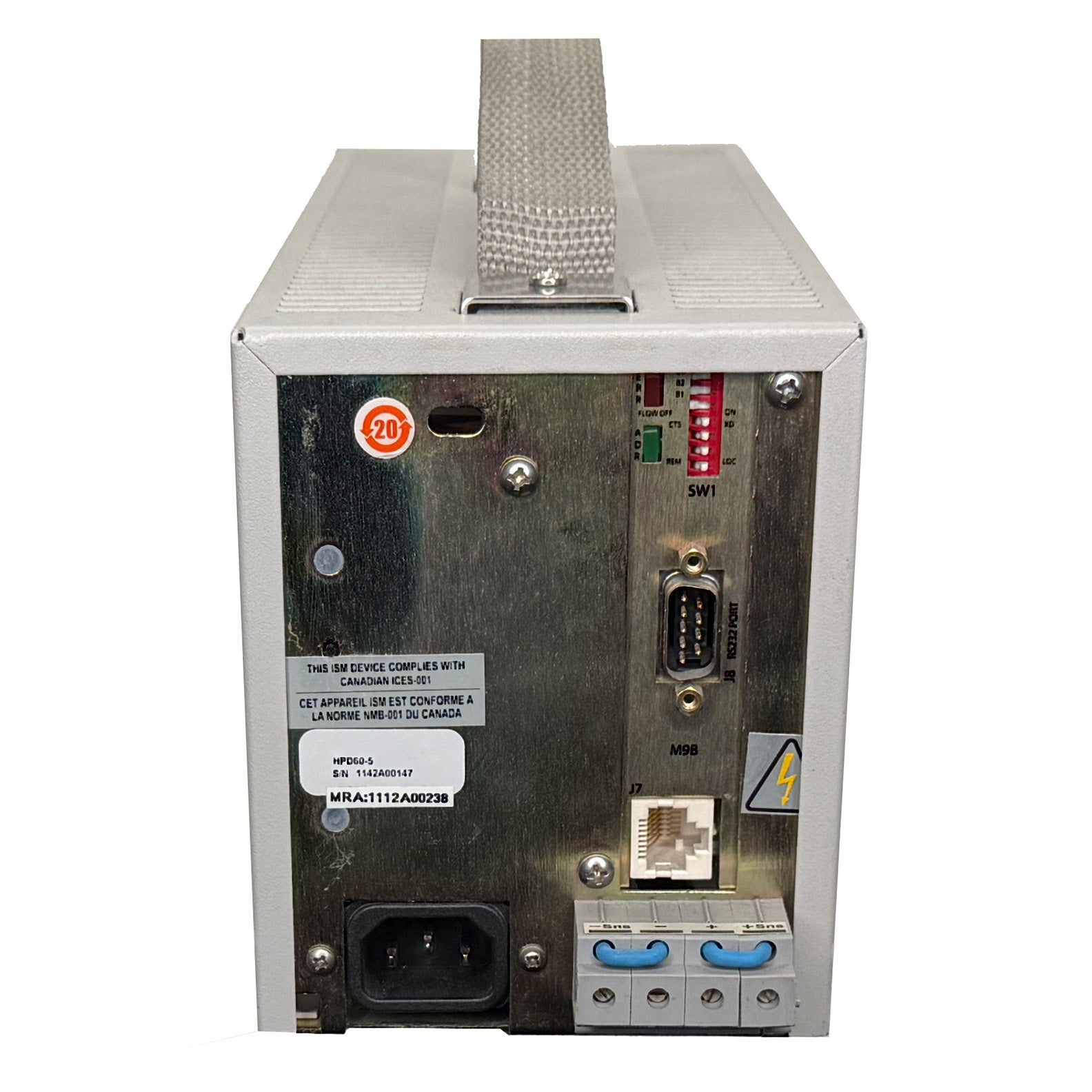

• Front and rear outputs
• Remote sense
• LabVIEW® and LabWindows® drivers
• 115 Vac ±10%; 47-63 Hz; single phase operation
• Weight: 7.7 lb; Size: 134.7 mm (5.2 in)H x 109.2 mm (4.2 in)W x 297 mm (11.7 in)D
