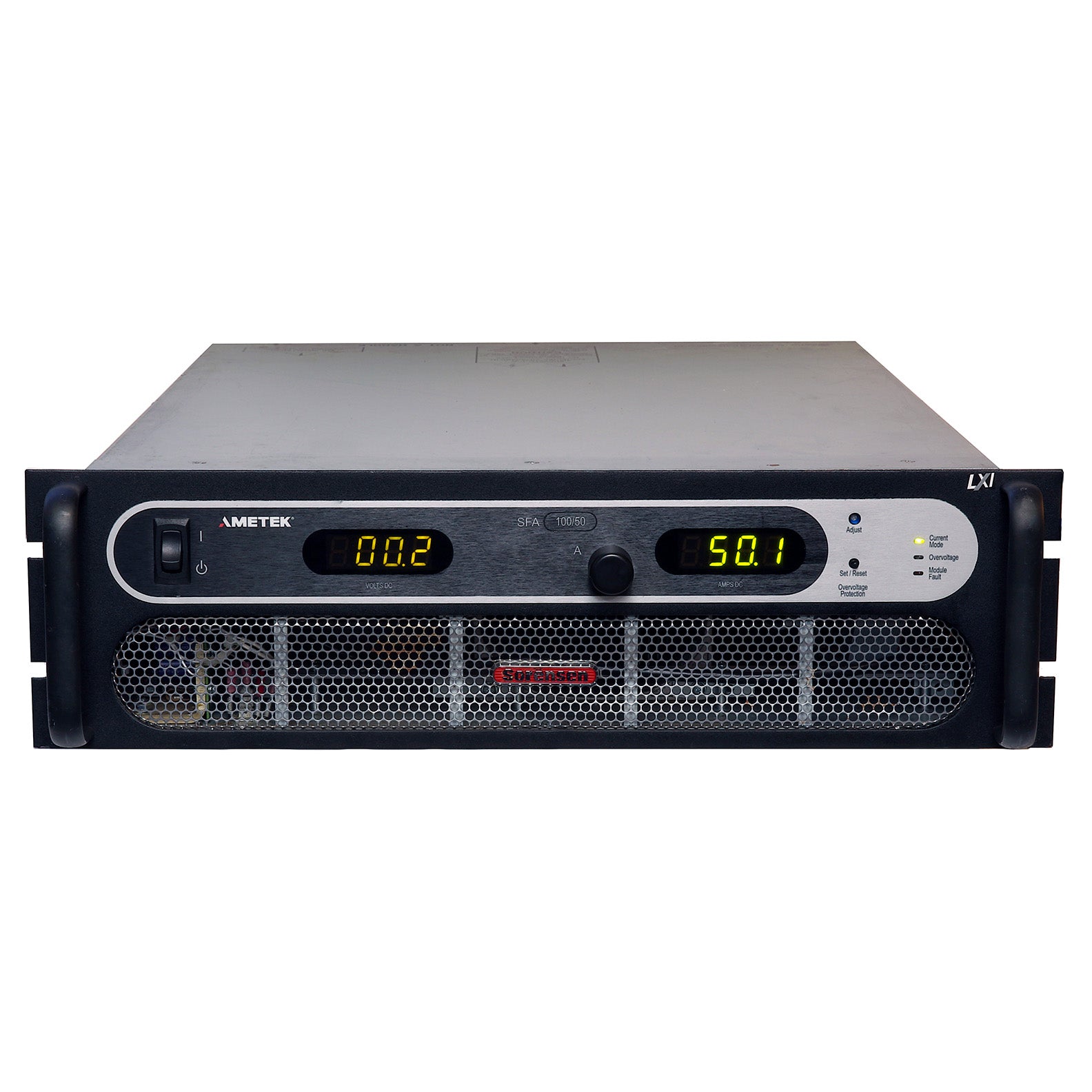

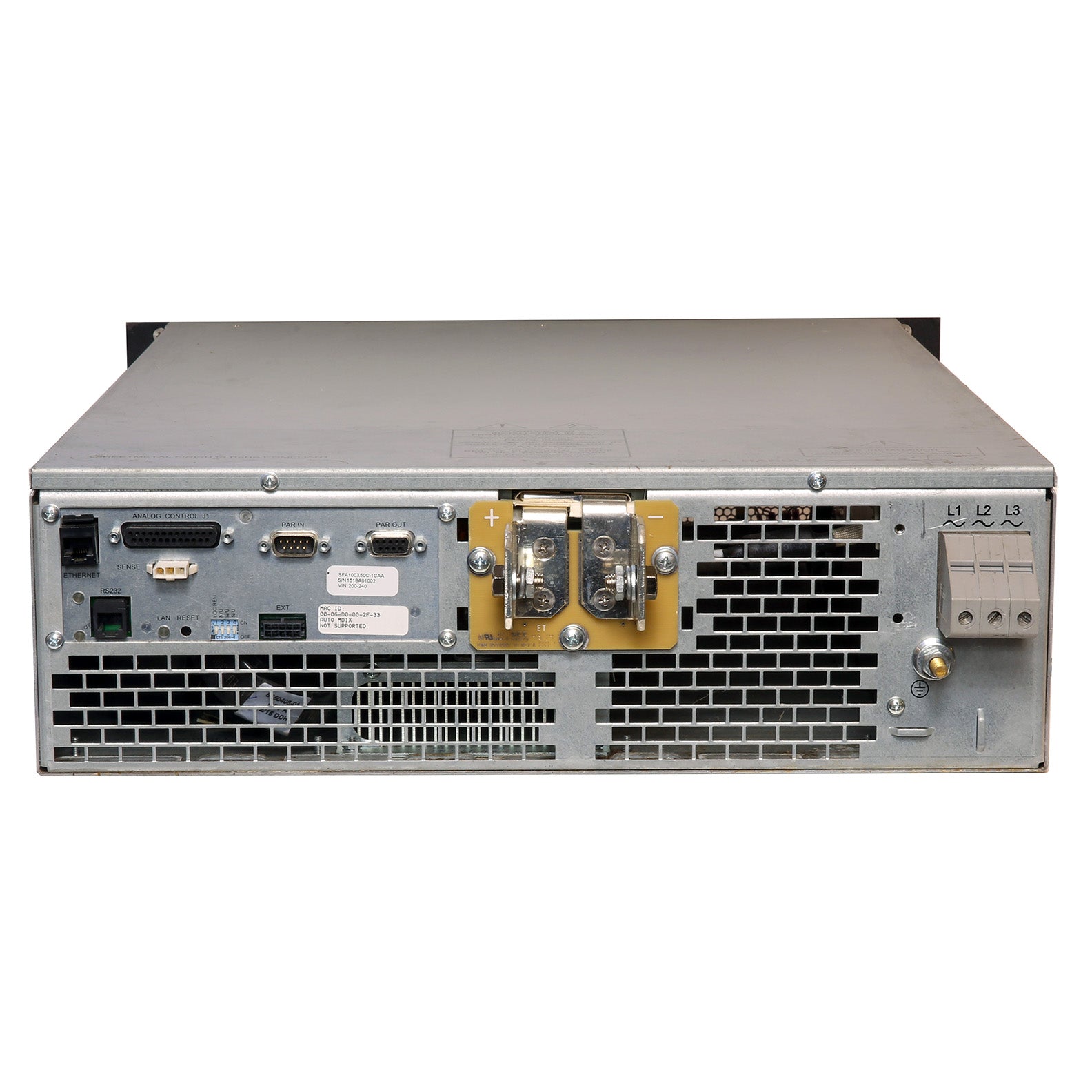

Ametek / Sorensen SFA100X50C-1CAA High Slew Rate DC Current Source, 100 Vdc, 0 to 50 A

Ametek / Sorensen SFA100X50C-1CAA High Slew Rate DC Current Source, 100 Vdc, 0 to 50 A

The SFA family builds on the industry-leading Sorensen SGA series to provide a high-power current source for laser diode applications. State-of-the-art high-power laser diodes require well-regulated current control to avoid catastrophic damage. Under anomalous operating conditions, excessive stored energy in the output circuit of the power supply can result in peak stresses that can permanently damage the device. Providing a constant current regulation mode only, the SFA’s low stored energy output minimizes damage potential for sensitive devices as well as enabling a current slew rate of up to 400 A/msec.

Features:

• Current Control Only
• Output Voltage: 100 V
• Output Current: 0 to 50 A
• Rated Power: 5 kW
• Current Ripple: 1% p-p of full-scale current
• Load Regulation (no load to full load, nominal AC input): Current 0.1% of rated output current.
• LAN / RS-232 Interfaces
• 187 - 442 Vac Input - Three Phase (3 wire + ground), 47-63 Hz
• Weight: 80 lb; Size: 133 mm (5.25 in)H x 483 mm (19.0 in)W x 638 mm (25.12 in)D

Please see Datasheet for complete details and specifications.
