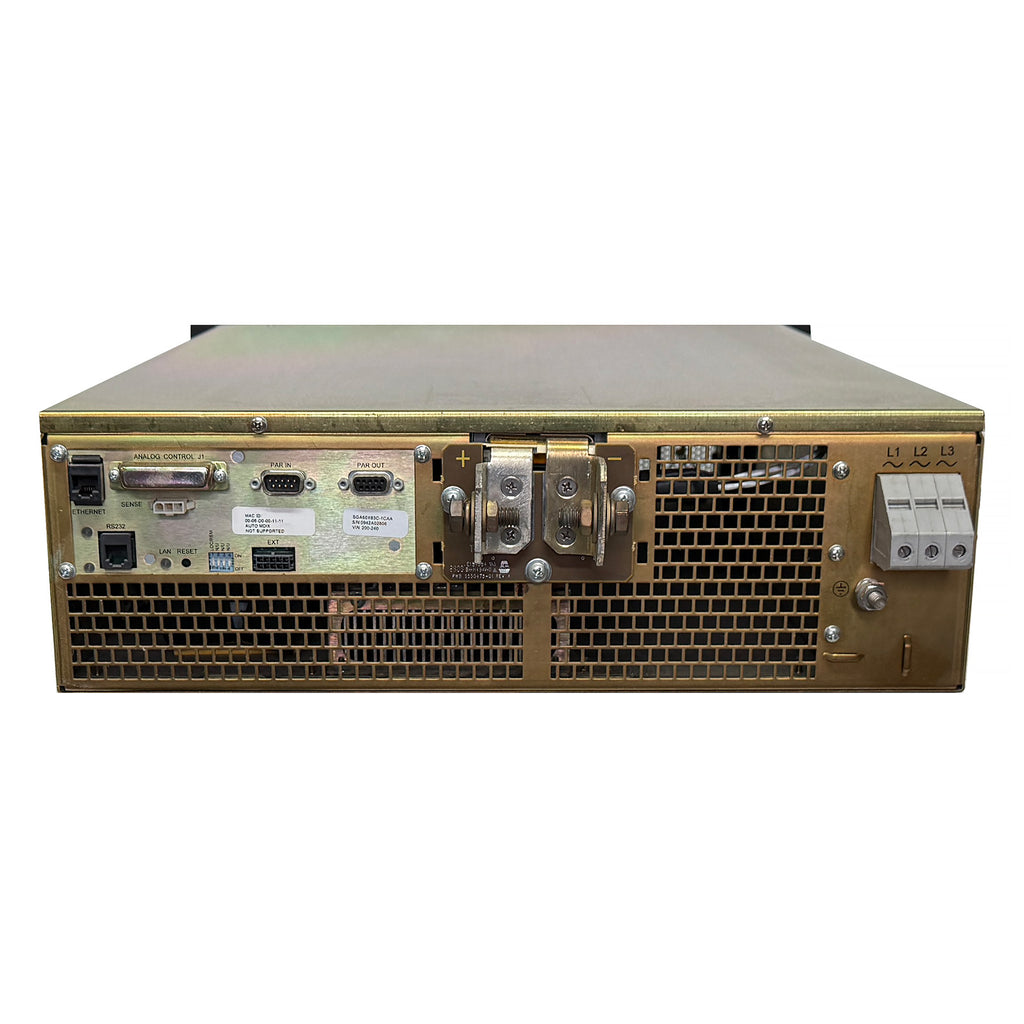

Ametek / Sorensen SGA60X83C Programmable Precision High Power DC Power Supply, 0 to 60 Vdc, 0 to 83 A

Ametek / Sorensen SGA60X83C-1CAA Programmable Precision High Power DC Power Supply, 0 to 60 Vdc, 0 to 83 A

The Sorensen SG Series represents the next generation of high-power programmable DC power supplies. The SG Series is designed for exceptional load transient response, low noise, and the highest power density in the industry. With a full 5 kW output in a 3u package, the SG leads the industry in power density. The power density is enhanced by a stylish front air intake, allowing supplies to be stacked without any required clearance between units.

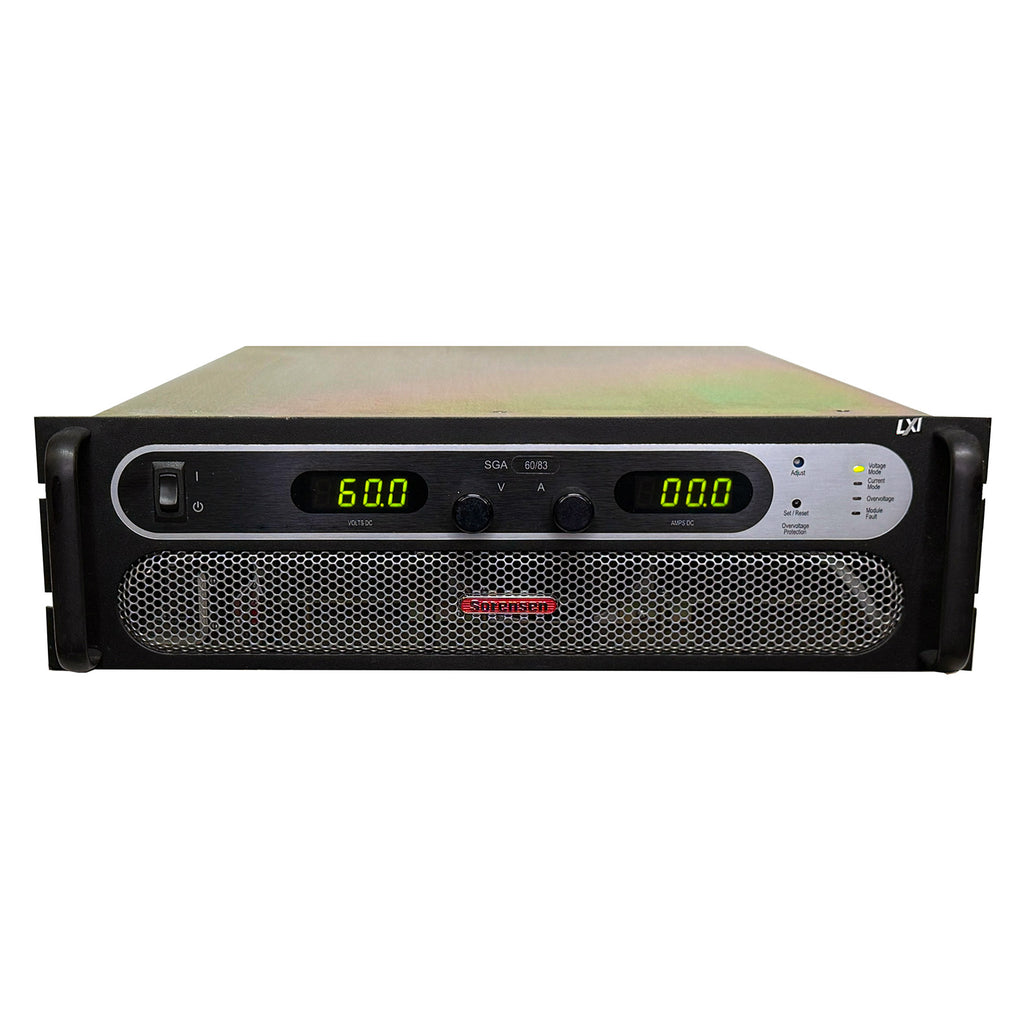

The SGA (Sorensen General Purpose Analog) with its industry-leading performance, is available for customers requiring simple front panel analog controls or external control. The SGA provides essential features like 10-turn potentiometers for setting voltage and current, 3.5-digit LED readout, plus front panel over-voltage protection (OVP) preview/adjustment and reset.

Optional 1C adds Ethernet and RS-232

Features:

• Output Voltage: 0 to 60 V
• Output Current: 0 to 83 A
• Rated Power: 5 kW
• Ripple & Noise - rms (20 Hz-300 kHz): 20 mV
• Ripple & Noise - p-p (20 Hz-20 MHz): 75 mV
• 187 - 242 Vac Input - Three Phase (3 wire + ground), 47-63 Hz
• Weight: 60 lb; Size: 133 mm (5.25 in)H x 483 mm (19.0 in)W x 713.5 mm (28.09 in)D

Please see the Datasheet for complete details and specifications.
