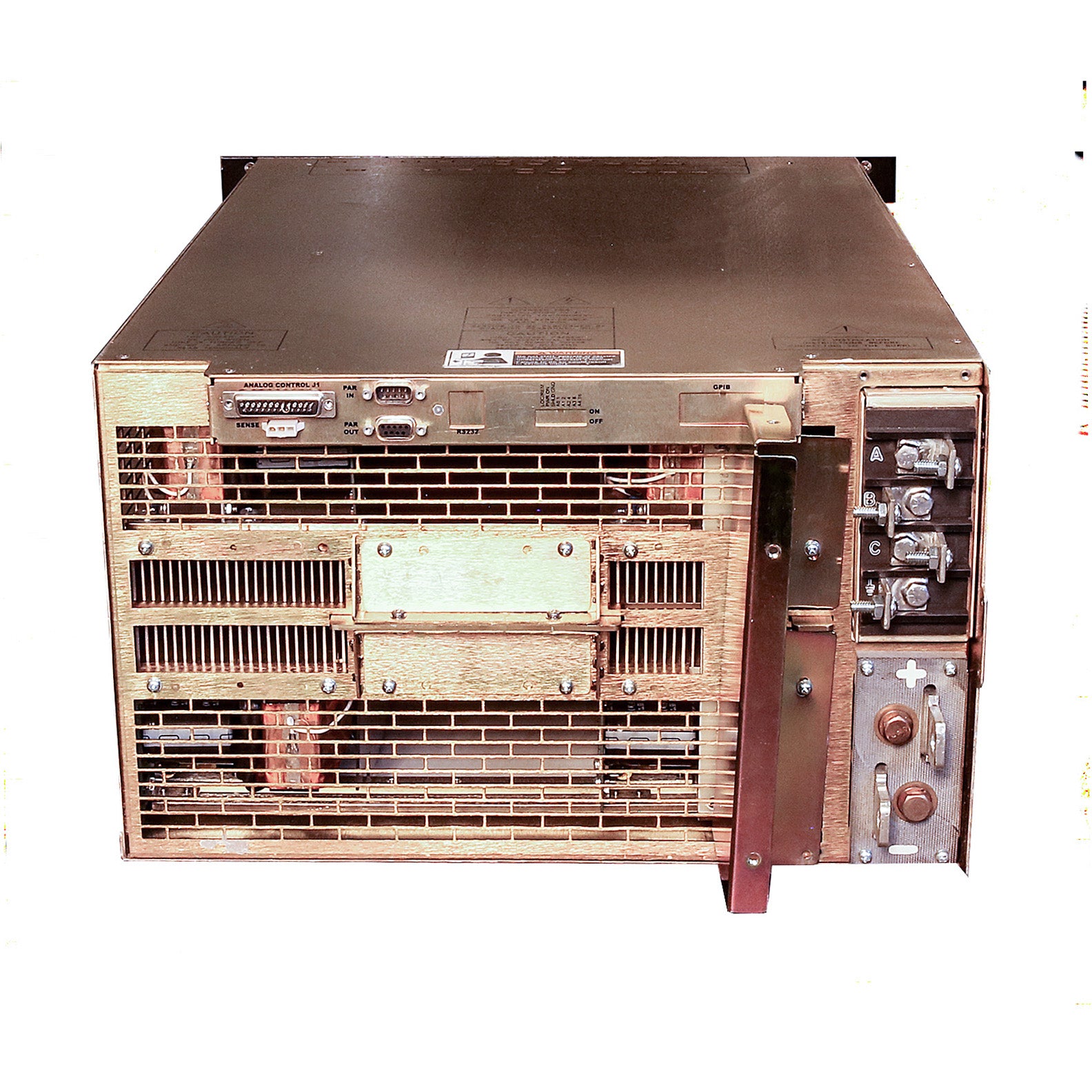

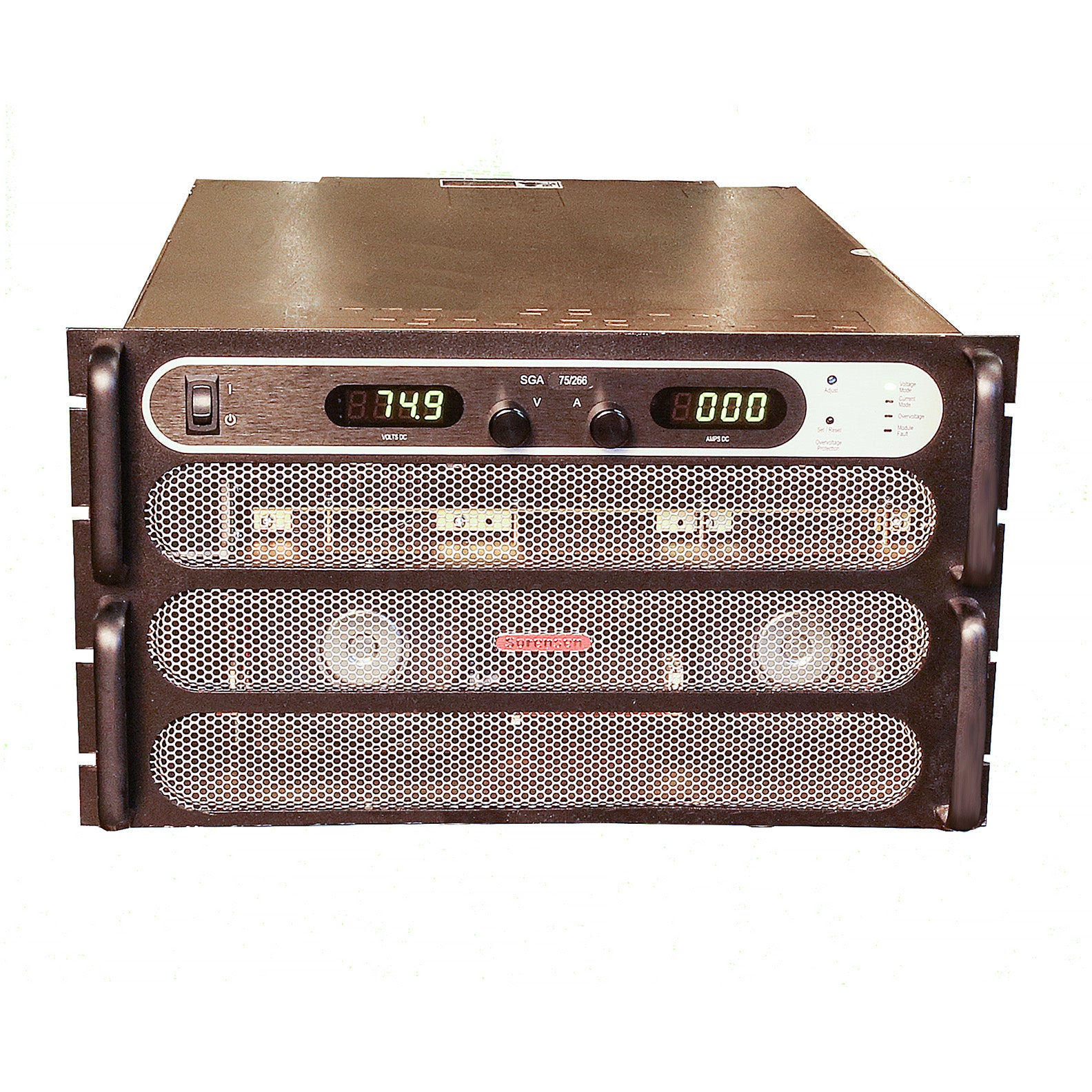

Ametek / Sorensen SGA75/266C-1DAI Programmable Precision High Power DC Power Supply, 0 to 75 Vdc, 0 to 266 A
The Sorensen SG Series represents the next generation of high power programmable DC power supplies. The SG Series is designed for exceptional load transient response, low noise and the highest power density in the industry. With a full 10 kW output in a 3u package, the SG leads the industry in power density. The power density is enhanced by a stylish front air intake allowing supplies to be stacked without any required clearance between units.
The SGA (Sorensen General Purpose Analog) with its industry leading performance, is available for customers requiring simple front panel analog controls or external control. The SGA provides essential features like 10- turn potentiometers for setting voltage and current, 3.5 digit LED readout plus front panel over-voltage protection (OVP) preview/adjustment and reset.
- Output Voltage: 0 to 75 V
- Output Current: 0 to 266 A
- Rated Power: 20 kW
- Ripple & Noise - rms (20 Hz-300 kHz): 30 mV
- Ripple & Noise - p-p (20 Hz-20 MHz): 300 mV
- 187 - 242 Vac Input - Three Phase (3 wire + ground), 47-63 Hz
- Weight: 85 lb; Size: 133 mm (5.25 in)H x 483 mm (19.0 in)W x 713.5 mm (28.09 in)D
Please see Datasheet for complete details and specifications.
