Ametek / Sorensen SGX250X40C-0ASAR Programmable Precision High Power DC Power Supply, 0 to 250 Vdc, 0 to 40 A, 10 kW, LAN

The Sorensen SGX Series represents the next generation of high-power programmable DC power supplies. The SGX Series is designed for exceptional load transient response, low noise, and the highest power density in the industry. With a full 10 kW available down to 20 V output in a 3U package, the SGX leads the industry in power density. The power density is enhanced by a stylish front air intake, allowing supplies to be stacked without any required clearance between units.

At the heart of the SGX series is a 5 kW power module. Depending on the output voltage, one to six modules can be configured in a single chassis to deliver 5-30 kW of power.

The SGX combines onboard intelligent controls with the outstanding power electronics common to all SG family supplies. These controls enable sophisticated sequencing, constant power mode, and save/recall of instrument settings. Looping of sequences makes the SGX ideal for repetitive testing.

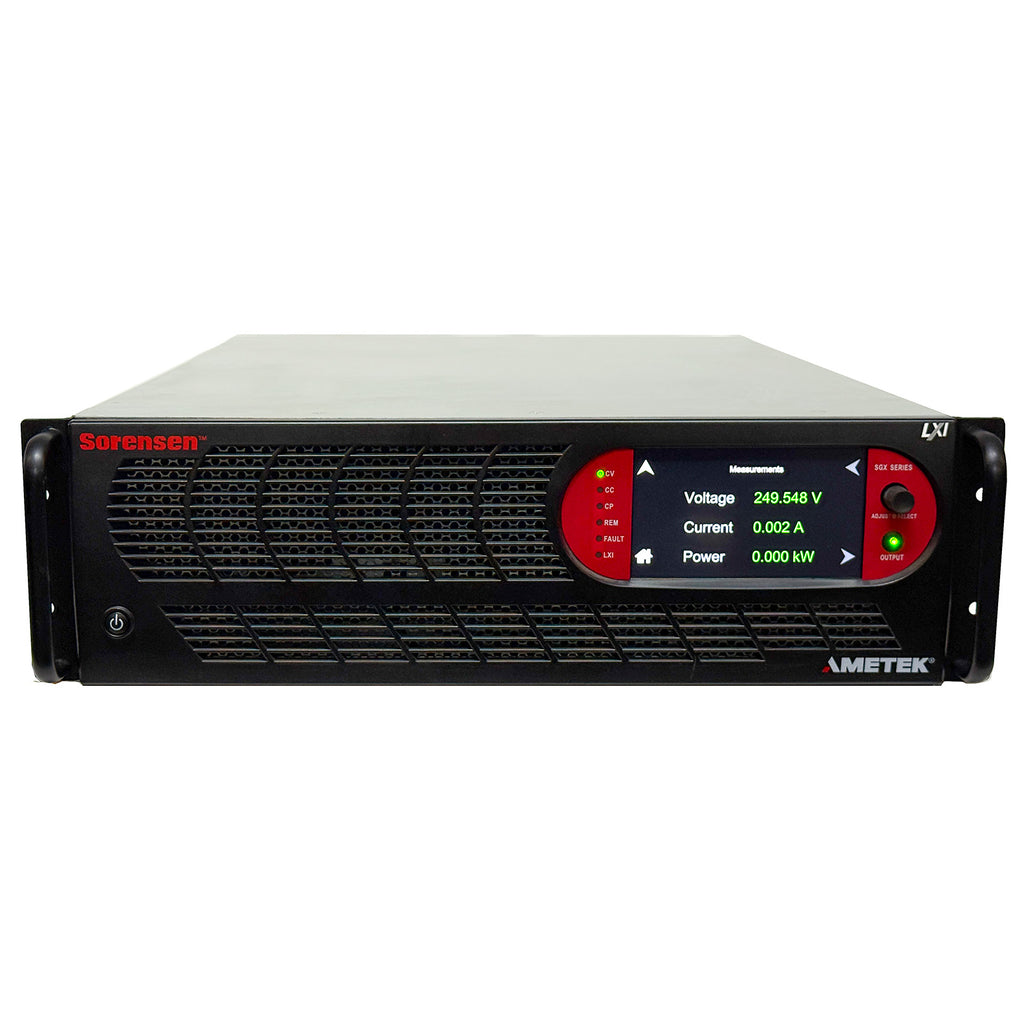

The SGX Series is operated via the intuitive, easy-to-use front-panel touchscreen display. Quickly access output programming parameters, measurements, sequencing, configuration, and system settings from the touch screen interface. Functions and parameters can be selected directly from the touch screen or using the encoder selector button. The control resolution is adjusted by a dynamic rate-change algorithm that combines the benefits of precise control over small parameter changes with rapid sweeps through the entire range.

Features:

• Output Voltage: 0 to 250 V
• Output Current: 0 to 40 A
• Rated Power: 10 kW
• Ripple & Noise - rms (20 Hz-300 kHz): 30 mV
• Ripple & Noise - p-p (20 Hz-20 MHz): 200 mV
• Interfaces: Ethernet and RS-232

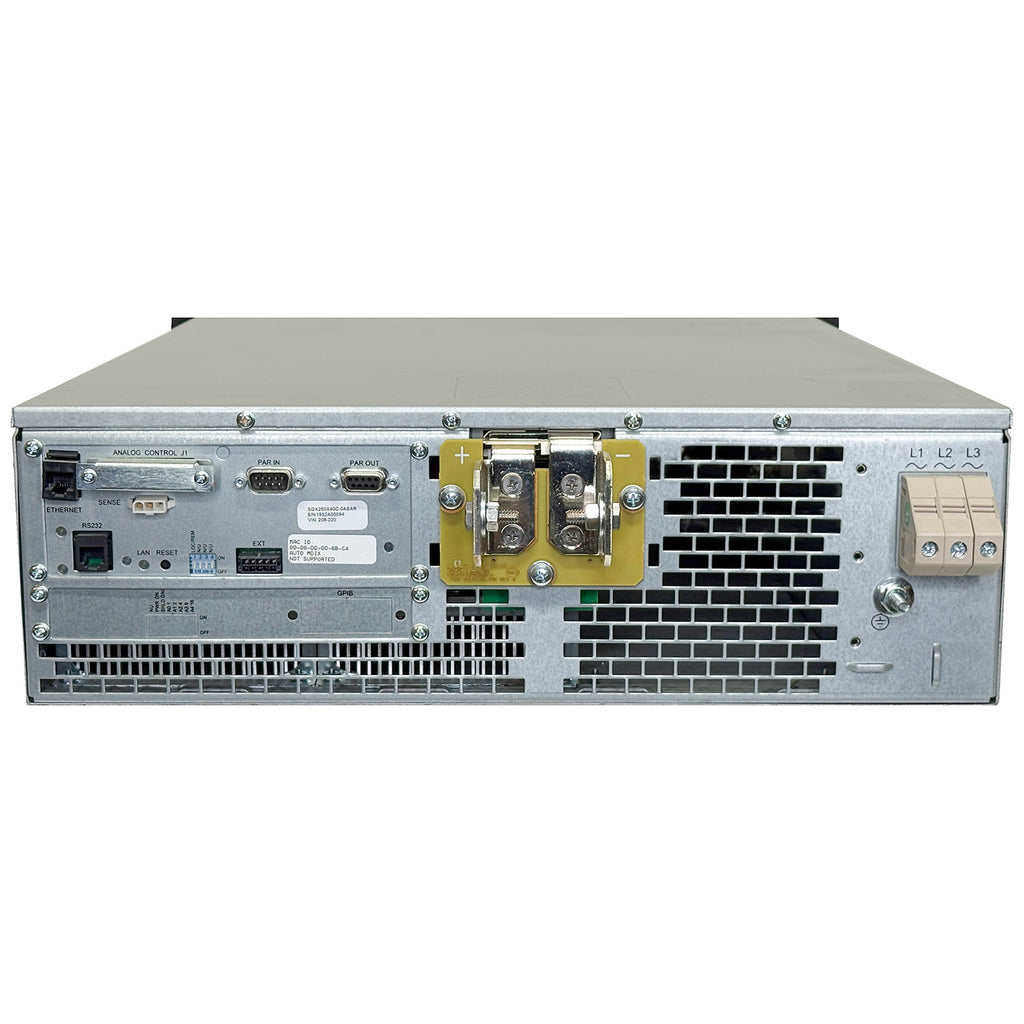

• 187 - 242 Vac Input - Three Phase (3 wire + ground), 47-63 Hz
• Weight: 85 lb; Size: 265.9 mm (10.47 in)H x 482.6 mm (19.0 in)W x 667.8 mm (26.3 in)D

Please see the Datasheet for complete details and specifications.
