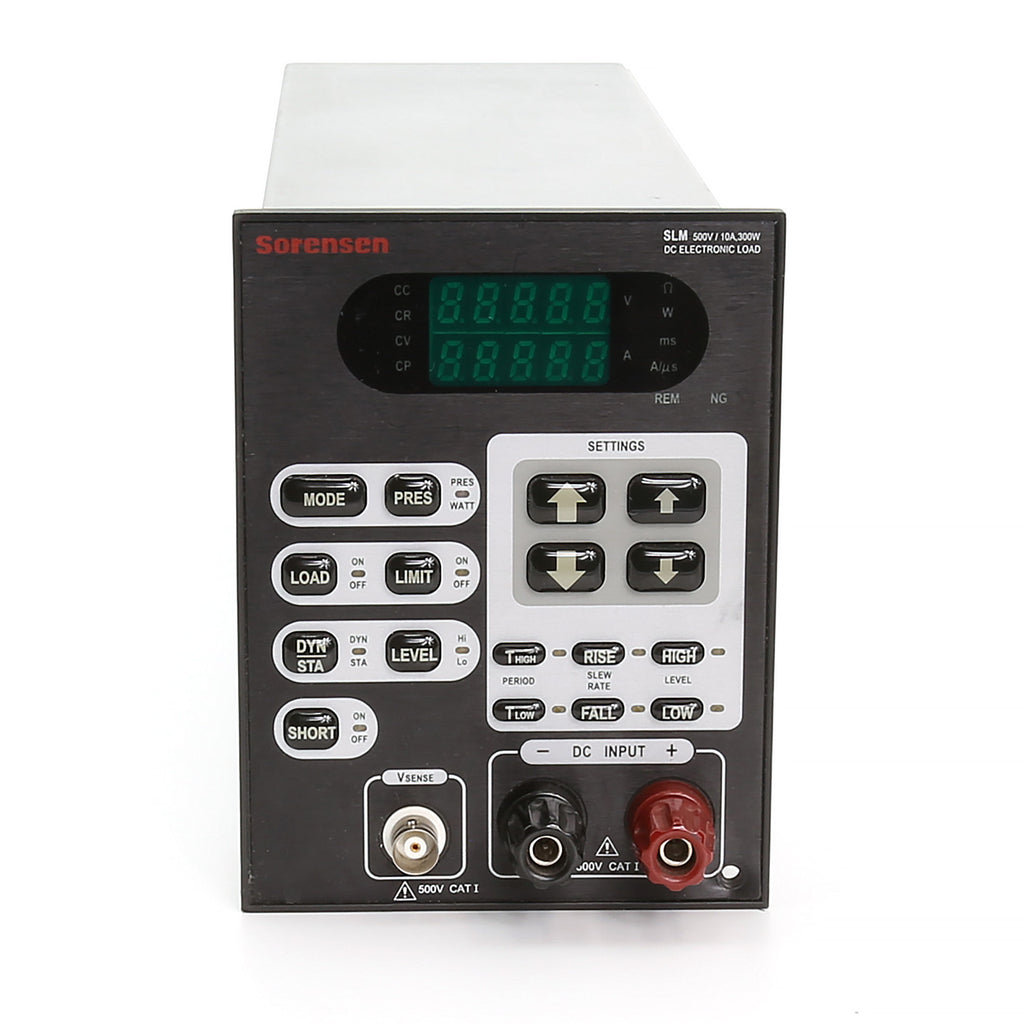

Ametek / Sorensen SLM 500-10-300 DC Electronic Load Module, 500 V, 10 A, 300 W

Ametek MPN: SLM-500-10-300
REFURBISHED & TESTED 6-MONTH WARRANTY ALSO AVAILABLE FOR RENT

Price:
Sale price$695.00 USD
Stock:
In stock - Ships in 1 to 2 Business Days

Description

Ametek / Sorensen SLM 500-10-300 DC Electronic Load Module, 500 V, 10 A, 300 W

The Ametek / Sorensen SLM 500-10-300 DC Electronic Load Module is a fully programmable, single input DC modular electronic load. DC models are offered to test power supplies, battery chargers, battery discharge, power supply transient response and integration into ATE systems. AC models are ideal to test low power inverters. The DC models support operation in Constant Current (CC), Constant Voltage (CV), Constant Resistance (CR) or Constant Power (CP) mode as well as a short simulation. Engineers have ultimate control of current waveforms by using either the analog input or CC dynamic mode. An analog input (single input DC models) allows arbitrary current waveforms up to 20kHz with an external 0-10V signal. In dynamic mode, the pulse generator allows fast state switching between two programmed current levels with programmed slew rate and dwell times.

Features:

  • CC Mode Resolution: Range 0-1 A 0.268 mA; Range 0-10 A 2.68 mA
  • CV Mode Resolution: 0.133 V
  • CR Mode: Range 1: 50-18.75 kΩ; Range 2: 2.67-50 Ω
  • Remote: GPIB, RS-232, Analog
  • DC Modes: CC, CR, CV, CP
  • Dynamic mode with slew rate control
  • Flexible Data Feedback
  • Current monitor output

Please see Datasheet for complete details and specifications.
