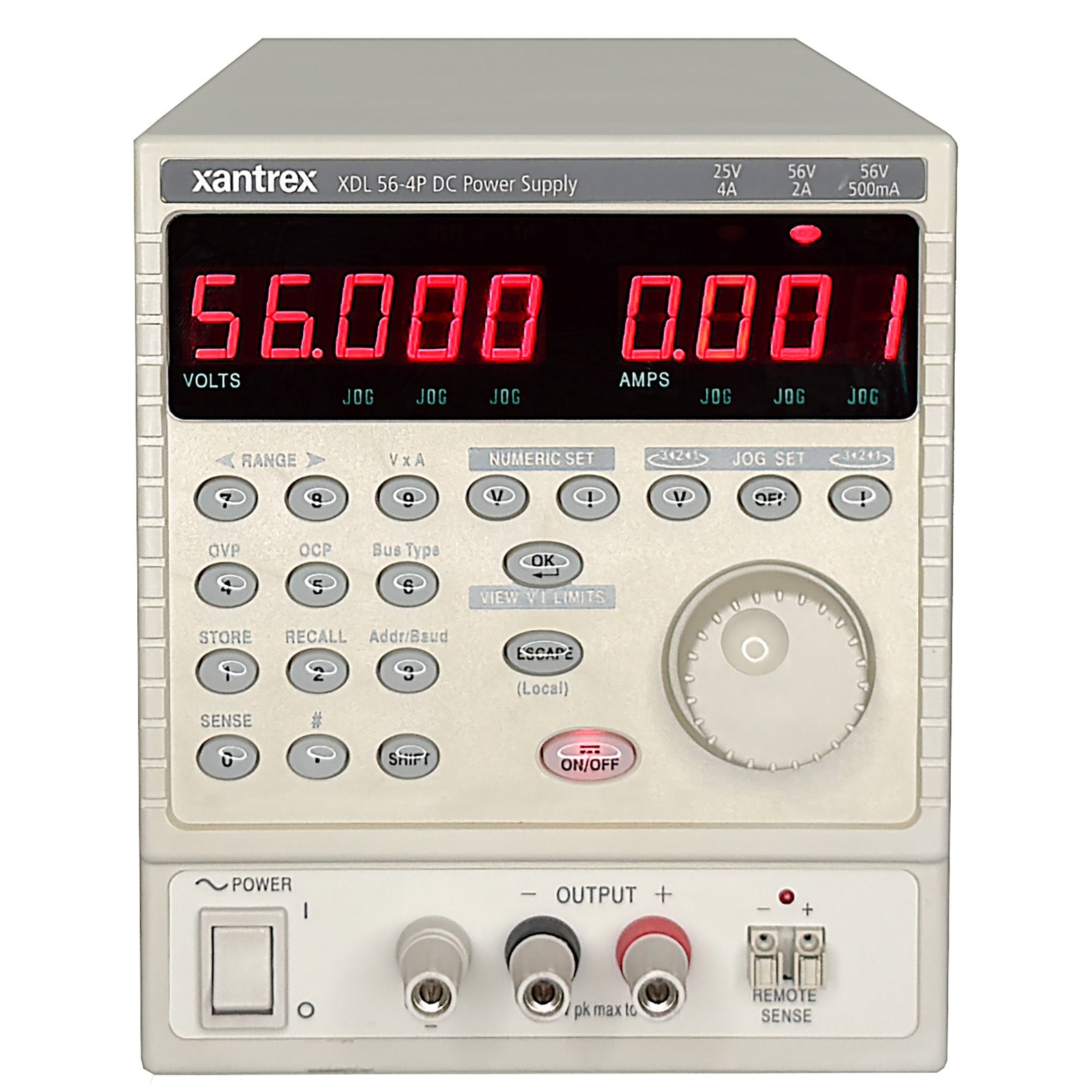

Ametek / Sorensen XDL 56-4P DC Power Supply, Multi-Range, 25 V @ 4 A, 56 V @ 2 A/500 mA

Ametek / Sorensen / Xantrex XDL 56-4P DC Power Supply, Multi-Range, 25 V @ 4 A, 56 V @ 2 A/500 mA

The XDL Series II provides multiple ranges for increased current capability at lower voltages. The XDL56-4P, for example, is a 112W PSU with three ranges. The main range offers 0 to 56 volts at up to 2 amps. The higher current range provides up to 4 amps for voltages up to 25V. A further low current range provides an enhanced current setting and measurement resolution of 0.1mA

The XDL Series offers an unparalleled level of precision. Voltage and current are controlled using instrumentation-quality 16-bit DACs, enabling voltages to be set to 1mV resolution, even at full output voltage. Indeed, the accuracy is sufficient for the XDL to be used as a calibration source for some hand-held DMMs.

Features:

• Output Range 1: 0-56 V, 0-2 A
• Output Range 2: 0-25 V, 0-4 A
• Output Range 3: 0-56 V, 0-500.0 mA
• Very high precision, very low noise, excellent dynamics
• Advanced user interface with direct numeric entry and incremental rotary control
• Fifty store/recall setup locations
• Fully isolated outputs for maximum flexibility
• Constant voltage or constant current operation with automatic crossover and mode indication

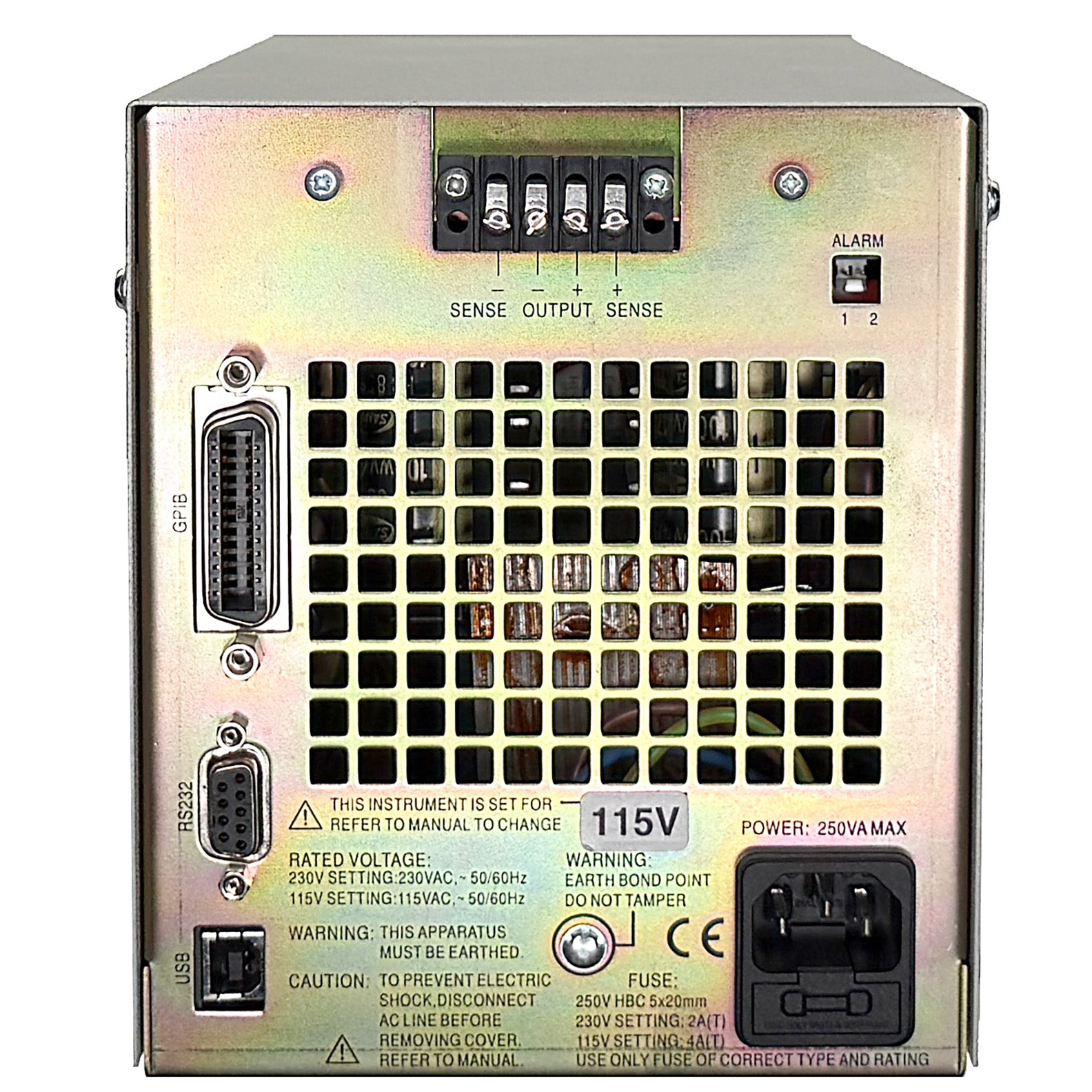

• RS-232, USB, and GPIB are provided as interfaces
• 115 Vac or 230 Vac ± 10% (adjustable internally), 50/60 Hz; single phase operation
• Weight: 12.1 lb (5.5 kg); Size: 6.3" x 5.5" x 11.4” (160 x 140 x 290 mm)

Please see the Datasheet for complete details and specifications.
