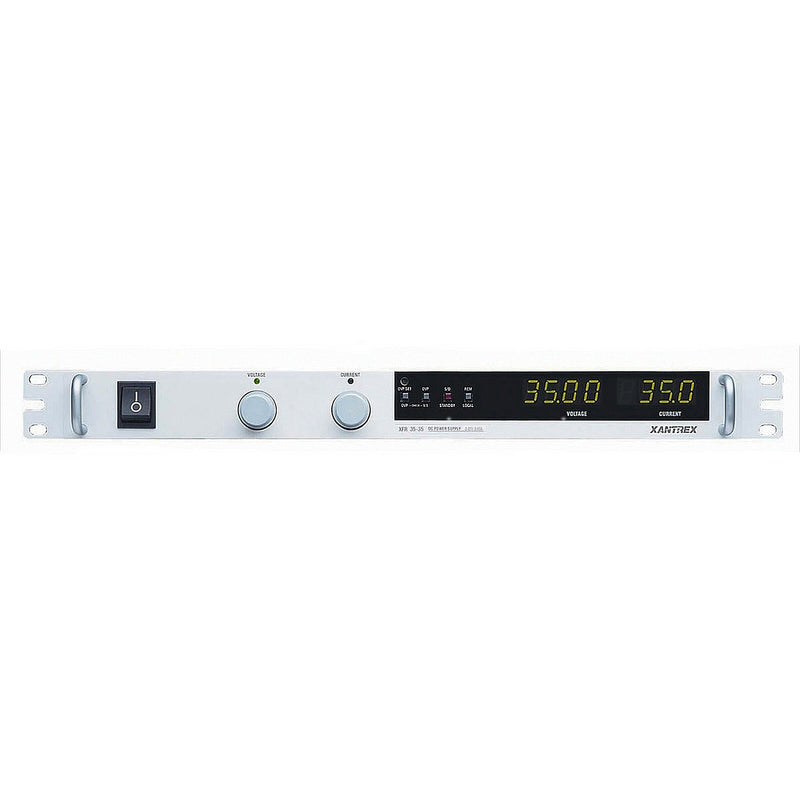

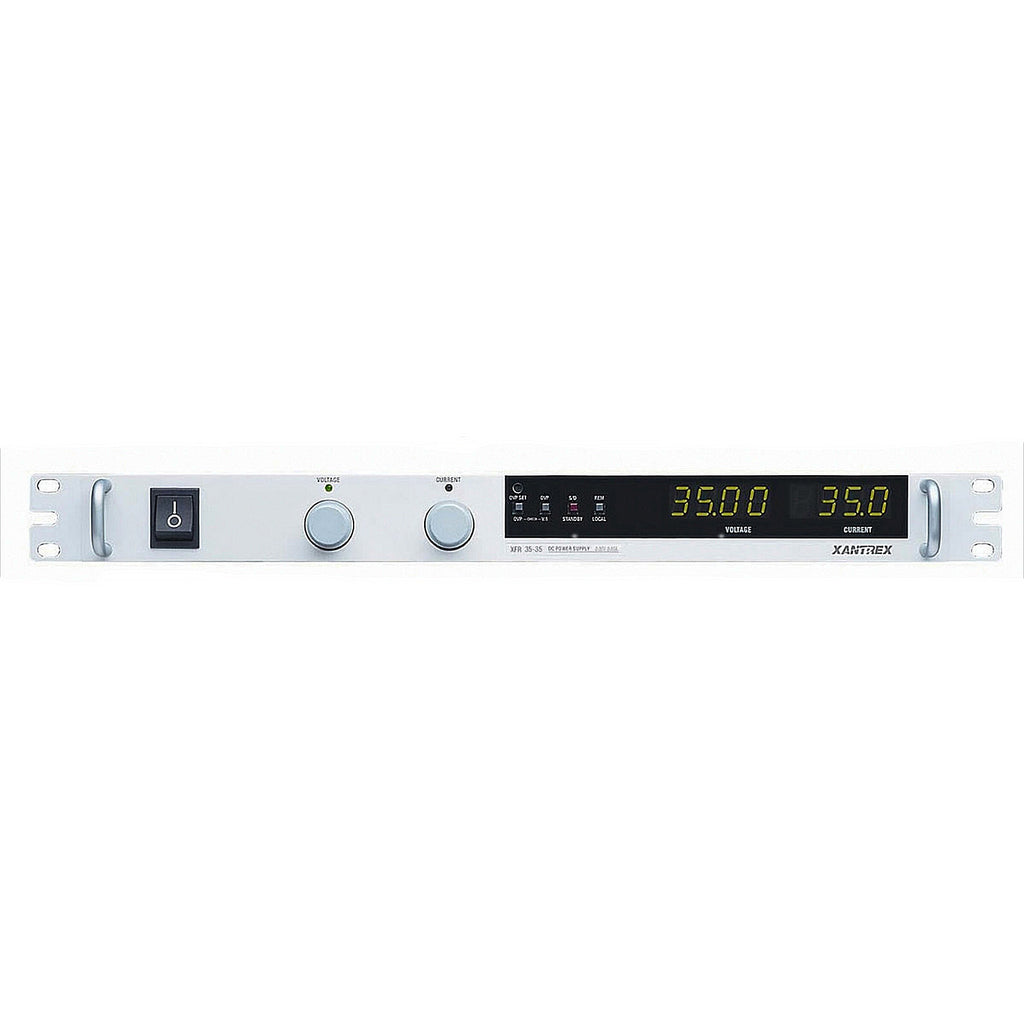

Ametek / Sorensen / Xantrex XFR 35-35 Programmable DC Power Supply, 0 to 35 Vdc, 0 to 35 A

Ametek MPN: XFR 35-35
REFURBISHED & TESTED 6-MONTH WARRANTY ALSO AVAILABLE FOR RENT

Price:
Sale price$1,295.00 USD
Stock:
In stock - Ships in 1 to 2 Business Days

Description

Ametek / Sorensen / Xantrex XFR 35-35 Programmable DC Power Supply, 0 to 35 Vdc, 0 to 35 A

The XFR35-35 power supply provides low-noise, precisely regulated, variable DC output at 1200 Watts of output power. Over voltage protection (OVP) and thermal shutdown are standard. Front panel controls and indicators are extensive.

Option MGA = GPIB (IEEE 488.1)

Features:

  • Voltage: 0 to 35 Vdc
  • Current: 0 to 35 A
  • Output Power: 1225 W
  • Output noise (0-20 MHz): 50 mVp-p
  • Output ripple (rms): Voltage 8 mV, Current 60 mA
  • Load regulation: Voltage (0.02% of Vmax + 5 mV) 3 mV, Current (0.02% of Imax + 5 mA) 5 mA
  • 85-130 Vac or 190-264 Vac; 47-63 Hz operation
  • Weight: 18 lb; Size: 43.4 mm (1.71 in)H x 483 mm (19.0 in)W x 508 mm (20.0 in)D

Please see Datasheet for complete details and specifications.
