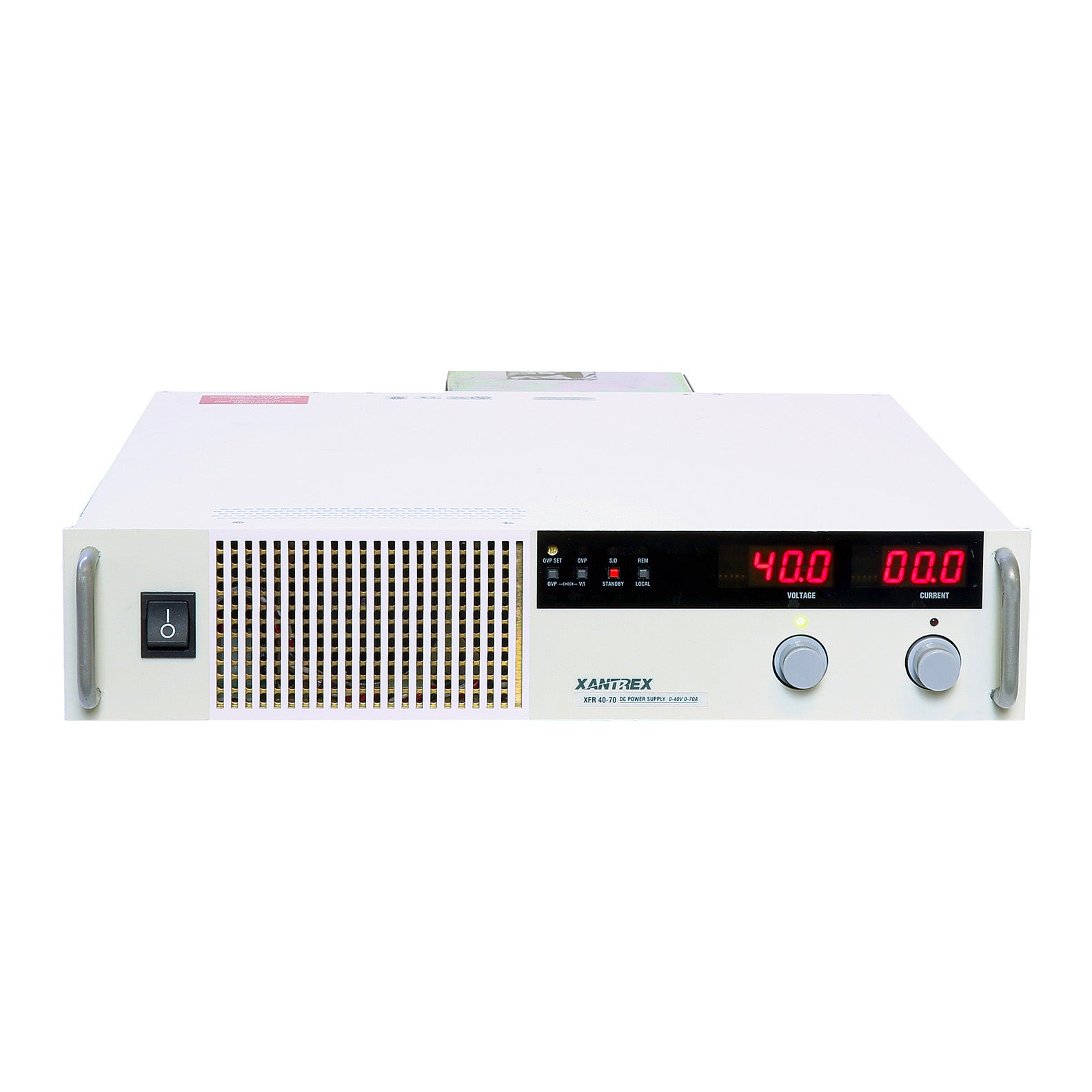

Ametek / Sorensen / Xantrex XFR 40-70 Programmable DC Power Supply, 0 to 40 Vdc, 0 to 70 A

Ametek / Sorensen / Xantrex XFR 40-70 Programmable DC Power Supply, 0 to 40 Vdc, 0 to 70 A

The XFR40-70 power supply provides low-noise, precisely regulated, variable DC output at 2800 Watts of output power. Over voltage protection (OVP) and thermal shutdown are standard. Front panel controls and indicators are extensive.

Features:

• Voltage: 0 to 40 Vdc
• Current: 0 to 70 A
• Output Power: 2800 W
• Output noise (0-20 MHz): 100 mVp-p
• Output ripple (rms): Voltage 15 mV, Current 300 mA
• Load regulation: Voltage (0.02% of Vmax + 5 mV) 11.6 mV, Current (0.02% of Imax + 5 mA) 22 mA
• 190-264 Vac; 47-63 Hz, 1 Phase operation
• Weight: 33 lb; Size: 88.9 mm (3.5 in)H x 429.4 mm (19.0 in)W x 534 mm (21.0 in)D

Please see Datasheet for complete details and specifications.
