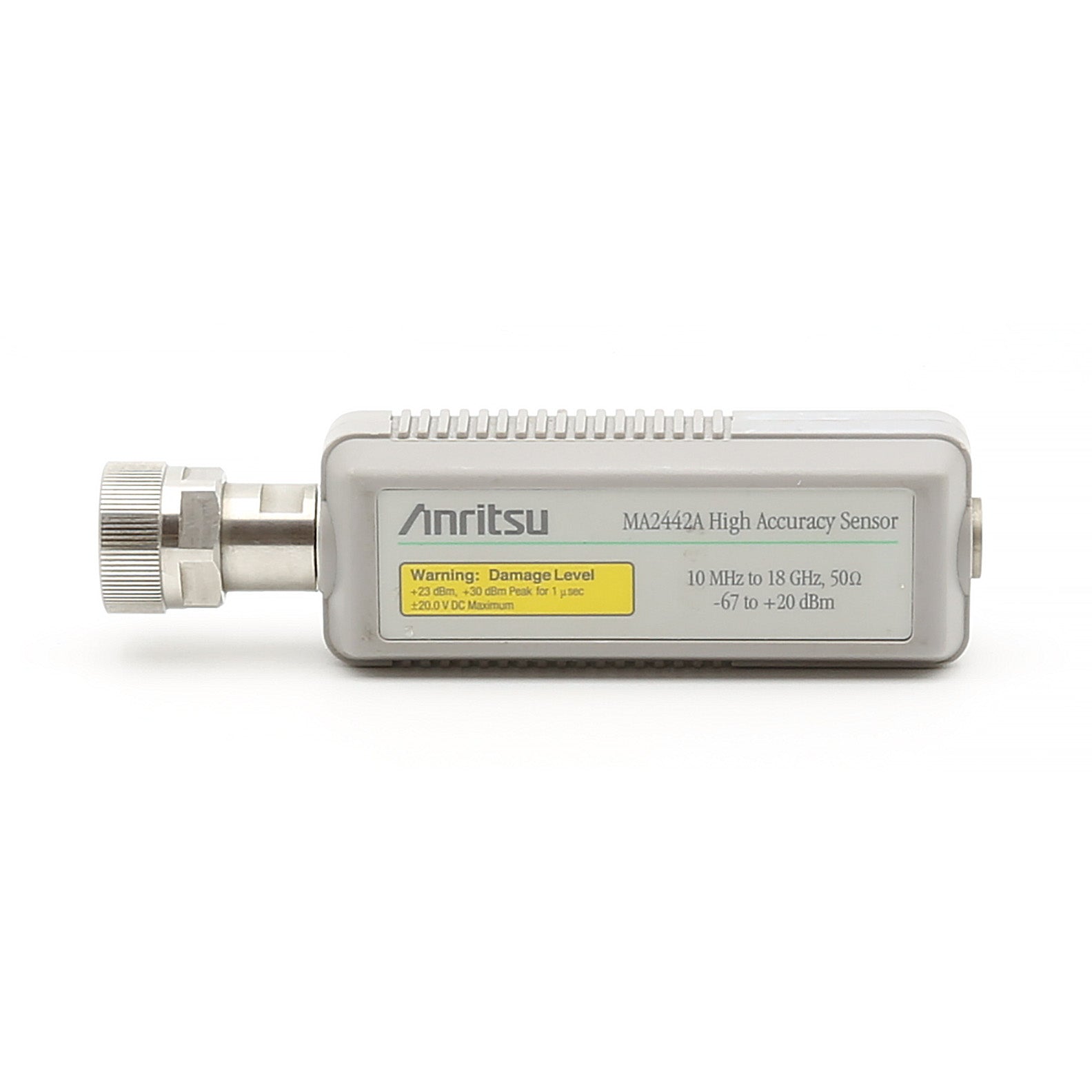

Anritsu MA2442A Power Sensor, 10 MHz to 18 GHz, -67 dBm to +20 dBm

Anritsu MA2442A Power Sensor, 10 MHz to 18 GHz, -67 dBm to +20 dBm

The MA2442A is a High Accuracy Power Sensor and features a 87 dB dynamic range providing stable power readings to -70 dBm. The MA2442A is used with the ML2430A Series Power Meters. The MA2442A High Accuracy Power Sensor contains an additional matching circuit to improve return loss performance. All MA2400A/B Series Power Sensors contain internal EEPROMs for storage of calibration data as a function of frequency, power, and temperature. This allows the power meter to interpolate and correct readings automatically.

Features:

• Frequency Range: 10 MHz to 18 GHz
• Dynamic Range: -67 to +20 dBm
• Rise Time: <0.004 ms
• Sensor linearity: 1.8%, <18 GHz
• Temperature accuracy (5 to 50 degrees C.): <1.0%
• RF connector: N(m)
• Shipping weight: 2 lb; Size: 73 mm x 52 mm x 29 mm

Please see Datasheet for complete details and specifications.
