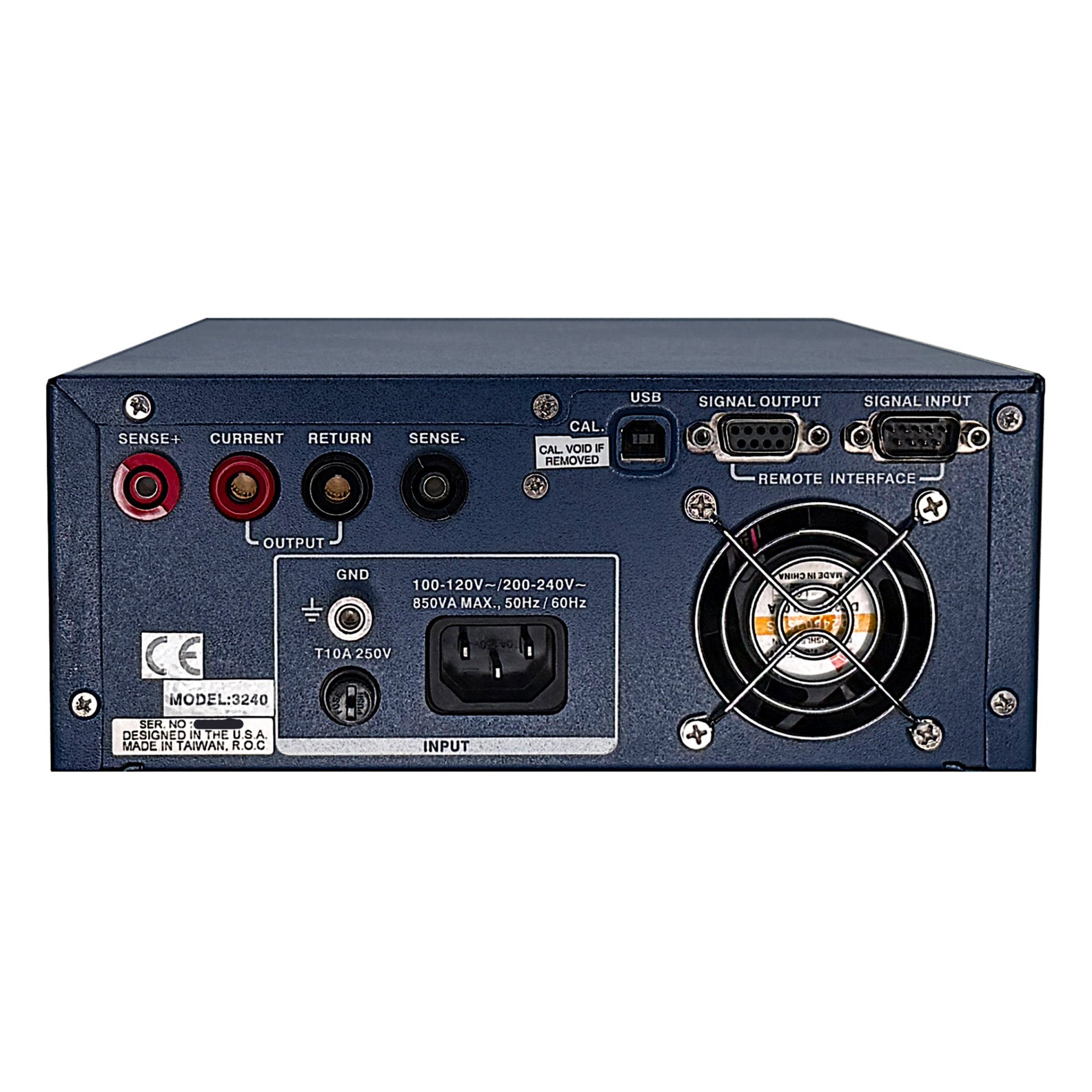

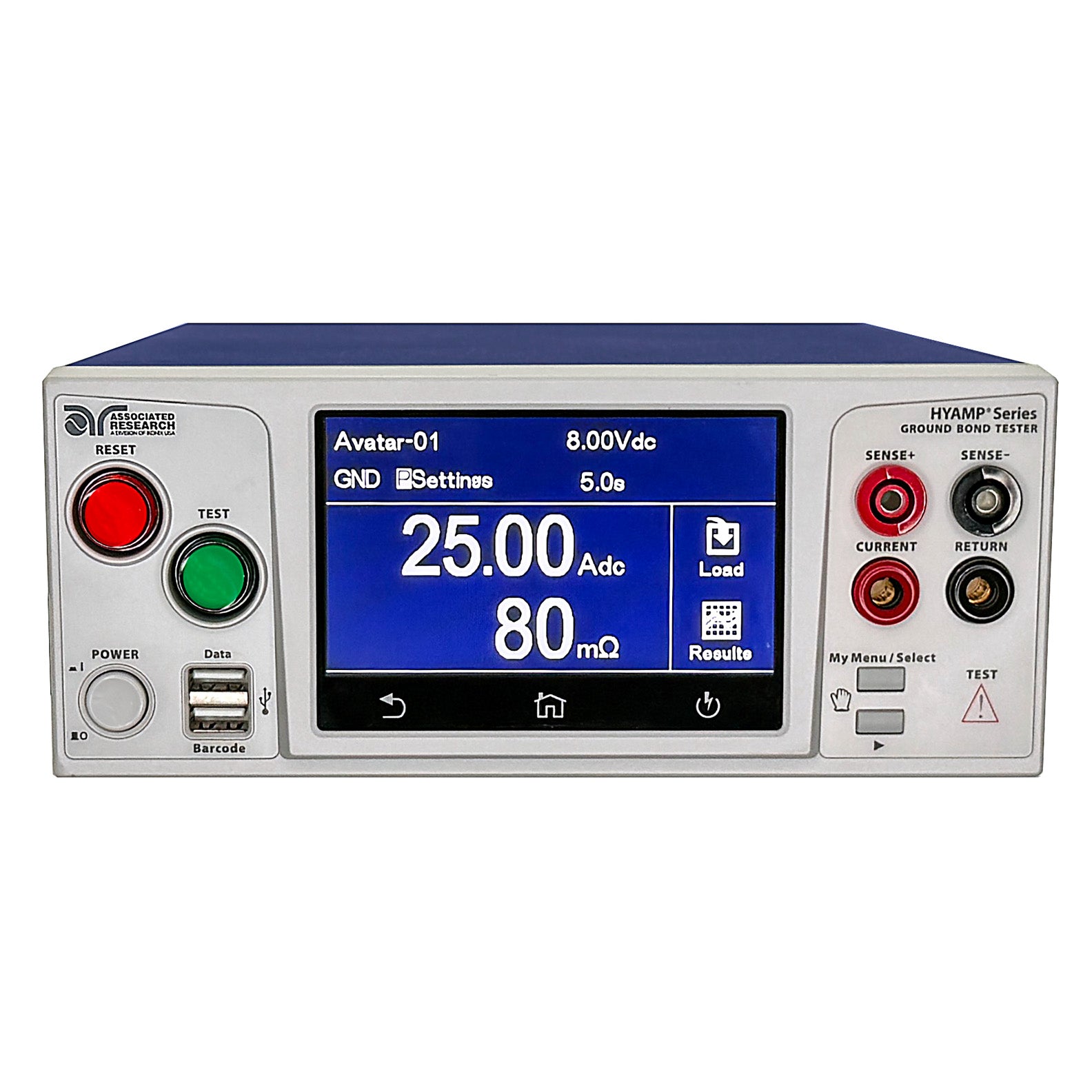

Associated Research 3240 AC/DC Ground Bond Tester, 40 Amp

Associated Research 3240 AC/DC Ground Bond Tester, 40 Amp

The HYAMP^® 3240 makes ground bond testing easy and efficient. Verify the integrity of your product’s ground circuitry with the HYAMP^® Ground Bond Tester. If your application requires AC or DC current capabilities, the HYAMP 3240 is the ground bond tester for you.

The Associated Research HYAMP® Series provides manufacturers with data-driven results and greater test flexibility required in today’s complex test environment. Quickly collect test data and test settings from the convenient front panel USB port onto a standard USB flash drive. Use the front panel barcode connection to associate products with preprogrammed test files. Test with greater flexibility by performing AC Ground Bond or DC Ground Bond at a maximum of 40 A of current. The HYAMP® features a drastically reduced weight and footprint, making it the ideal lightweight Ground Bond solution for laboratory and production line testing applications. Easily interconnect with the Hypot® Series to form a complete safety compliance system.

Features:

• AC / DC Ground Bond Tester
• Output Voltage = 3.00 to 8.00 V
• Output Current = 1.00 to 40.00 A
• Resistance Range = 0 to 600 mΩ
• USB Interface - Easily import/export test files and data
• PLC Remote - Basic PLC relay control
• Remote Safety Interlock - Easily disable HV output
• FailCHEK™ Confirms failure detection
• Prompt & Hold - Provides alerts & instructions between tests

• 4-wire Measurement - More accurate milliohm measurement
• Interconnect with Hypot® to form a complete test system
• Barcode Capability - Direct barcode connection
• Multiple Languages - Multi-Language user interface
• Ground Bond Voltage Drop - Monitor voltage drop vs resistance PLP
• On-Board Data Storage - Save up to 1,500 Test Results
• 100 to 120 VAC / 200 to 240 VAC ± 10% Auto Range; 50/60 Hz ±5% operation
• Dimensions: (W x H x D): 8.46" x 3.5" x 11.9" (215 mm x 89 mm x 300 mm)
• Weight: 11 lbs (5 kg)

Please see Datasheet for complete details and specifications.
