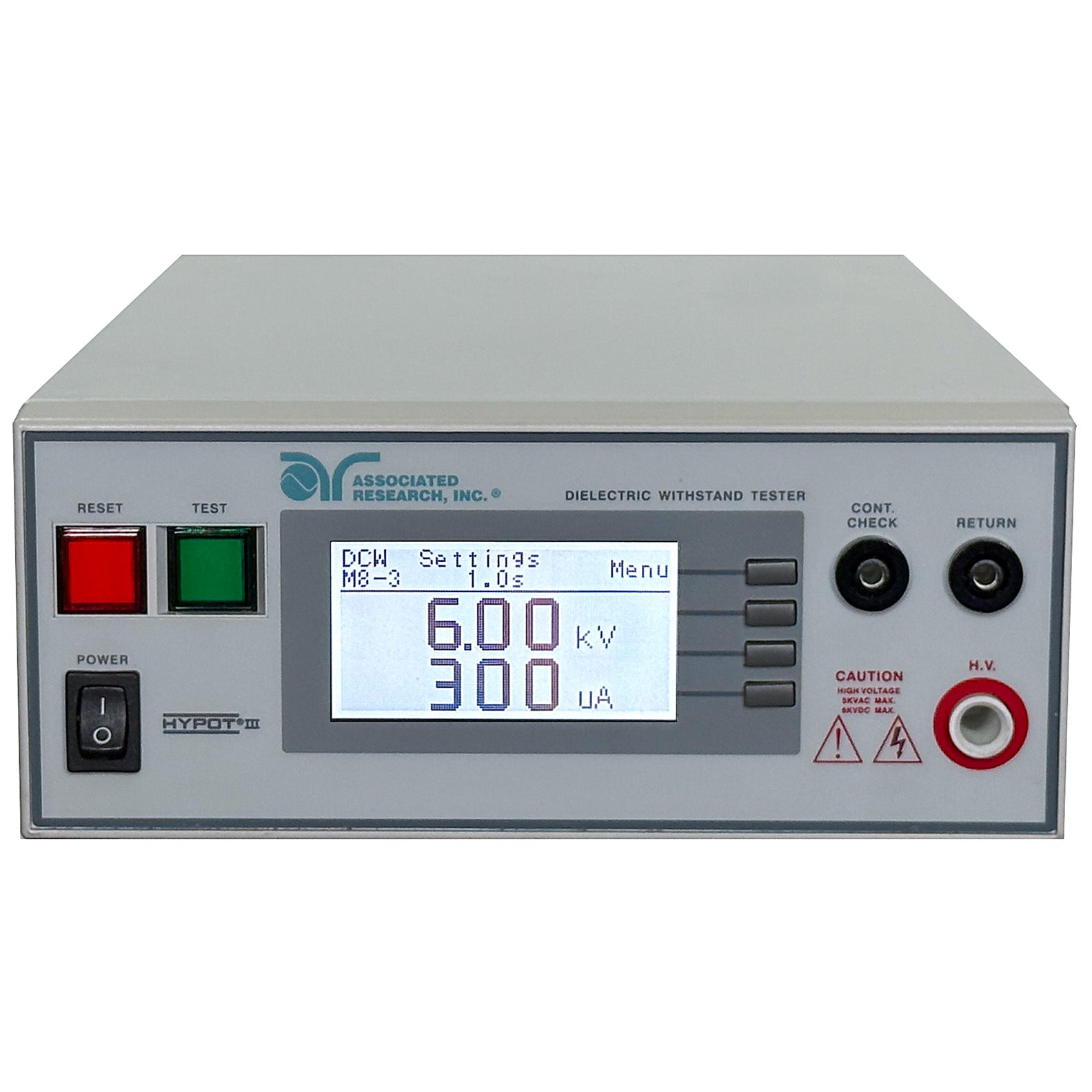

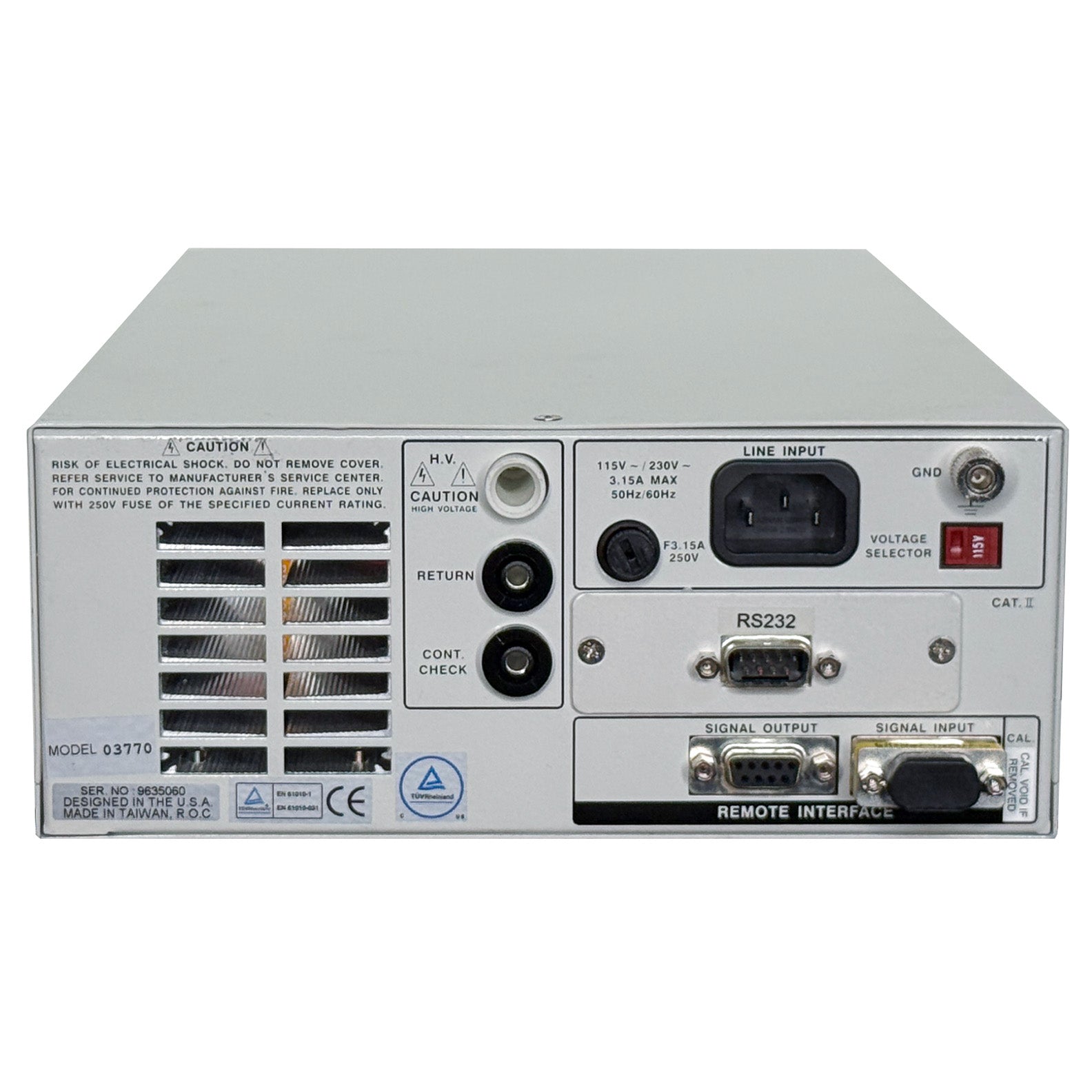

Associated Research Hypot 3770 AC/DC Hipot Tester 5 kVac, 6 kVdc, RS-232

Associated Research Hypot 3770 AC/DC Hipot Tester 5 kVac, 6 kVdc

The Associated Research 3765 Hypot AC/DC Hipot Tester is a programmable or manually controlled 5 kVAC, 6 kVDC Hipot. The 3765 features an enhanced graphic LCD and can be used as a bench-top instrument or controlled through PLC remote control. The 3765 can also be interconnected to the HYAMP® III family of Ground Bond testers to form a complete test system that will perform AC/DC/IR Hipot and Ground Bond tests in a single DUT connection. It provides a simplified interface and the latest in technology & safety features. It is a perfect solution for entry-level AC/DC Hipot testing applications.

Features:

• AC / DC hipot tester
• 0 to 5.00 kVac @ 20 mA

• 0 to 6.00 kVdc @ 7.5 mA
• AC / DC Hipot, Insulation Resistance, Ground Continuity
• Resolution: 0.01 KV
• Accuracy: ± (2% of setting + 5 V)

• RS-232 Interface for entry-level automation
• Patented SmartGFI® safety circuit protects the operator from shock hazards
• Patented VERI-CHEK® feature prompts users through steps to validate the instrument’s operation
• Patented CAL-ALERT® feature alerts the operator that the tester is due for recalibration
• Built-in adjustable Continuity test for checking basic continuity
• Graphic LCD provides an intuitive menu system to simplify the entire testing process from set-up to results
• PLC Remote Control allows operators to control the Hipot tester remotely
• 10 Memories with 3 Steps per memory for storing and recalling test parameters
• Interconnect with the HYAMP series to form a complete safety compliance system
• 115 VAC / 230 VAC ±10%, user selectable; 50/60 Hz ±5% operation
• Dimensions: (W x H x D): 8.46" x 3.5" x 14.57" (215 mm x 89 mm x 370 mm)
• Weight: 20.96 lbs (9.53 kg)

Please see the Datasheet for complete details and specifications.
