BK Precision VSP20-50 Programmable DC Power Supply, 0 to 20 Vdc, 0 to 50 A

B+K Precision VSP20-50 Programmable DC Power Supply, 0 to 20 Vdc, 0 to 50 A

The VSP Power Supply series utilizes modern switch-mode technology to produce high-power, low-noise switching supplies that cost around 25% less than linear supplies with the same power. The VSP series offers up to 1.2 kilowatts in a 19-inch rack-mountable chassis that measures just 1U (1.75 inches) high.

The VSP series power supplies can provide precise output voltage control via manual tuning utilizing front panel-mounted ten-turn potentiometers or by remote control from an RS-232 interface (provided on standard VSP models) or by a GPIB interface (add "GPIB" to the model number for a VSP with a GPIB interface instead of an RS-232). All models have remote-sensing capabilities to automatically maintain the desired voltage levels at the load.

Features:

• Power: 1.2 kW
• Output Voltage: 0 to 20 Vdc
• Output Current: 0 to 50 A
• Ripple rms. (10 Hz to 1 MHz): ≤15 mV
• Noise (10 Hz to 20 MHz): ≤45 mVpp
• Programming Resolution: Voltage 10 mV; Current 20 mA
• Compact 1U (1.75 in by 19-inch rack-mountable chassis) is just as at home on a bench as it is in a Rack
• Up to nine units can be cascaded, producing more than 10 kilowatts of DC power
• Front-to-back air flow allows full power operation without space between supplies

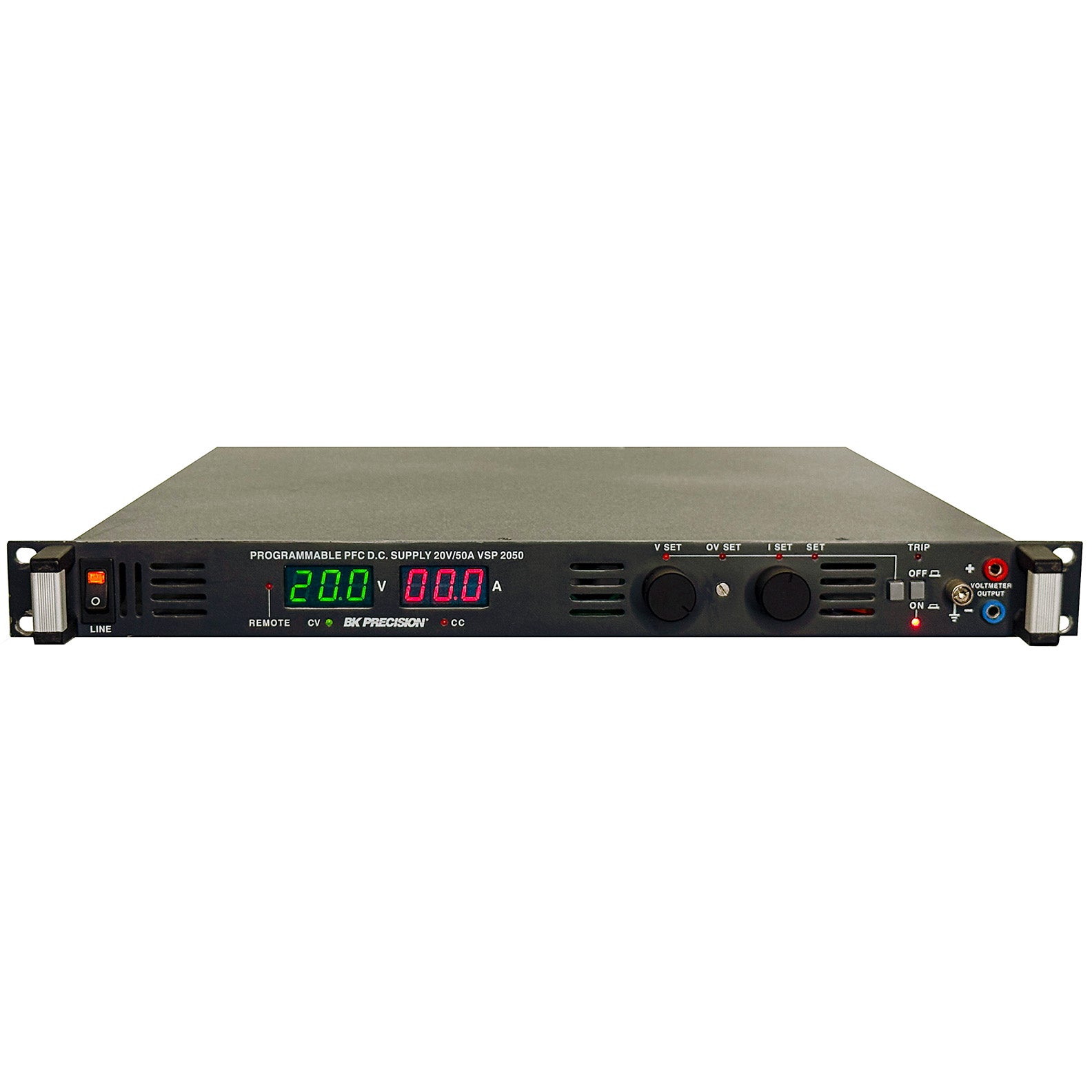

• Output on/off switch on front of unit

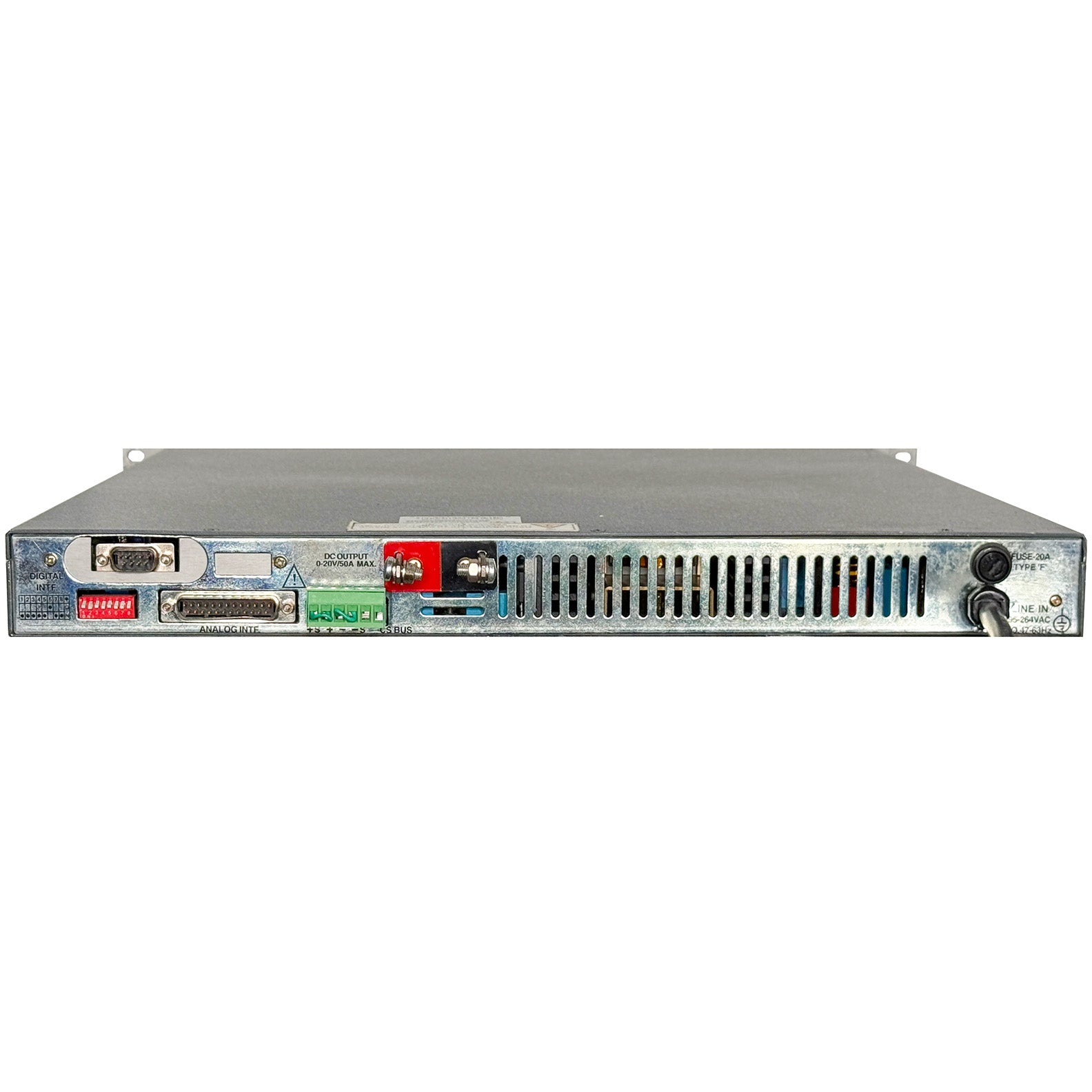

• RS-232 interface

• 95 to 264 Vac input voltage, 47-63 Hz, single-phase operation
• Weight: 13.7 lbs. (6.2 kg.); Size WxHxD: 19 x 1.75 x 18" (483 x 44.5 x 457mm)

Please see the Datasheet for complete details and specifications.
