Chroma 11210 Battery Insulation Tester, 1 kVdc, 50mA, USB, LAN

Chroma 11210 Battery Insulation Tester, 1 kVdc, 50mA, USB, LAN

The Chroma 11210 Battery Cell Insulation Tester is designed to measure leakage current (LC) and insulation resistance (IR) of Lithium-ion batteries (dry-cell/jelly-roll). This model also measures solid capacitors, multilayer ceramic capacitors (MLCC), high-voltage electrolytic capacitors, and insulation materials. In addition to standard LC/IR measurement, the 11210’s PD detection function is designed to detect and analyze strong partial discharge (PD) and electrical flashover (Flashover) in the insulator during high-voltage measurement. This function helps detect whether the effective insulation distance of the lithium-ion battery (dry cell/jelly roll) under test is sufficient before electrolyte filling, thereby preventing potentially defective products from entering the next production stage or the end market. Compared with traditional insulation test solutions, Chroma 11210 takes safety and insulation material quality testing of lithium-ion battery-driven products and electric vehicles to a new level.

Features:

• Test voltage: up to 1 kVdc
• Charge current: 50mA max.
• Wide range of Leakage Current (LC) measurement (1pA ~ 20mA)

• Built-in +Flash Test function
• Built-in reliable contact check
• Automatic test with sequence: charge→dwell→test→discharge
• High speed testing (20ms/min.)

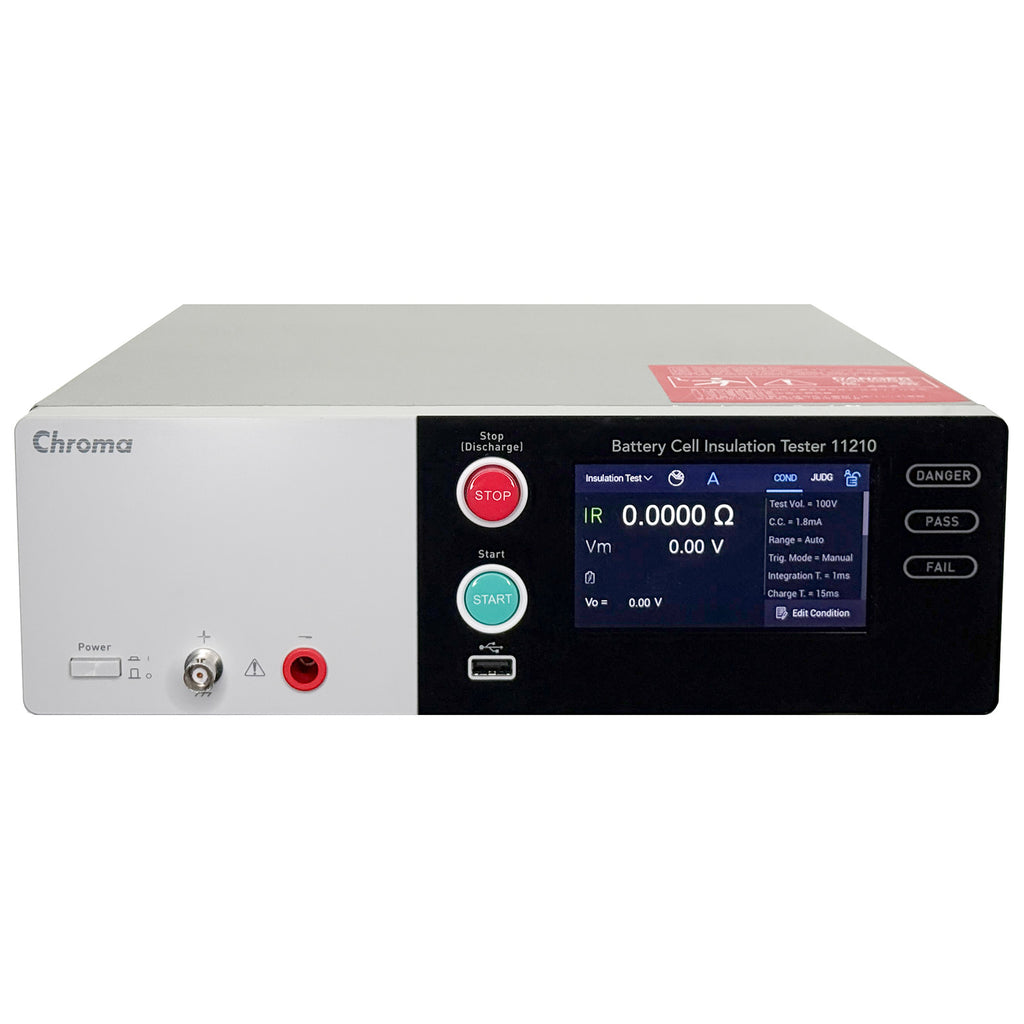

• Full-color display and touch panel

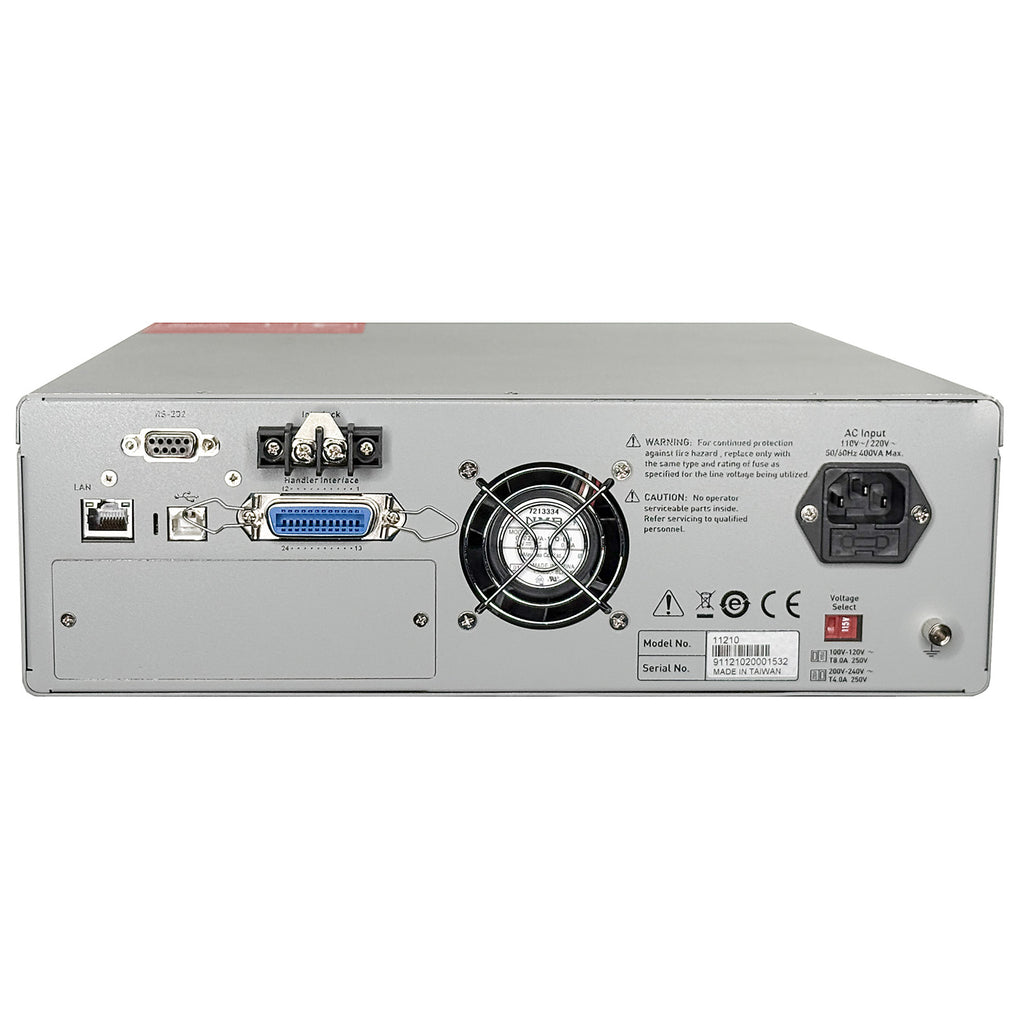

• Standard Handler, USB, RS-232, Ethernet Interfaces
• Dimensions (H x W x D): 100 x 320 x 400 mm; Weight: 10 kg
• Operation: 90 to 132 Vac or 180 to 264 Vac; 47 to 63Hz

Please see the Datasheet for complete details and specifications.
