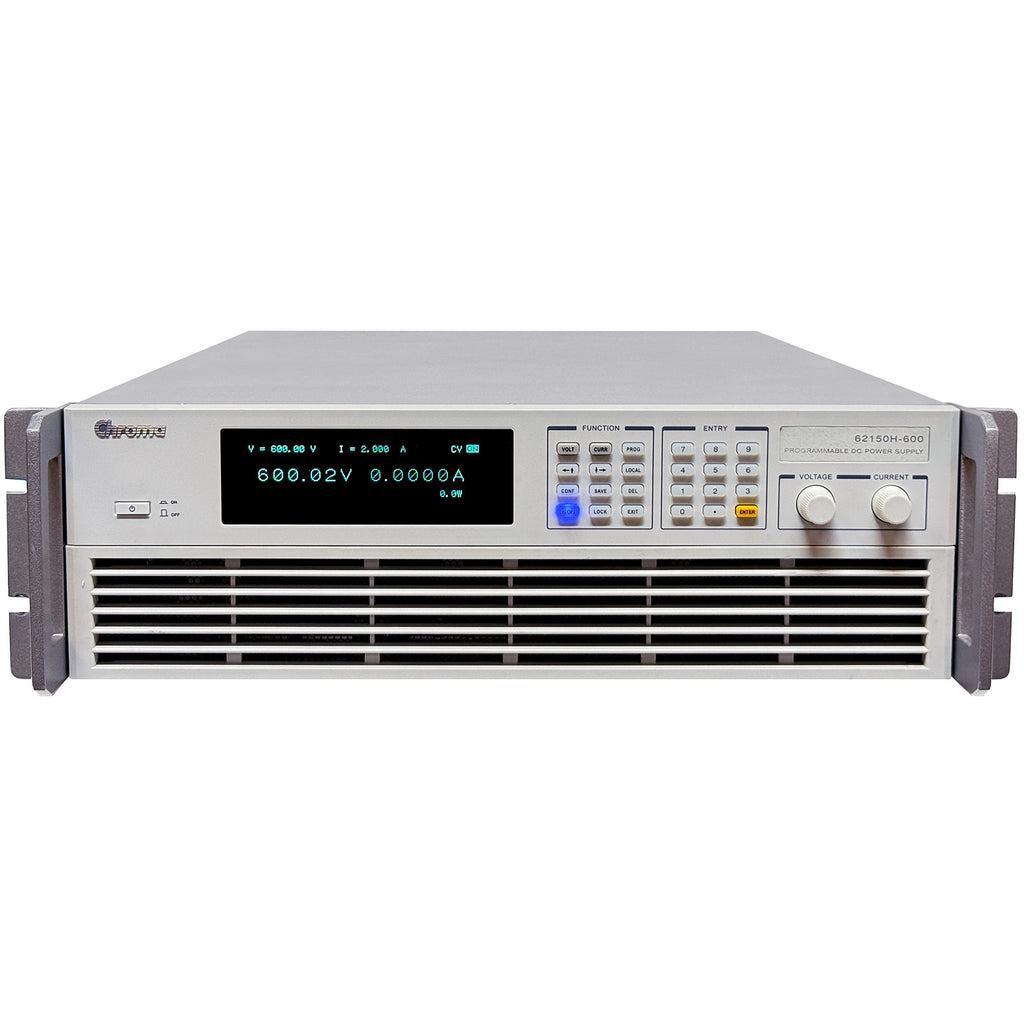

Chroma 62150H-600 Programmable DC Power Supply, 0 to 600 V, 0 to 25 A, 15 kW

Chroma 62150H-600 Programmable DC Power Supply, 0 to 600 V, 0 to 25 A, 15 kW

The 620150H-600 offers a high power density envelope with a maximum 15 kW in 3U, delivering low output noise and ripple, excellent line and load regulation, and fast transient response. The 0 to 600 Vdc range and 0 to 25 A current make this unit suitable for every part of your manufacturing process from design to production testing.

When high power is required, it is common to connect two or more power supplies in parallel or series. The 62000H Series supplies have a smart Master / Auxiliary control mode, making series/parallel operation fast and simple. In this mode, the master scales values and downloads data to slave units  , so programming is simple and current sharing automatic.

Features:

• Power range: 15 kW
• Voltage range: 0 to 600 V
• Current range: 0 to 25 A
• High power density (15 kW in 3U)
• Easy parallel & series operation up to 150 kW
• Precision V&I measurements
• High-speed programming
• Voltage & current slew rate control
• Digital encoder knobs, keypad, and function keys
• Current sharing operation
• Voltage ramp function (time range: 10 ms ~ 99 hours)
• Auto sequencing programming: 10 programs / 100 sequences
• OVP, current limit, thermal protection
• Standard analog programming interface
• Standard USB / RS232 / RS485 interface

• Remote output ON / OFF (I / P)
• Remote sense line drop compensation
• LabView and Labwindows
• Solar array simulation function
• Shade I-V curve simulation
• I-V curve programming: 10 programs / 100 I-V files
• CE Certified
• 440 to 480 Vac, 47 to 63 Hz, three-phase (3-wire) + ground) operation
• Weight: 35 kg (77.09 lbs); Dimensions (HxWxD) 132.8 x 428 x 610 mm / 5.23 x 16.85 x 24.02 inches

Please see the Datasheet for complete details and specifications.
