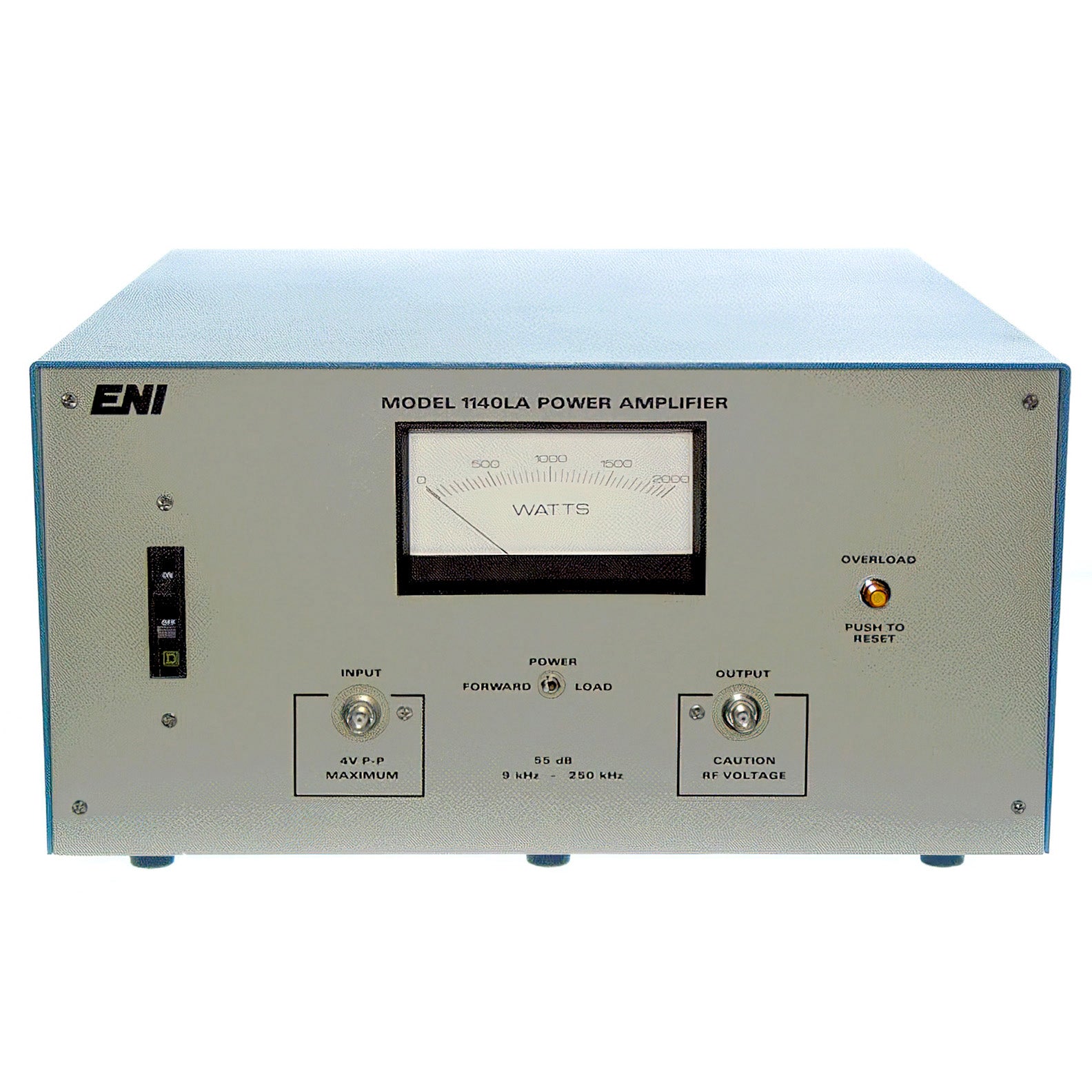

ENI 1140LA RF Power Amplifier, 9 kHz to 250 kHz, 1100 W, 50 dB

ENI MPN: 1140LA
REFURBISHED & TESTED 6-MONTH WARRANTY ALSO AVAILABLE FOR RENT

Price:
Sale price$5,995.00 USD
Stock:
In stock - Ships in 1 to 2 Business Days

Description

ENI 1140LA RF Power Amplifier, 9 kHz to 250 kHz, 1100 W, 50 dB

The 1140LA is an all solid state power amplifier operating over the range of 9 kHz to 250 kHz with a flat gain of 55 dB. Its 50 ohm input is compatible with any laboratory signal generator, function generator, or integrated circuit oscillator. Any load impedance (from an open to a short circuit) may be connected to the output of the 1140LA without fear of damage or oscillation. The 1140LA delivers maximum power transfer to a 50 ohm load impedance, however, any load impedance between 2 and 800 ohms can be driven by connecting a matching transformer between the output and the load. A built-in true average power meter measures both the power leaving the 1140LA (forward power) and the power absorbed by the load (load power).

Features:

  • Frequency Range: 9 kHz to 250 kHz
  • 1100 W output power
  • 55 dB gain (nominal)
  • Front panel metering
  • 50 Ohm impedance
  • BNC(f) connectors, input/output
  • 115 Vac, ± 6%; 50 to 60 Hz operation
  • Weight: 50 lb; Size: 222 mm (8.75 in)H x 432 mm (17.0 in)W x 514 mm (20.25 in)D

Please see Datasheet for complete details and specifications.
