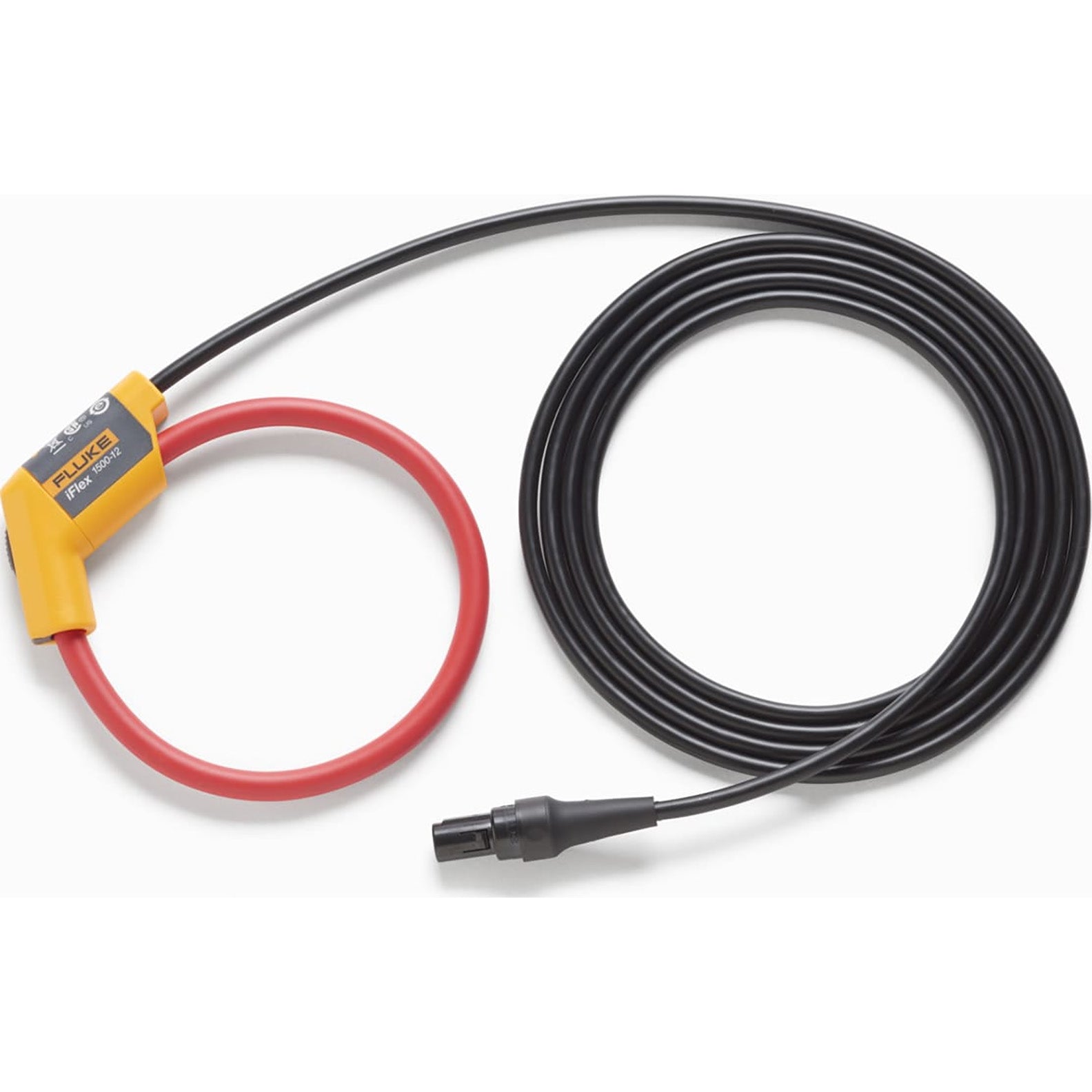

Fluke i17XX-FLEX1500-12 Flexible Current Probe

Fluke i17XX-FLEX1500-12 Flexible Current Probe

The Fluke 17XX 12-inch iFlex flexible current probes measure to 1500 A AC while providing the ultimate measurement flexibility. The iFlex probes connect directly to the 17XX Energy or Power Logger, displaying current measurements without error-prone scaling factors. The 1.8 m (6 ft) cord allows separation between the measurement location and the energy logger, making it easier to view the display.

Features:

• Voltage: 1000 V
• Current: 1500 A
• Measuring range: 150 A ac/10 to 1500 A ac
• Nondestructive current: 100 kA (50/60 Hz)
• Accuracy 173x + iFlex: ± (1 % of reading + 0.02 % of range)
• Working voltage: 1000 V CAT III, 600 V CAT IV
• Probe cable length: 305 mm (12 in)
• Probe cable diameter: 7.5 mm (0.3 in)
• Minimum bending radius: 38 mm (1.5 in)

• Output cable length: 2 m (6.6 ft)


Please see the Datasheet for complete details and specifications.
