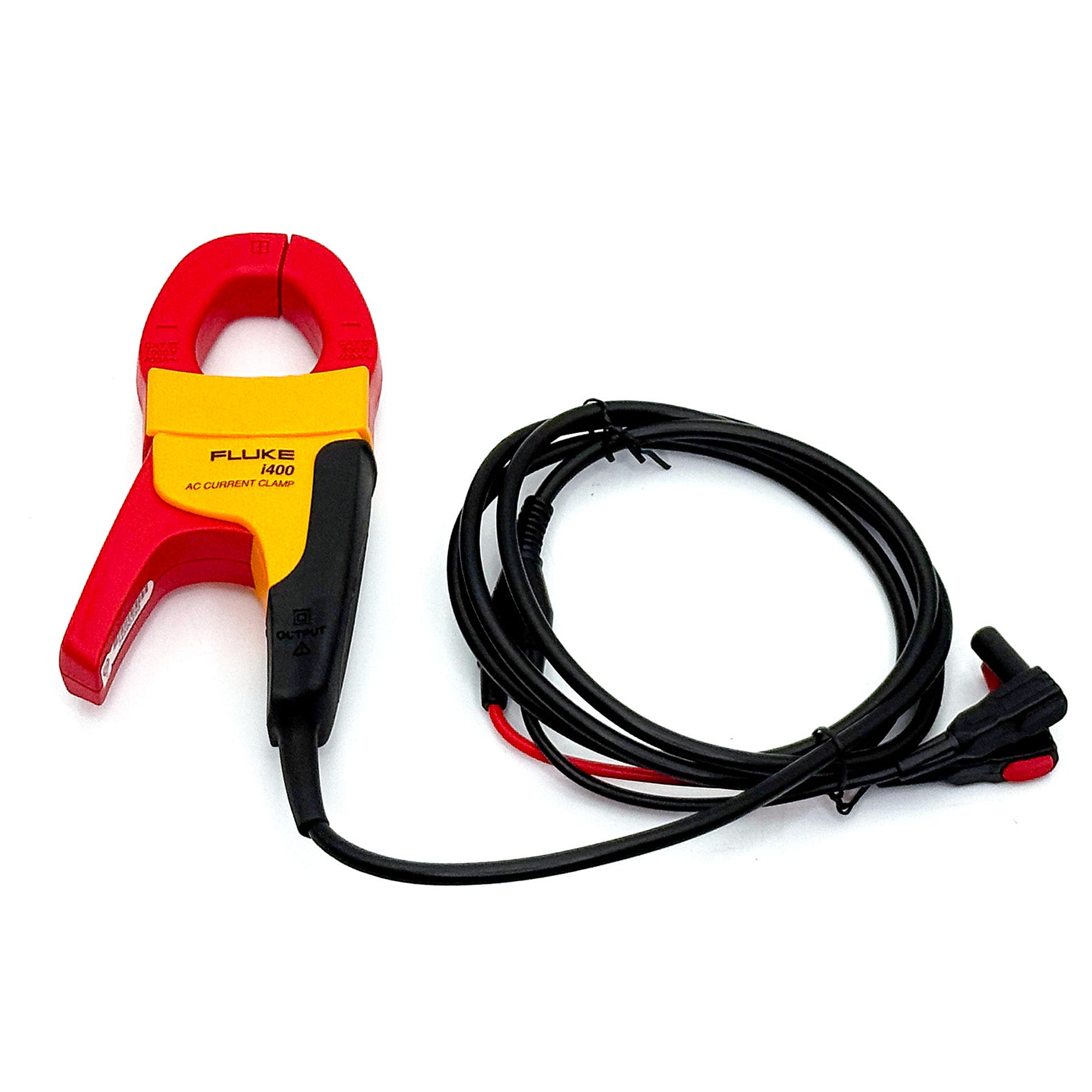

Fluke i400 AC Current Clamp

Fluke i400 AC Current Clamp

The Fluke i400 AC Current Clamp is a high-safety current clamp for digital multimeters. The current clamp provides accurate current measurements without breaking electrical circuits, helping you take measurements safely while meeting industry-standard safety ratings.

Features:

• Nominal current range: 400 A
• Continuous current range: 1 A to 400 A
• Maximum non-destructive current: 1000 A
• Lowest measurable current: 1 A
• Basic accuracy: 2% + 0.06 A (45-400 Hz) (% reading + floorspec)
• Usable frequency: 5 Hz to 20 kHz
• Output level(s): 1 mA/A
• Safety Specifications: Safety CAT IV 600 V, CAT III, 1000 V
• Companion to your DMM to measure up to 400 A AC
• 1 mA/Amp output guarantees easy reading on your meter
• Only current clamp available with a CAT IV 600 V / CAT III 1000 V safety rating
• Specially designed to offer maximum utility in a very compact shape
• Take accurate current readings without breaking the circuit
• Soft, non-slippery overmold handle prevents accidental touching of live wiring
• Max. conductor Ø: 32 mm

• Output cable length: 1.5 m (59 in)
• Connectors: Shrouded banana plugs

Please see the Datasheet for complete details and specifications.
