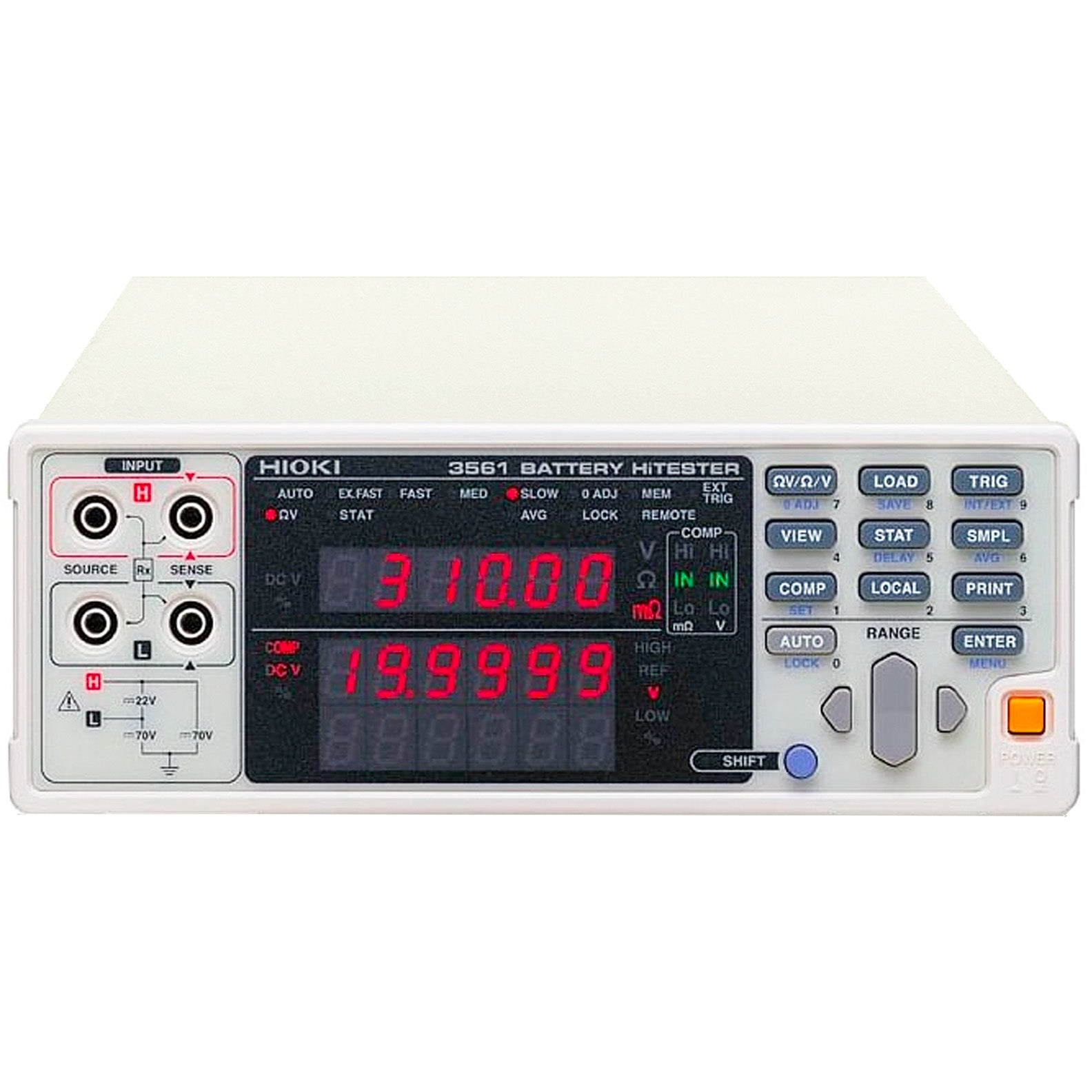

The 3561 is a wide-range 300 mΩ to 3Ω/20V DC battery internal resistance tester for high-speed production-line testing of small secondary batteries.

Resistance and voltage can be simultaneously judged Hi/IN/Lo by independent comparators. Judgment results are provided on the display, via the beeper, and through the external I/O. The display allows confirming both results at a glance

Measurement Value Storage: Store up to 400 measurement values via an external trigger input for bulk transfer to a computer.

Statistical Calculations: Apply statistical calculations to up to 30,000 data points to facilitate process and quality control.

Features:

• Measurement method: Four-terminal AC (1 kHz) method
• Measurement frequency: 1 kHz ±0.2 Hz
• Rated Input Voltage: ±22 VDC

• Maximum rated voltage to ground: ±60 Vdc

• Functions ΩV, Ω and V

• Measure from 0.01 mΩ to 3.1 Ω
• Resistance measurement ranges: 300 mΩ / 3 Ω
• Measure from ± 0.1 mVdc to ± 19.9999 Vdc
• Voltage measurement range: 20 V

• Sampling rate: Four steps – Extra Fast, Fast, Medium, or Slow
• Response time: 10 ms
• Measurement Error Detection: Detects test probe contact failure and broken leads for 100% measurement reliability.
• Self-Calibrating: Minor drift and gain fluctuations within the internal measurement circuitry are automatically corrected to maintain high accuracy.
• Averaging Function: Stable readings can be consistently obtained by averaging two to 16 measurements.

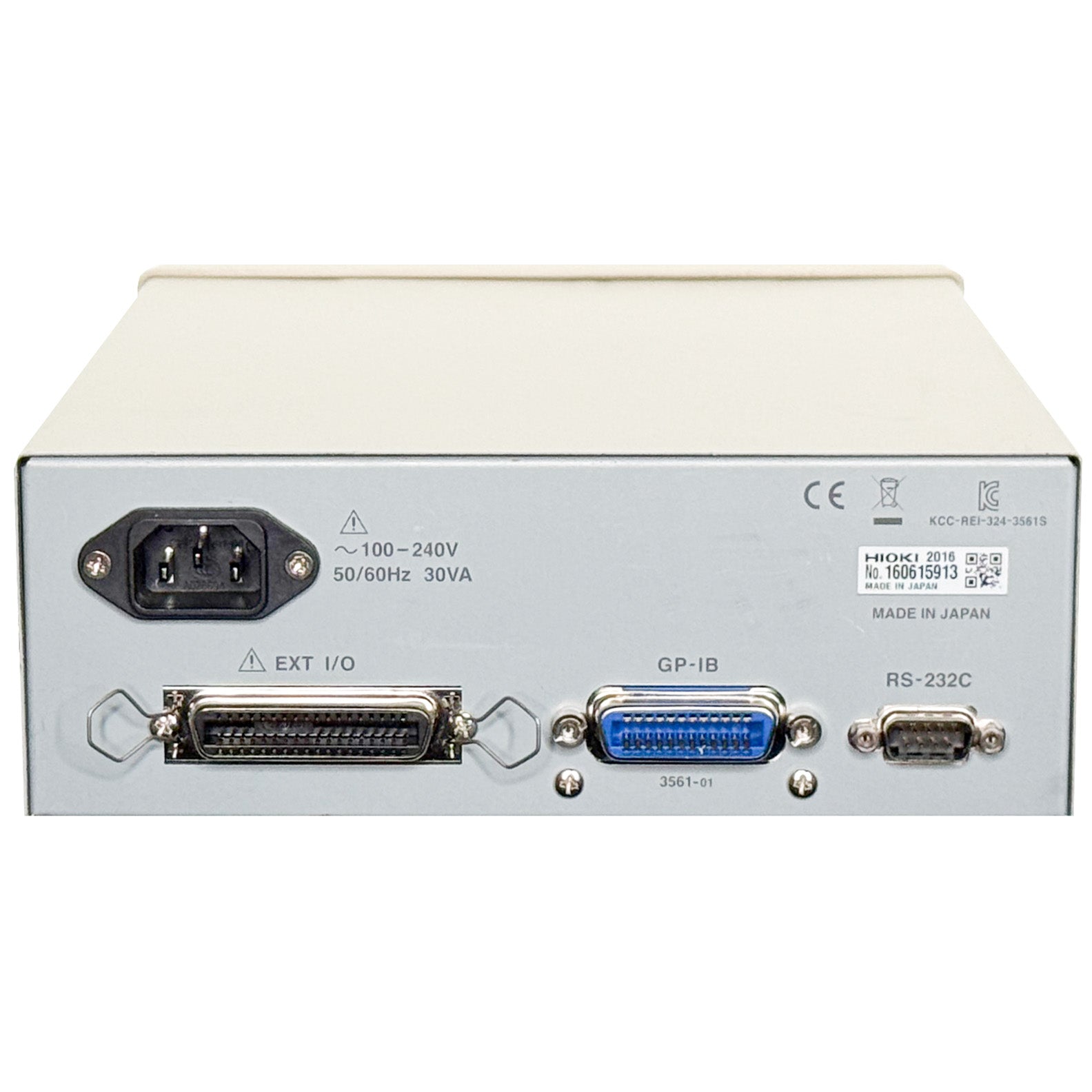

• RS-232 Interfaces
• Operation: 100 to 240 Vac (auto-selecting); 50/60 Hz

Please see the Datasheet for complete details and specifications.
