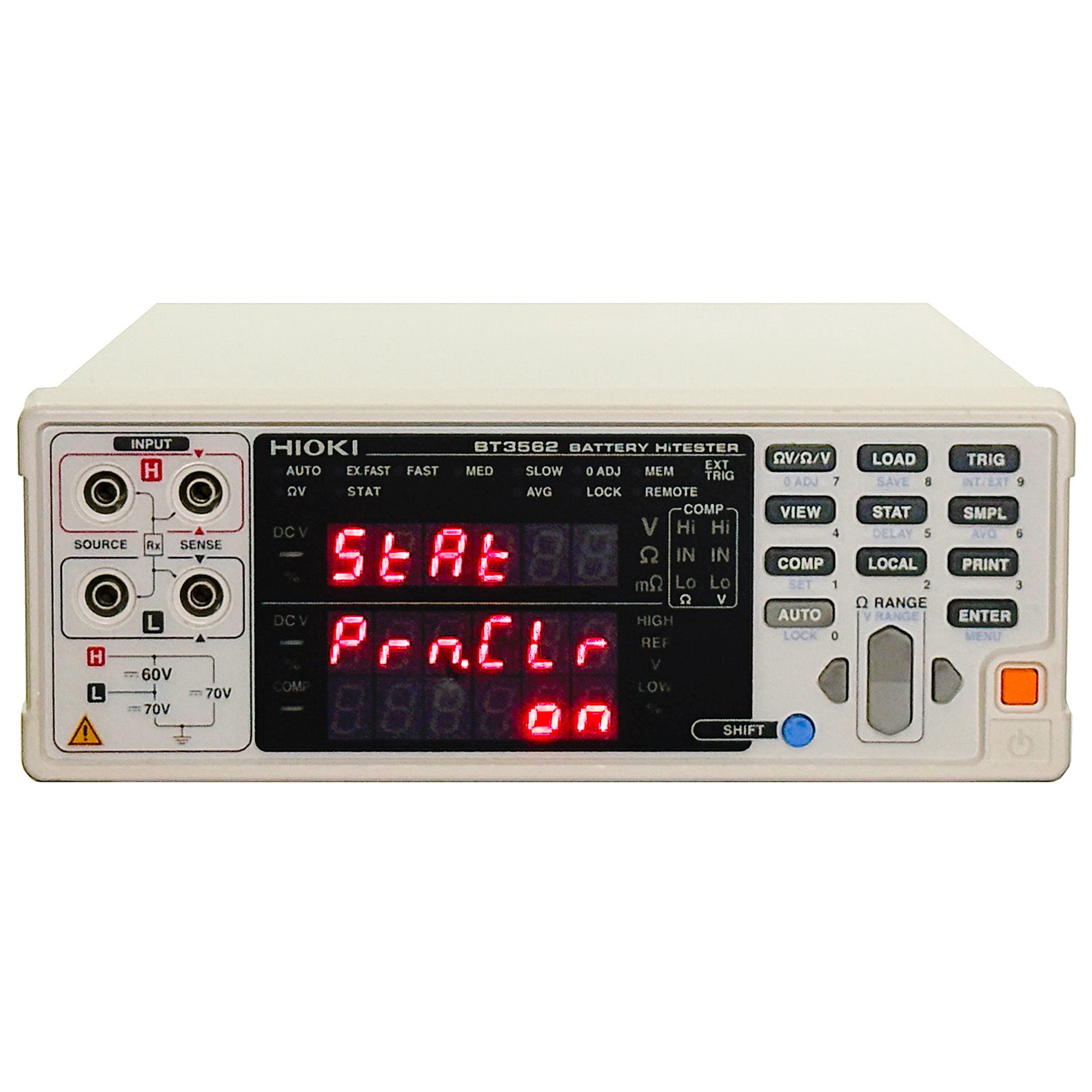

Hioki BT3562 Battery HiTester, 60 Vdc with Analog Output

Hioki BT3562 Battery HiTester, 60 Vdc with Analog Output

The BT-3562 makes simultaneous high-speed measurements of internal resistance and battery voltage for the ever-expanding production lines of increasingly larger lithium-ion low-resistance batteries and other battery packs for high-voltage applications. The BT3562 can measure the voltage and resistance of coin-size to large-cell batteries, up to 60 V, almost simultaneously due to its fast response time.

Features:

• Measurement method: Four-terminal AC (1 kHz) method
• Measurement frequency: 1 kHz ±0.2 Hz
• Rated input voltage ±70 Vdc
• Maximum rated voltage to earth: ±60 Vdc

• Functions ΩV, Ω and V

• Measure from 0 Ω to 3.1 kΩ (minimum resolution 0.1 μΩ)
• Resistance measurement ranges: 3 mΩ/30 mΩ/300 mΩ/3 Ω/30 Ω/300 Ω/3 kΩ
• Measure from 0 V DC to ±60 V DC (minimum resolution 10 μV)
• Voltage measurement ranges: 6 V/60 V

• Sampling rate: Four steps – Extra Fast, Fast, Medium, or Slow
• Response time: 10 ms
• Measurement Error Detection: Detects test probe contact failure and broken leads for 100% measurement reliability.
• Self-Calibrating: Minor drift and gain fluctuations within the internal measurement circuitry are automatically corrected to maintain high accuracy.
• Averaging Function: Stable readings can be consistently obtained by averaging two to 16 measurements.

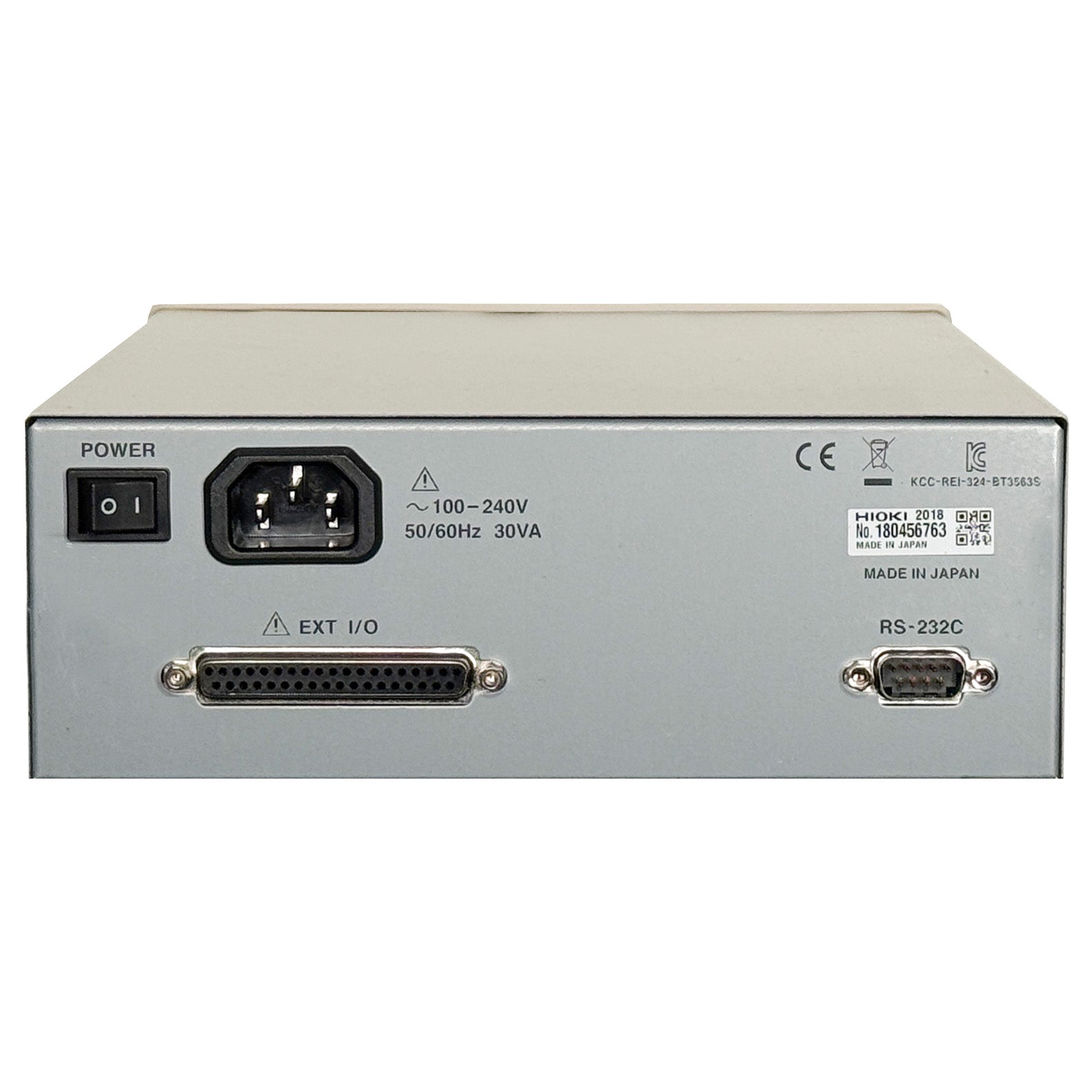

• RS-232 Interfaces
• Operation: 100 to 240 Vac (auto-selecting); 50/60 Hz


Please see the Datasheet for complete details and specifications.
