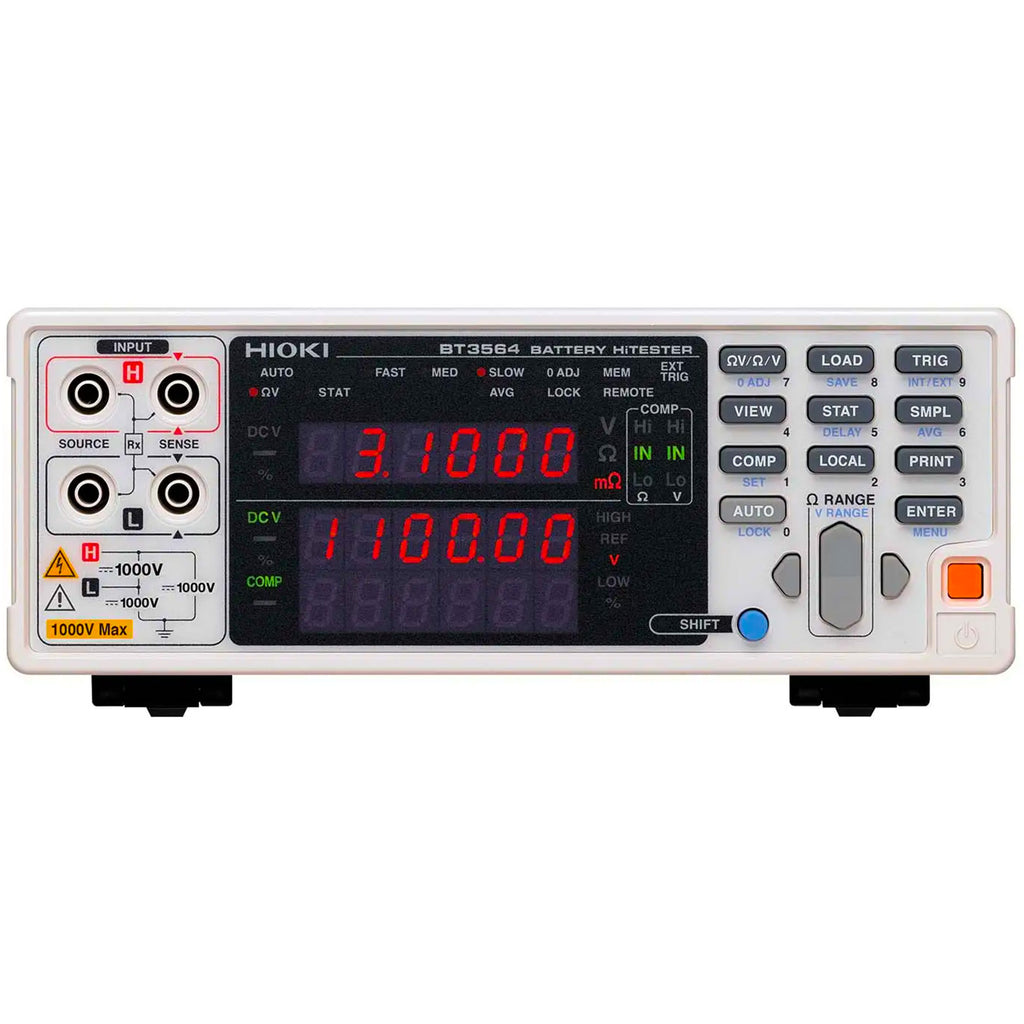

Hioki BT3564 Battery HiTester, 1000 Vdc with GPIB and Analog Output

Hioki BT3564 Battery HiTester, 1000 Vdc with GPIB and Analog Output

The BT-3564 makes simultaneous high-speed measurements of internal resistance and battery voltage for the ever-expanding production lines of increasingly larger lithium-ion low-resistance batteries and other battery packs for high-voltage applications. The BT3564 can measure the voltage and resistance of coin-size to large-cell batteries up to 1000 V almost simultaneously due to its quick response time.

Features:

• Measurement method: Four-terminal AC (1 kHz) method
• Measurement frequency: 1 kHz ±0.2 Hz
• Rated input voltage ±1000 Vdc
• Maximum rated voltage to earth: ±1000 Vdc

• Functions: Ω and V

• Resistance measurement ranges: 3 mΩ/30 mΩ/300 mΩ/3 Ω/30 Ω/300 Ω/3 kΩ
• Voltage measurement ranges: 6 V/10 V/60 V/100 V/300 V/1000V

• Sampling rate: Four steps – Extra Fast, Fast, Medium, or Slow
• Response time: 700 ms
• Measurement Error Detection: Detects test probe contact failure and broken leads for 100% measurement reliability.
• Self-Calibrating: Minor drift and gain fluctuations within the internal measurement circuitry are automatically corrected to maintain high accuracy.
• Averaging Function: Stable readings can be consistently obtained by averaging two to 16 measurements.

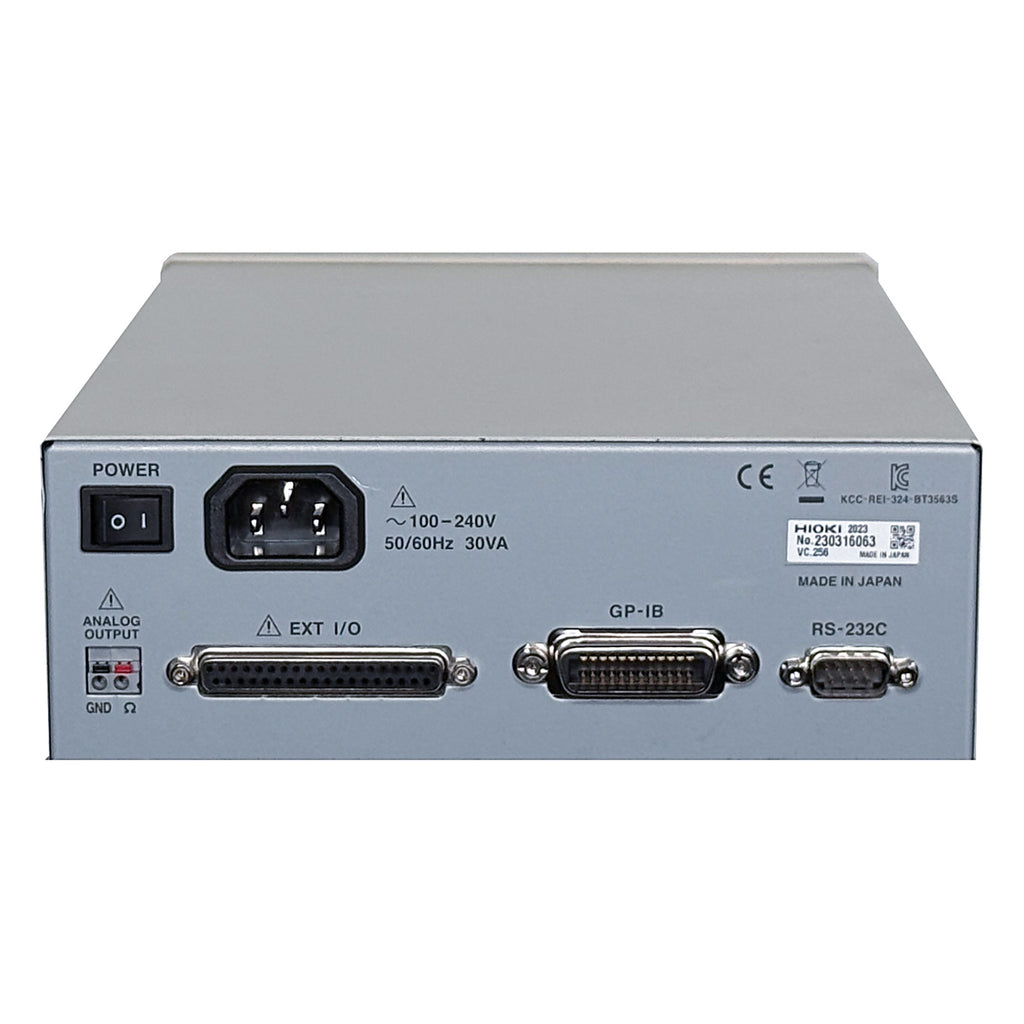

• GPIB and RS-232 Interfaces
• Operation: 100 to 240 Vac (auto-selecting); 50/60 Hz

Please see the Datasheet for complete details and specifications.
