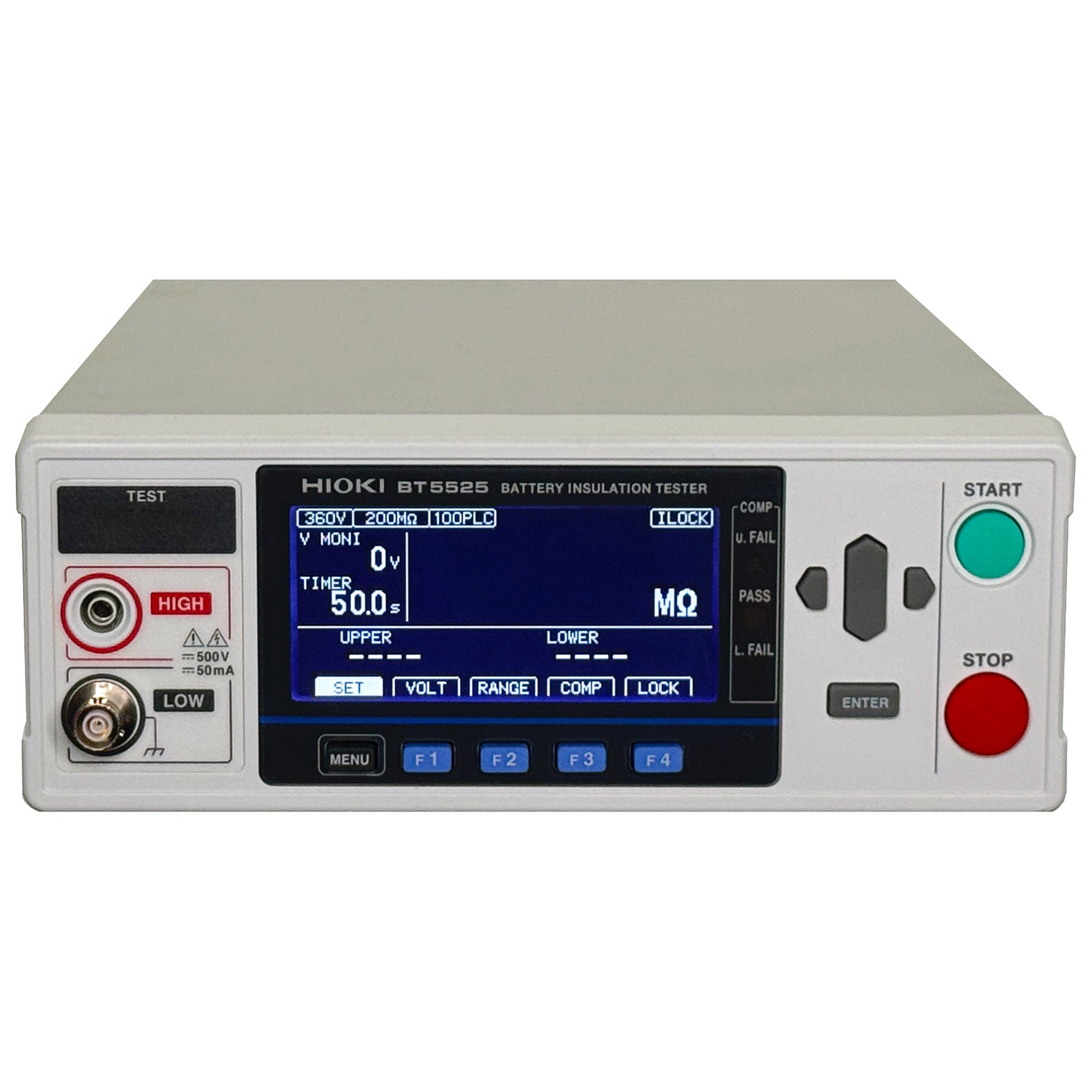

Hioki BT5525 Battery Insulation Tester, 500 Vdc with USB, LAN, GPIB and Analog Output

Hioki BT5525 Battery Insulation Tester, 25 to 500 Vdc with USB, LAN, GPIB, and Analog Output

The BT-5525 is an insulation resistance tester that generates DC voltage and tests the insulation resistance of instruments, parts, batteries, etc. It’s capable of high-speed testing using user-configured test voltages. With the Break Down Detect (BDD) function, micro short circuits and contaminations (metal foreign substances) can be detected during an insulation resistance test before battery liquid injection. In addition, this instrument can be widely used in manufacturing/test lines for research and development since ample communications interfaces are provided as standard equipment.

With the Measurement and Charging Current Limit Function, the charging current can be limited from 50 μA to 50 mA as desired; settings can be adjusted to achieve the optimal test time for the device under test (DUT) with a capacitive load.

Any test voltage can be set between 25 V and 500 V with a resolution of 1 V. With the comparator function and test time function, insulation resistance tests can be performed in accordance with various standards.

Contact check function for detecting contact defects and broken wiring connections. The contact condition is checked by monitoring the electrostatic capacitance between test points. This function helps improve the test quality.

The Automatic discharge function, after the test, discharges the electric charge stored in the DUT into the instrument, which can prevent damage to other instruments during the next test.

*The instrument is not able to perform measurements by itself. Please purchase optional test leads separately as appropriate for your measurement application. The LOW terminal is a dedicated HIOKI connector, so only the optional L2131 or L2133 can be connected.

Features:

• Insulation resistance test
• Break Down Detect function (BDD)
• Contact check function
• Output voltage: 25 V to 500 V, Setting resolution 1 V
• Charging current  (Current limit function): 50 µA to 50 mA, Minimum setting resolution 10 μA
• Short-circuit current: 60 mA or less
• Discharge current: 40 mA or greater
• Resistance value display range: 0.050 MΩ to 9999 MΩ
• Resistance range: 2 MΩ, 20 MΩ, 200 MΩ, 2000 MΩ, AUTO
• Test time: 0.050 s to 999.999 s, OFF
• Comparator delay time: 0.001 s to 999.999 s, AUTO
• Display update speed: 1 PLC
• Sampling time: 1 PLC to 100 PLC
• Panel save function: Saves up to 15 sets of measurement conditions
• Measured value memory function: Saves up to 999 measured values in the instrument's internal memory judgment functions
• Test modes: Continuous test, PASS STOP, FAIL STOP
• Comparator function: UPPER FAIL: Measured value > upper limit value; PASS: Upper limit value ≥ measured value ≥ lower limit value; LOWER FAIL: Measured value < lower limit value
• Break Down Detect function (BDD): Detecting minuscule insulation defects caused by contamination
• Contact check function: 2-terminal capacitance measurement method
• Automatic data output function: Automatic output of measurement results via the communication interface after completion of the test
• Command monitor function: Screen display of commands being sent and received
• External I/O monitor function: Screen display of output signal ON/OFF and input signal status
• Analog output function: Converts measured values to 0 to 4 Vdc and outputs Basic Specifications
• Standard compliance Safety: IEC 61010 EMC: IEC 61326

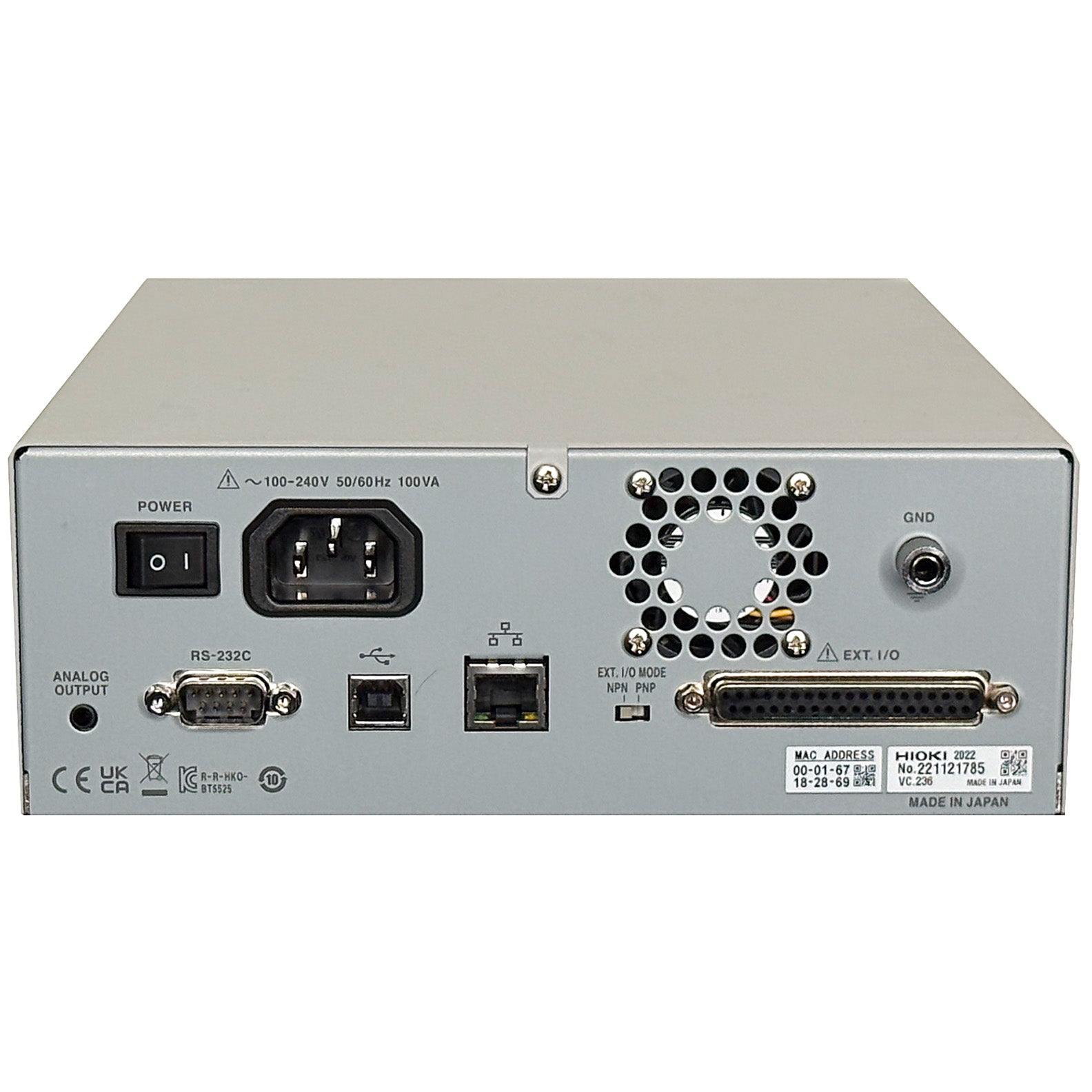

• USB, LAN, GPIB, RS-232, and EXT. I/O Interfaces
• Operation: 100 to 240 Vac (auto-selecting); 50/60 Hz

Please see the Datasheet for complete details and specifications.
