Hioki CT6877 AC/DC Current Sensor, 2000 A, 1 MHz

Hioki CT6877 AC/DC Current Sensor, 2000 A, 1 MHz

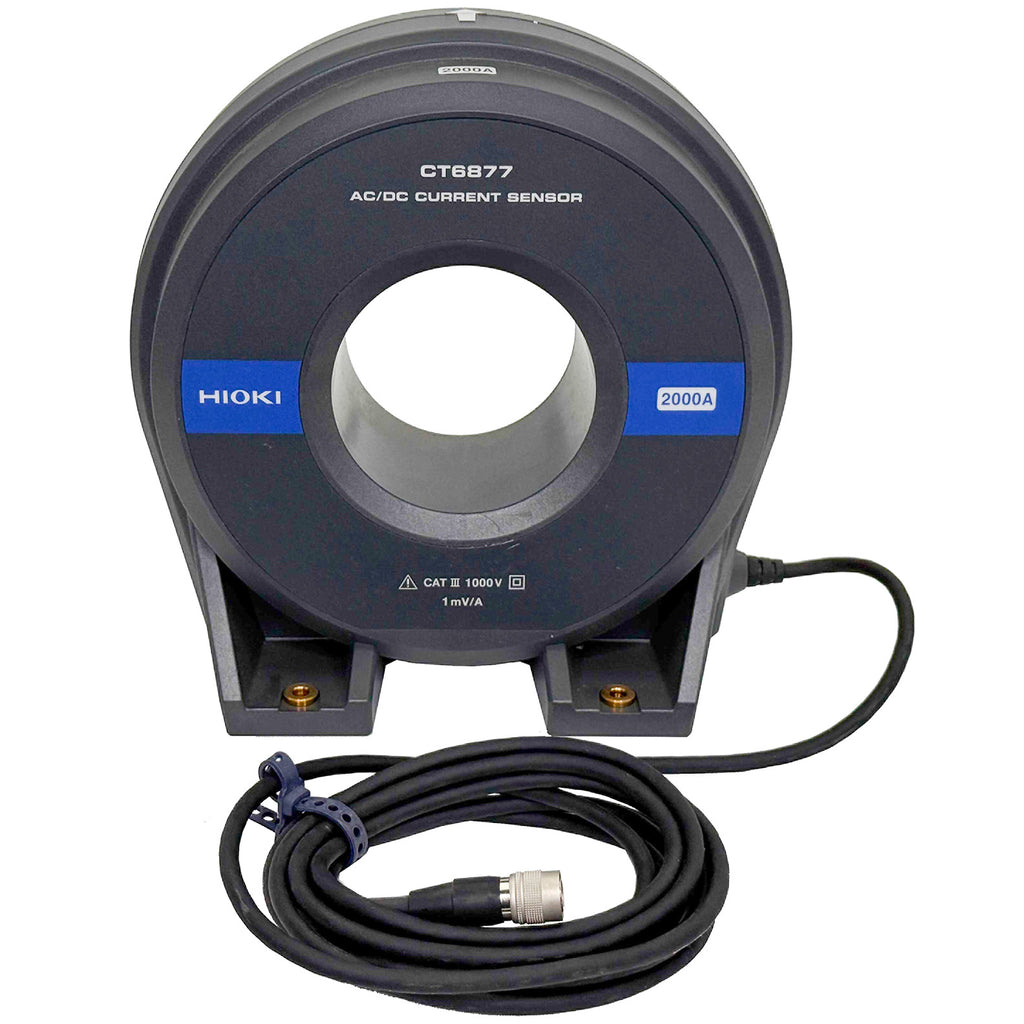

The Hioki CT6877 AC/DC pass-through current sensor can be connected directly to Hioki Power Analyzers and Memory HiCorders. Also, it can be connected to Power Meters, Oscilloscopes, DMMs, etc., by using an optional sensor unit.

The CT6877 has a frequency bandwidth of DC to 1 MHz and a rated current of 2000 A. It can easily handle large current measurements of electric vehicles such as EVs and HEVs. The CT6877 is also used for R&D, quality evaluation, manufacturing, and maintenance in markets such as wireless charging systems, inverter motors for industrial equipment, power conditioners for PV, and quick charging facilities for EVs.

Features:

• Frequency: DC to 1 MHz
• Rated Current: 2000 A
• Output voltage 1 mV/A
• Offset voltage ±10 ppm Typical (23℃, no input)
• Linearity ±10 ppm Typical (23℃)
• Output impedance 50 Ω ±10 Ω

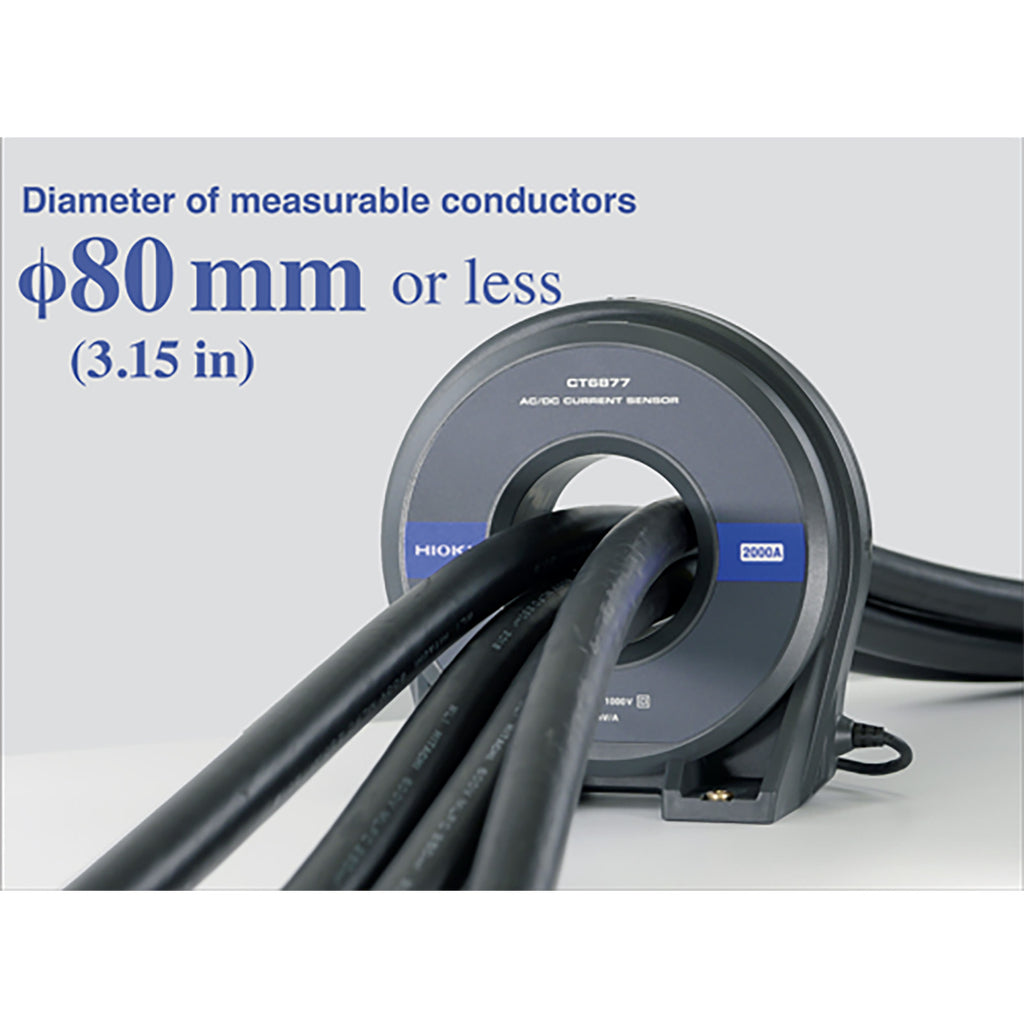

• Diameter of measurable conductors: 80 mm (3.15 in) or less
• ME15W terminal
• Cable Length: 3 m (9.84 ft)


Please see the Datasheet for complete details and specifications.
