The Itech IT6018C-500-120 bi-directional programmable DC power supply of the IT6000C series combines two functions in one: source and sink with energy regeneration. Based on these two functions, the IT6000C series offers two-quadrant operation. The regenerative capability enables the energy consumed to be returned to the grid cleanly, reducing energy and cooling costs while not interfering with the grid. The IT6000C series provides 7 voltage grades, with a max. output voltage up to 2250 V, supports master-slave paralleling with averaging current distribution, max. output power up to 1.152 MW. The built-in waveform generator supports generating arbitrary waveforms and importing LIST files via the front-panel USB port. IT6018C-500-120 is the combination of high reliability, high efficiency, safety, and multiple measurement functions.

Features:

• Output Voltage: 0 to 500 Vdc
• Output Current: 0 to 120 A
• Output Power: 18,000 W
• Load Regulation: Voltage ≤0.02% FS, Current ≤0.05% FS
• Setup Resolution: Voltage 0.01 V, Current 0.01 A, Power 0.001 kW
• Readback Resolution: Voltage 0.01 V, Current 0.01 A, Power 0.001 kW
• Frequency
• Ripple (20 Hz -20 MHz): Voltage ≤200 mVpp (MAX: 500 mVpp), Current ≤0.1%FS RMS
• Adopts third-generation SiC technology, integrates source and sink functions in one unit
• High power density up to 18 kW in compact 3U rack space
• Seamless current switch between sourcing and sinking
• High regenerative efficiency up to 95%

• Full protections: support OVP, ±OCP, ±OPP, OTP, power down protection, anti-islanding protection
• Support CC/CV priority setting, and different loop speeds can be set
• Partial pre-compliance with LV123, LV148, DIN40839, ISO-16750-2, & SAEJ1113-11, LV124, and ISO21848 testing standards
• Could be used as a battery cycler and support various battery charging and discharging modes, such as CC/CV/CP
• Built-in function generator, supports arbitrary-waveform generation
• Could be used as a PV simulator, simulating the PV curves(with optional SAS1000 software)
• Could be used as a battery simulator (with optional BSS2000 Software)
• Supports multiple working modes; rising and falling times can be adjusted.
• Supports data logging via USB disk, and the shortest sample interval is 10 us
• Strong dynamic driving profile simulation function, up to 10,000,000 points
• Memory capacity to save/recall setting parameters: 100 registers

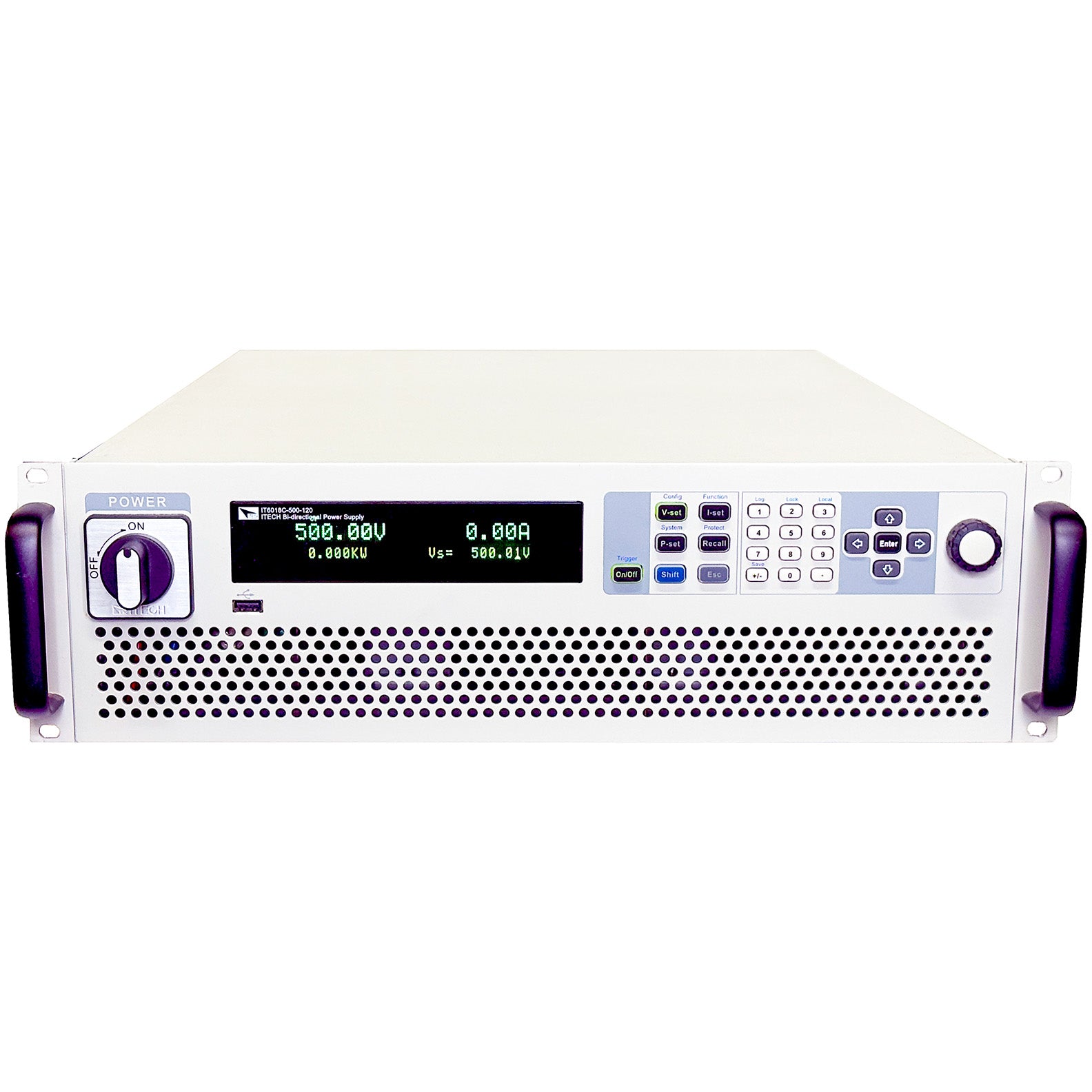

• High-visibility vacuum fluorescent display

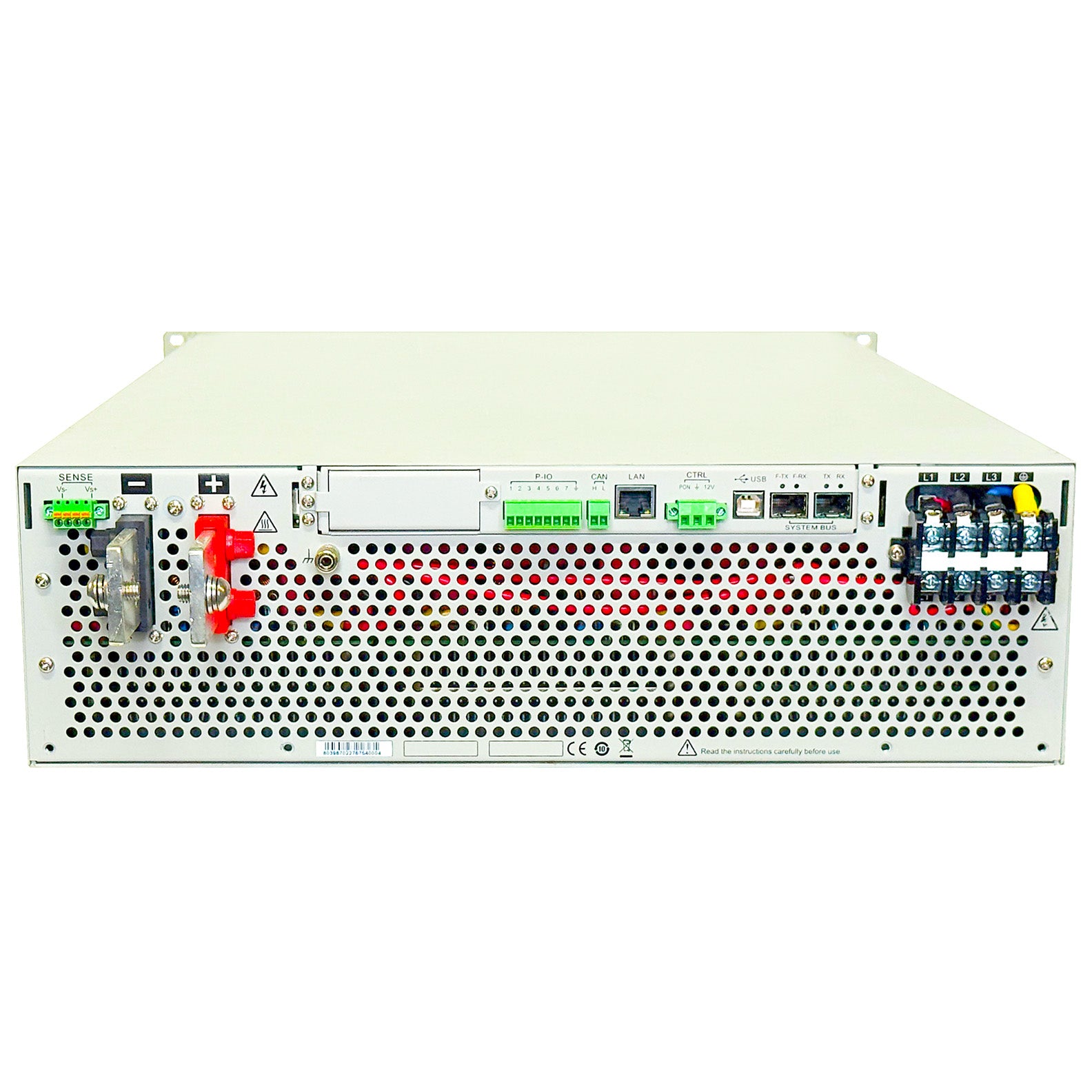

• Interfaces: USB, CAN, LAN, digital I/O
• Line Input Power: 198 to 264 Vac (Decreased output power by 50%), 342 to 528 Vac 3-Phase; 47 to 63 Hz
• Weight: 40 kG; Size (WxHxD): 483 mm x 151.3 mm x 801.6 mm

Please see the Datasheet for complete details and specifications.
