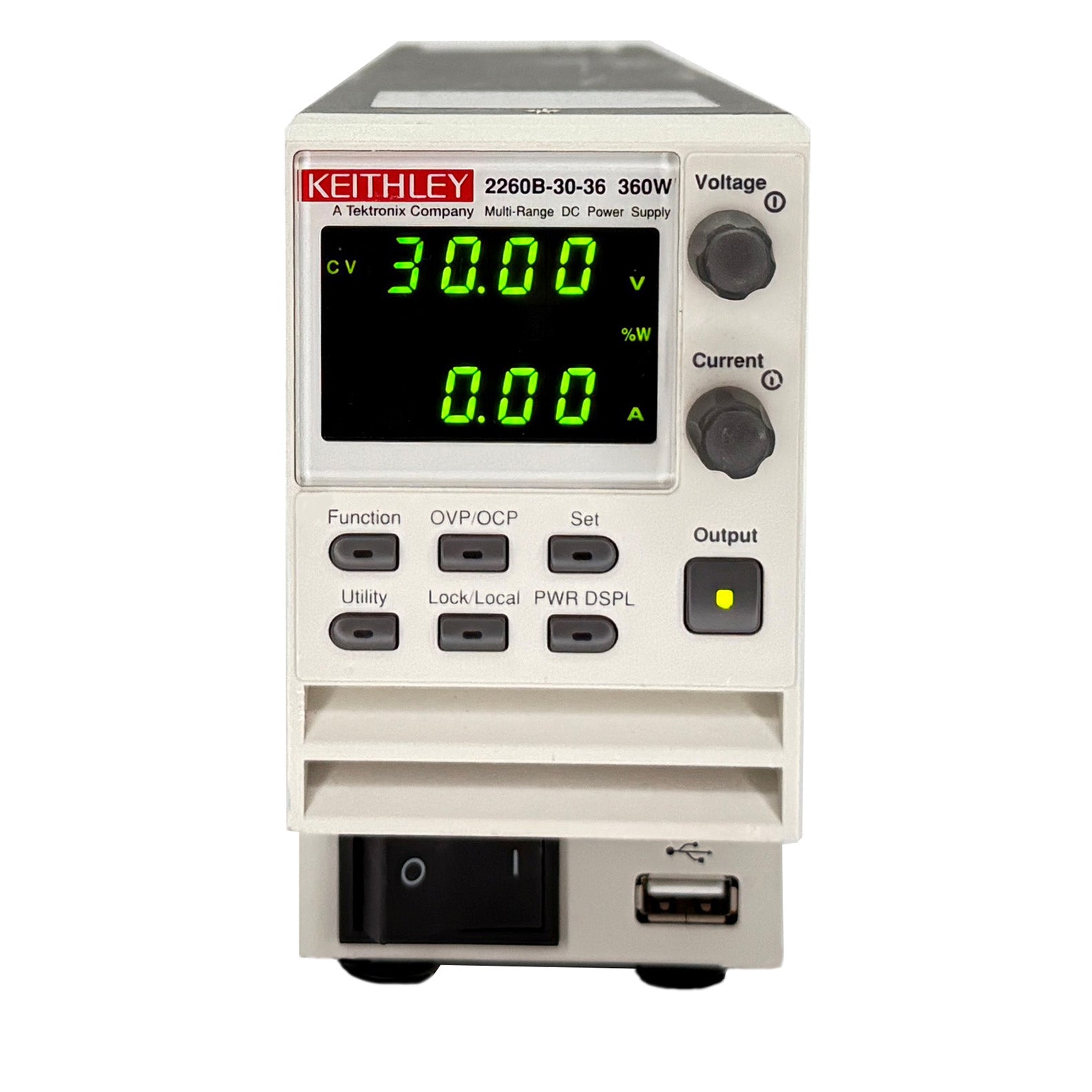

Keithley 2260B-30-36 Programmable DC Power Supply, 0 to 30 V, 0 to 36 A, 360 W, USB

Keithley 2260B-30-36 Programmable DC Power Supply, 0 to 30 V, 0 to 36 A, 360 W, USB

The 2260B-30-36 Programmable DC Power Supply is a flexible DC source designed to power a wide range of applications. The output channel features remote sense capability which can be used to reduce the effect of lead resistance, delivering 0.03% basic voltage accuracy even when using long leads. Basic current accuracy is 0.1% and linear regulation delivers low noise - less than 3 mVp-p. The USB interface makes it easy to build PC-based systems without converters or special cables.

This compact power supply covers a wide range of applications without covering a lot of bench space.

Features:

• Voltage: 0 to 30 V
• Current: 0 to 36 A

• Maximum Power: 360 W V * A output cannot exceed the power rating
• Programmable voltage or current rise and fall times prevents damage to low impedance loads from inrush current
• Constant current priority setting reduces voltage and current overshoot when powering LED's
• Programmable internal resistance simulates battery output
• USB interface standard for remote control
• 120 Vac/240 Vac, 50/60 Hz

Please see Datasheet for complete details and specifications.
