Description

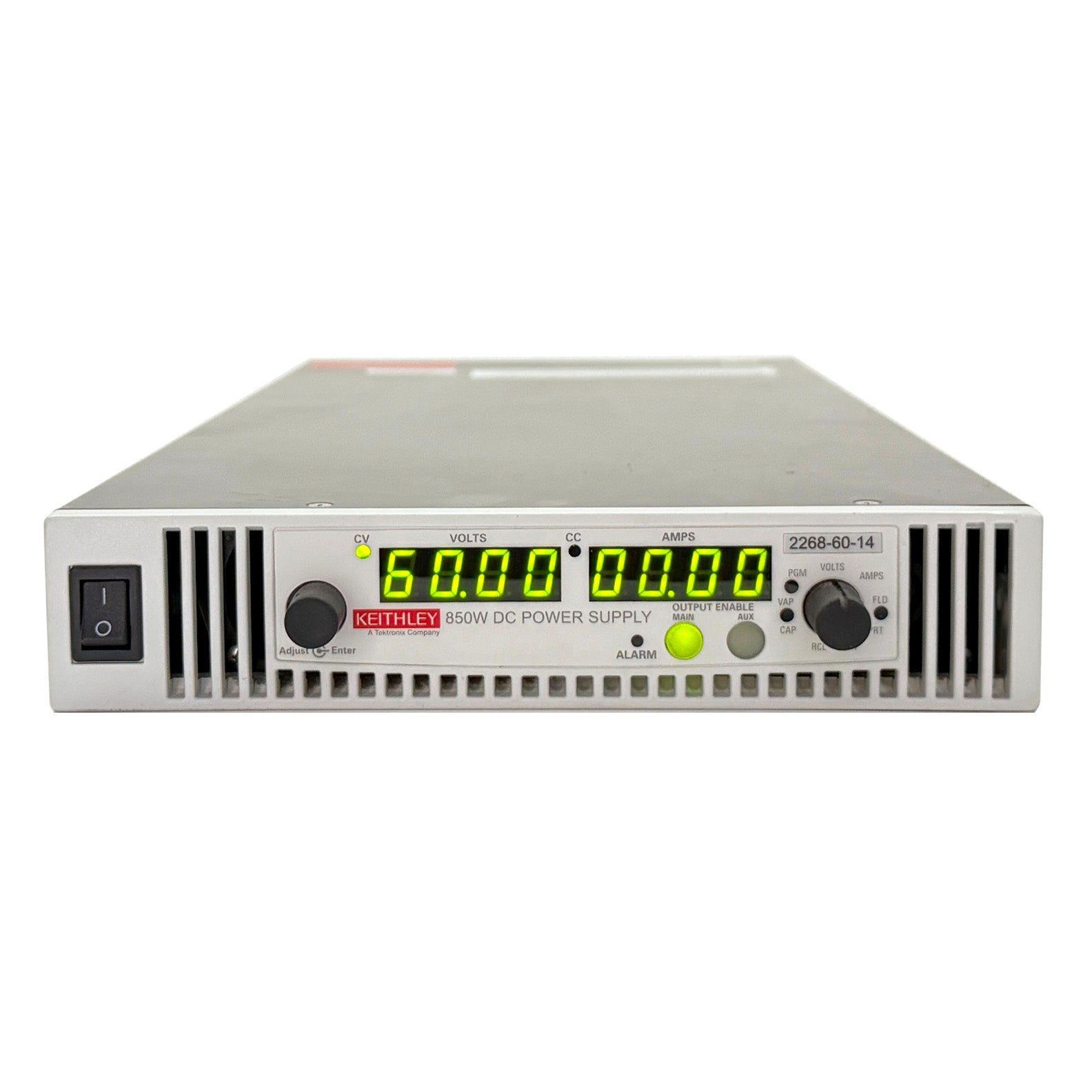

Keithley 2268-60-14 Programmable DC Power Supply, 0 to 60 V, 0 to 14 A, 850 W
The 2268-60-14 Programmable DC Power Supply allows outputting any current, including the maximum current, at any voltage. It provides both analog and digital control options and a number of digital interface options and can operate in constant voltage (CV), constant current (CC), or constant power modes to address a broad array of applications. This high-efficiency, soft-starting power supply provides reliable performance and long life.
850 W in the Most Compact Package - The Series 2268 supplies offer the highest power density in the smallest package. The Series 2268 supplies are packaged in a low profile 1U high, half-rack width enclosure.
Features:
- Voltage: 0 to 60 V
- Current: 0 to 14 A
- Maximum Power: 850 W
- Compact 1U, half-rack enclosure provides the highest power in the smallest package
- Two auxiliary outputs support driving or signaling external devices, often eliminating the need for additional instrumentation
- Isolated analog inputs minimize control line noise

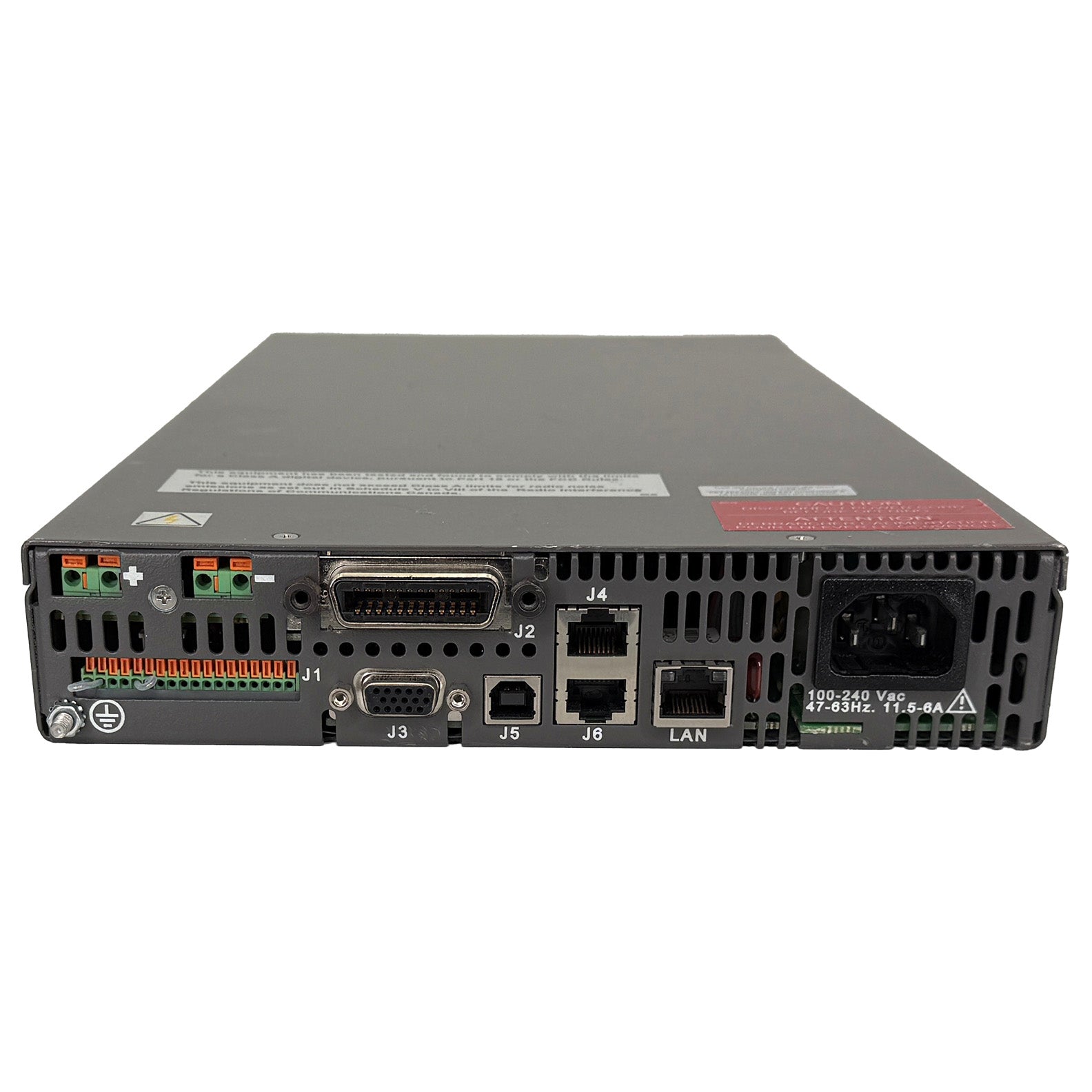

- Built-in LAN, USB, GPIB, RS-232, RS-485 interfaces and analog inputs are all standard
- Constant voltage, constant current, and constant power setting control
- Auto sequence control supports internal execution of commands to minimize bus communication time
- Control up to 30 supplies through a single controller interface
- Foldback mode with programmable delay shuts down the output on transitions between CV and CC operation to protect voltage- or current-sensitive devices
- Numerous safety features protect the load and the supply, including over-voltage and under-voltage protection, over-current protection, overtemperature protection, loop protection for multiple-supply configurations, and a hardware output interlock
- 85 Vac to 265 Vac, single-phase, 47 to 63 Hz, 360 to 440 Hz operation
- Weight: 5 kg (11 lbs); Size: 44 mm high × 214 mm wide × 495 mm deep (1.72 in. × 8.43 in. × 19.48 in.)
Please see Datasheet for complete details and specifications.
