Keithley 237-ALG-2 Triaxial Cable

237-ALG-2 Triaxial Cable

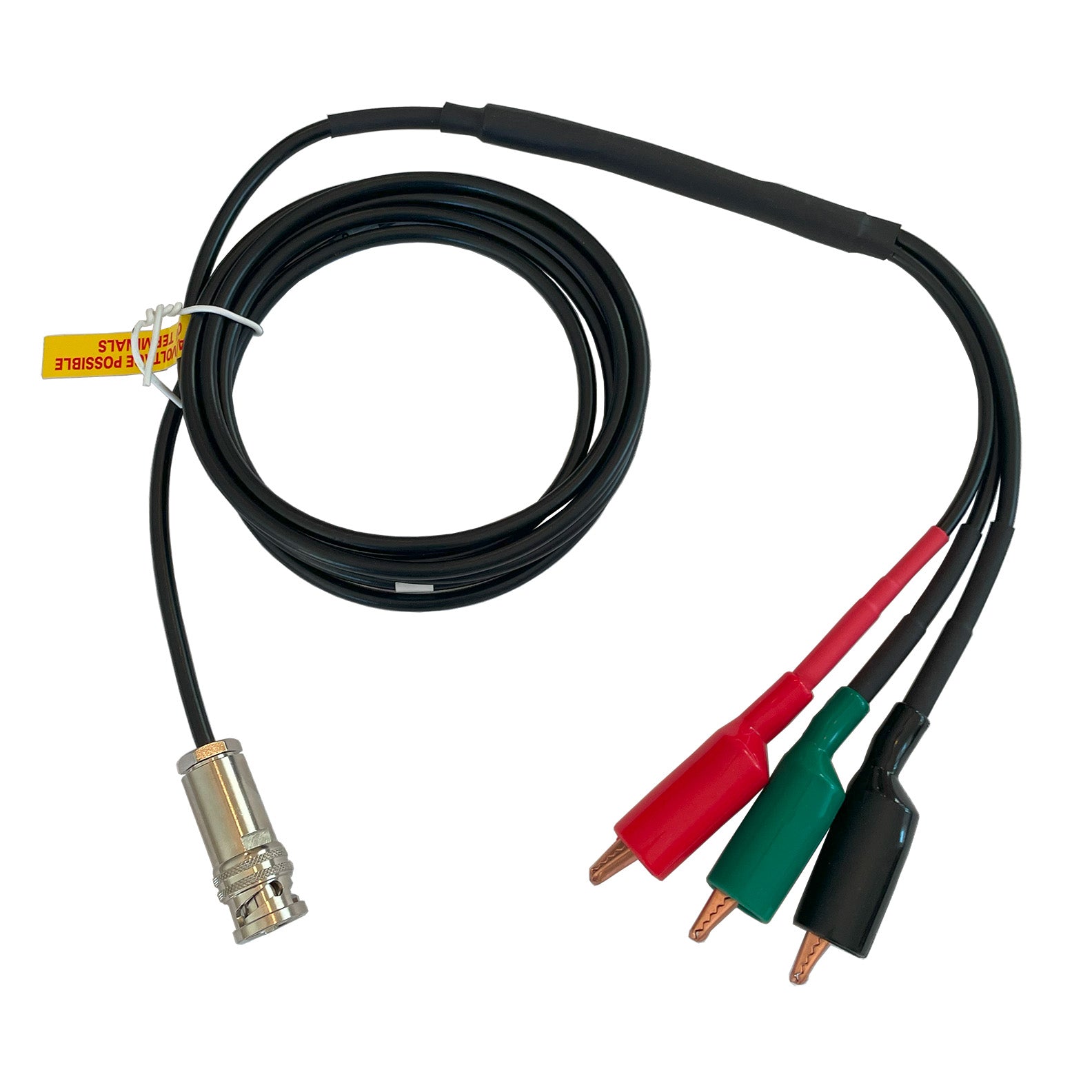

The Keithley Instruments Model 237-ALG-2 is a 2 m (6.6 ft) triaxial cable that is terminated with a three-slot male triaxial connector on one end and alligator clips on the other end.

This cable is designed for use with Keithley source-measure units (SMUs), particularly the Model 237.

Features:

• Working voltage: 600 Vpeak center conductor to inner shield; 1,300 Vpeak center conductor and inner shield to outer shell.
• Contact resistance: < 0.5 Ω
• Insulation resistance: 10¹⁵ Ω, center conductor to inner shield (500 V test voltage, 23 °C at < 40 percent relative humidity).
• Length: 2 meters (6.6 feet)
• Operating environment: 0 °C to 50 °C, up to 70 percent relative humidity at ≤ 35 °C.

Please see the Datasheet for complete details and specifications.
