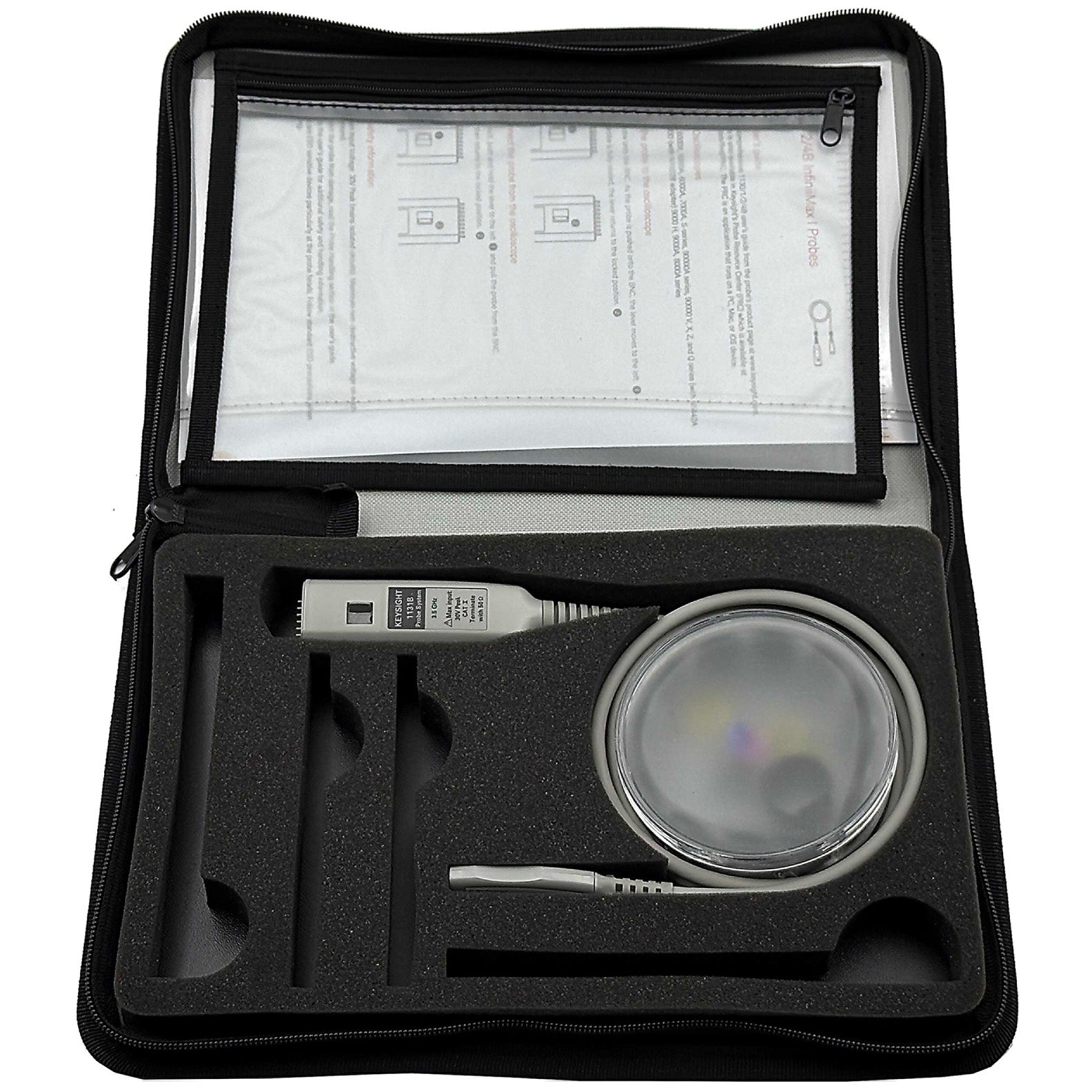

Keysight / Agilent 1131B Differential Probe Amplifier, 3.5 GHz, Single-Ended, 10:1

Keysight / Agilent 1131B Differential Probe Amplifier, 3.5 GHz, Single-Ended, 10:1

The Keysight InfiniiMax 1130B Series probe system supports a wide variety of real-world applications with an extensive lineup of probe heads and accessories. The accessories can meet the most demanding mechanical access requirements. Small probe heads can be placed between densely packed PC boards. Solder-in sockets are available for signals that need frequent measurement. A differential SMA probe head is available to connect to fixtures that have SMA connections. A smart ergonomic design allows users to set the spacing between the probe pins (variable span). When not concerned with minimum probe size, designers can use a browsing sleeve to make holding the probe more comfortable. Both probe tips of the differential probe can “flex” to support various probing angles and target system characteristics (Z-axis compliance). Innovative damped-wire accessories compensate for the inductance and capacitance associated with the leads, and prevent distortion of the measured signal.

The groundbreaking design of the Keysight InfiniiMax 1130B probe system also enables users to make either single-ended or differential measurements from a single probe amplifier, depending on their choice of probe head and accessory. This can result in significant savings in cost and time. The common mode rejection of the differential probe head reduces a measurement’s noise floor. Overall, the Keysight 1130 Series probing system delivers unmatched performance, accuracy, and connectivity.

Order one or more probe heads or connectivity kits per amplifier (These are sold separately)

Features:

• Bandwidth: 3.5 GHz
• DC attenuation ratio: 10:1 / 5:1
• Rise and fall time (10 to 90%): 100 ps
• Input impedance: 50 kΩ ?/ 0.27 pF (Differential); 25 kΩ // 0.44 pF (Single-ended)
• Max input voltage: 30 V peak (mains isolated)
• InfiniiMax probe amplifier provides ultra-low loading of DUT and superior signal fidelity
• Low capacitance, flat frequency response, and patented resistor probe tip technology
• AutoProbe interface for auto configuration and probe power
• 1131B is a RoHS-compliant version of the 1131A, 100% form, fit, function, and price equivalent
• Probes support a variety of applications with an extensive list of probe heads and accessories
• Shipping weight: 4 lb

Please see the Datasheet for complete details and specifications.
