Keysight / Agilent 11664E Detector .01 to 26.5 GHz, APC-3.5 mm(m), for 8755/8756/8757 Series

Keysight / Agilent MPN: 11664E
REFURBISHED & TESTED 6-MONTH WARRANTY ALSO AVAILABLE FOR RENT

Price:
Sale price$995.00 USD
Stock:
In stock - Ships in 1 to 2 Business Days

Description

Keysight / Agilent 11664E Detector .01 to 26.5 GHz, APC-3.5 mm(m), for 8755/8756/8757 Series

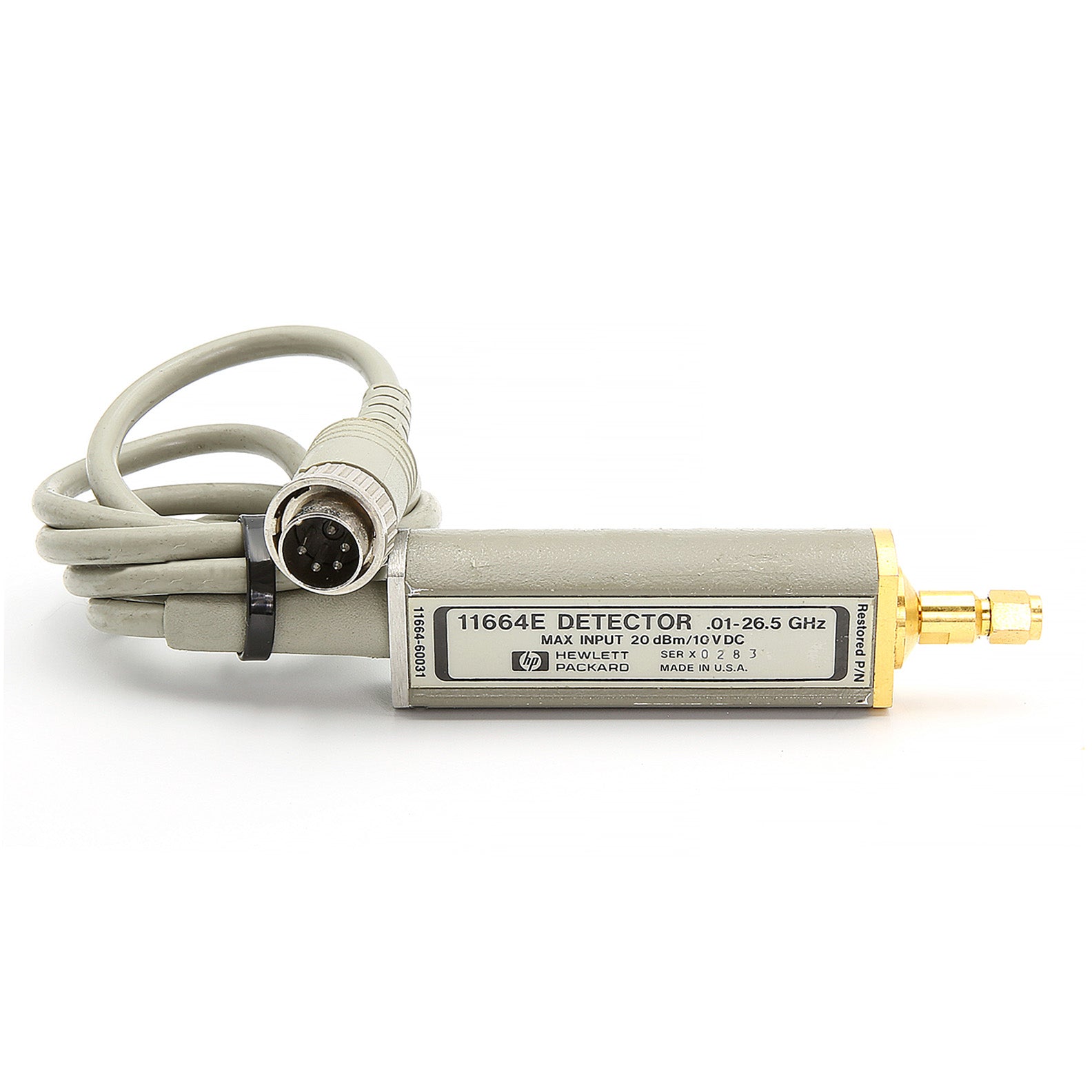

The11664E Detector consists of a single Schottky diode housed in a metal frame with an APC 3.5 connector. RF signal levels (dependent upon scalar network analyzer used) from -60 to + 16 dBm in the frequency range of 10 MHz to 26.5 GHz can be detected. The 11664E detector requires the use of either an 8755C/8756A/8757A scalar network analyzer (recommended equipment). The use of three 11664E detectors, or two detectors and a bridge, enables simultaneous (amplitude only) transmission and reflection measurements via the analyzer CRT. The supplied cable markers are used for identification when more than one detector is used in a test setup.

Features:

  • Frequency Range: 10 MHz to 26.5 GHz
  • Range: +16 dBm to -60 dBm
  • Maximum input power: +20 dBm (100 mW)
  • Input impedance: 50 ohms
  • Connector: APC-3.5 mm(m)
  • Shipping weight: 3 lb

Please see Datasheet for complete details and specifications.
