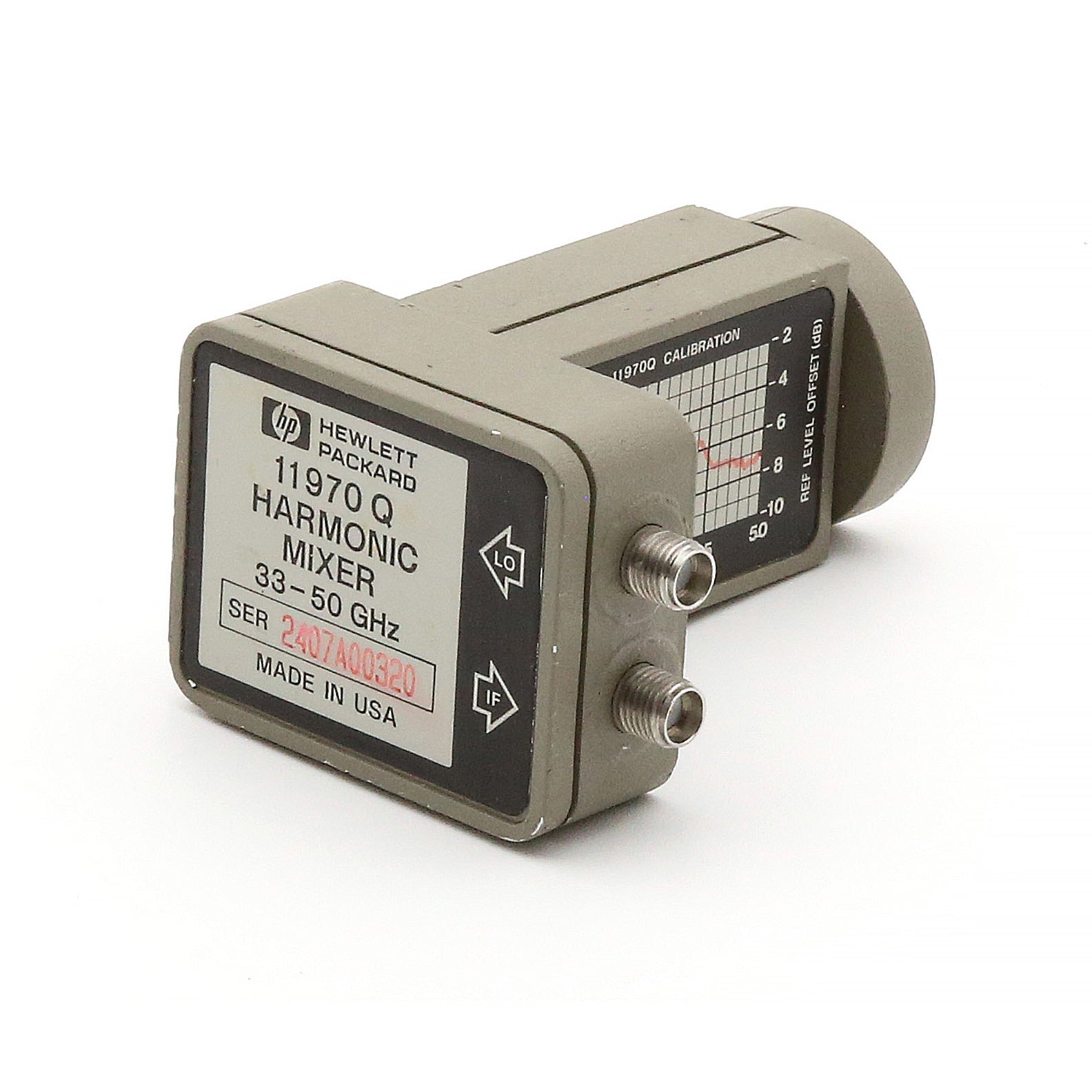

Keysight / Agilent 11970Q Waveguide Harmonic Mixer, 33 to 50 GHz
The 11970Q waveguide mixer is a general-purpose harmonic mixer employing a dual-diode design to achieve flat frequency response and low conversion loss. These are achieved without external dc bias or tuning stubs. The 11970Q extends the frequency range of the E4407B ESA-E, 8560 series, 8566B (used with the 11975A amplifier), and the 70000 modular measurement system (used with the 70907A/B external mixer interface) spectrum analyzers.
- Frequency Range: 33 - 50 GHz
- IF range: dc to 1300 MHz
- SWR: <2.2:1
- UG-383/U flange
- Shipping weight: 2 lb
Please see Datasheet for complete details and specifications.
