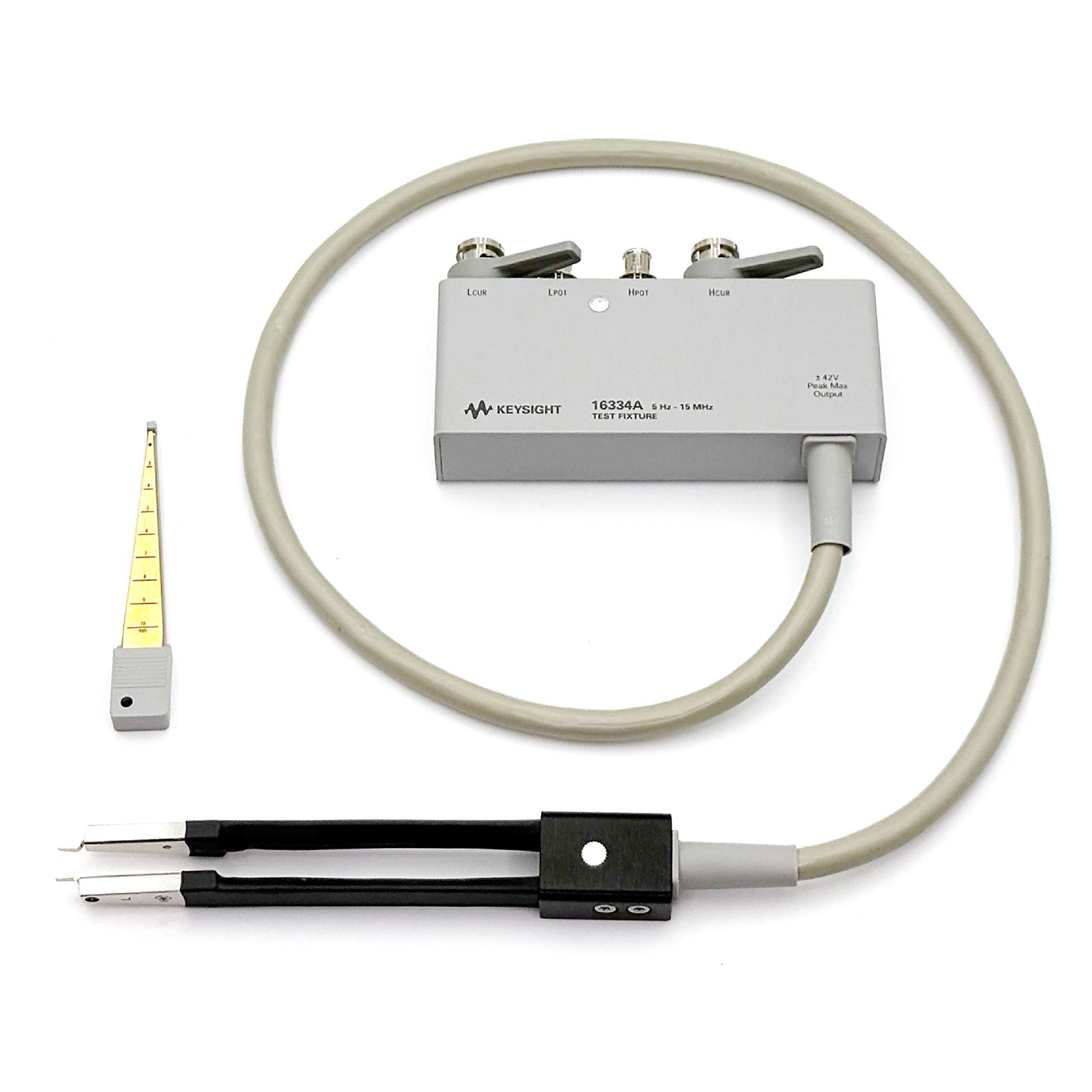

Keysight / Agilent 16334A SMD/Chip Tweezers Contacts Test Fixture

Keysight / Agilent 16334A SMD/Chip Tweezers Contacts Test Fixture

The 16334A is designed for impedance measurements of SMD components. The minimum SMD size this fixture is adapted to evaluate is 1.6(L) x 0.8(W) [mm]. The tweezer's contacts on this fixture make it easy to hold the DUT.

Features:

• Applicable instruments: E4980A/AL, E4981A, E4990A
• Frequency: 5 Hz to 15 MHz
• Maximum voltage: ±42 V peak max. (AC+DC)
• DUT size: ≤10 mm (width)
• Terminal connector: Use with 4 terminal-pair LCR Meters and Impedance Analyzers.
• DUT connection: 2-Terminal

• Cable length (approx.): 1 m

Please see the Datasheet for complete details and specifications.
