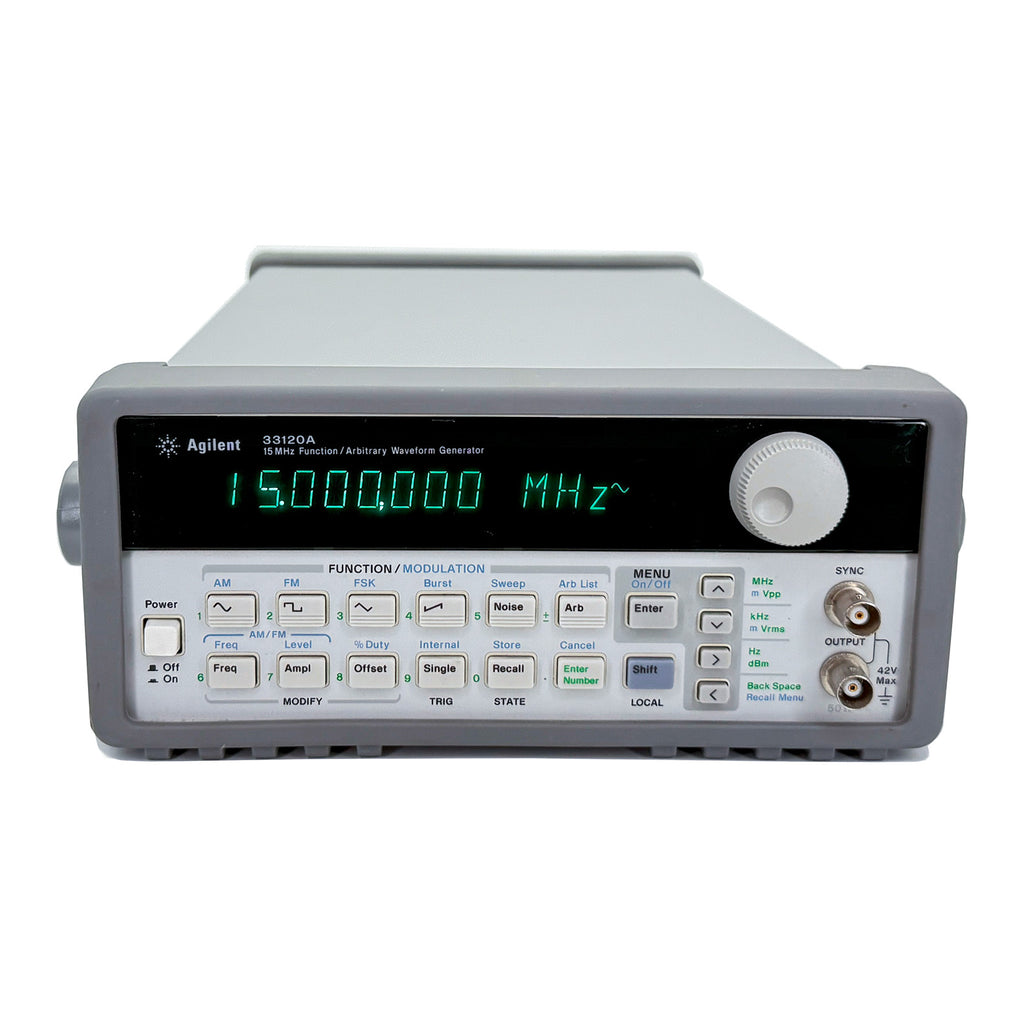

Keysight / Agilent 33120A Function / Arbitrary Waveform Generator, 15 MHz
The 33120A Function/Arbitrary Waveform Generator uses direct digital synthesis techniques to create a stable, accurate output signal for clean, low distortion sine waves. It also gives you fast rise- and fall-time square wave, and linear ramp waveforms down to 100 µHz.
The 33120A can generate complex custom waveforms such as a heartbeat or the output of a mechanical transducer. With 12-bit resolution, and a sampling rate of 40 MSa/s, the 33120A gives you the flexibility to create any waveform you need. It also lets you store up to four 16,000-deep waveforms in nonvolatile memory.
Front-panel operation of the 33120A is straightforward and intuitive. You can access any of ten major functions with a single key press or two, then use a simple knob to adjust frequency, amplitude and offset. To save time, you can enter voltage values directly in Vp-p, Vrms or dBm. Internal AM, FM, FSK and burst modulation make it easy to modulate waveforms without the need for a separate modulation source. Linear and log sweeps are also built in, with sweep rates selectable from 1ms to 500 s. GPIB and RS-232 interfaces are both standard, plus you get full programmability using SCPI commands.
- 15 MHz sine and square wave outputs
- 12-bit, 40 MSa/s, 16,000-point deep arbitrary waveforms
- Direct Digital Synthesis for excellent stability
- AM, FM, FSK modulation
- GPIB & RS-232 interfaces
- Output connector: BNC(f)
- 100, 120/220, 240 Vac ±10%; 45-66/360-440 Hz operation
- Weight: 9 lb; Size: 104 mm (4.1 in)H x 255 mm (10.1 in)W x 374 mm (14.73 in)D
Please see Datasheet for complete details and specifications.
