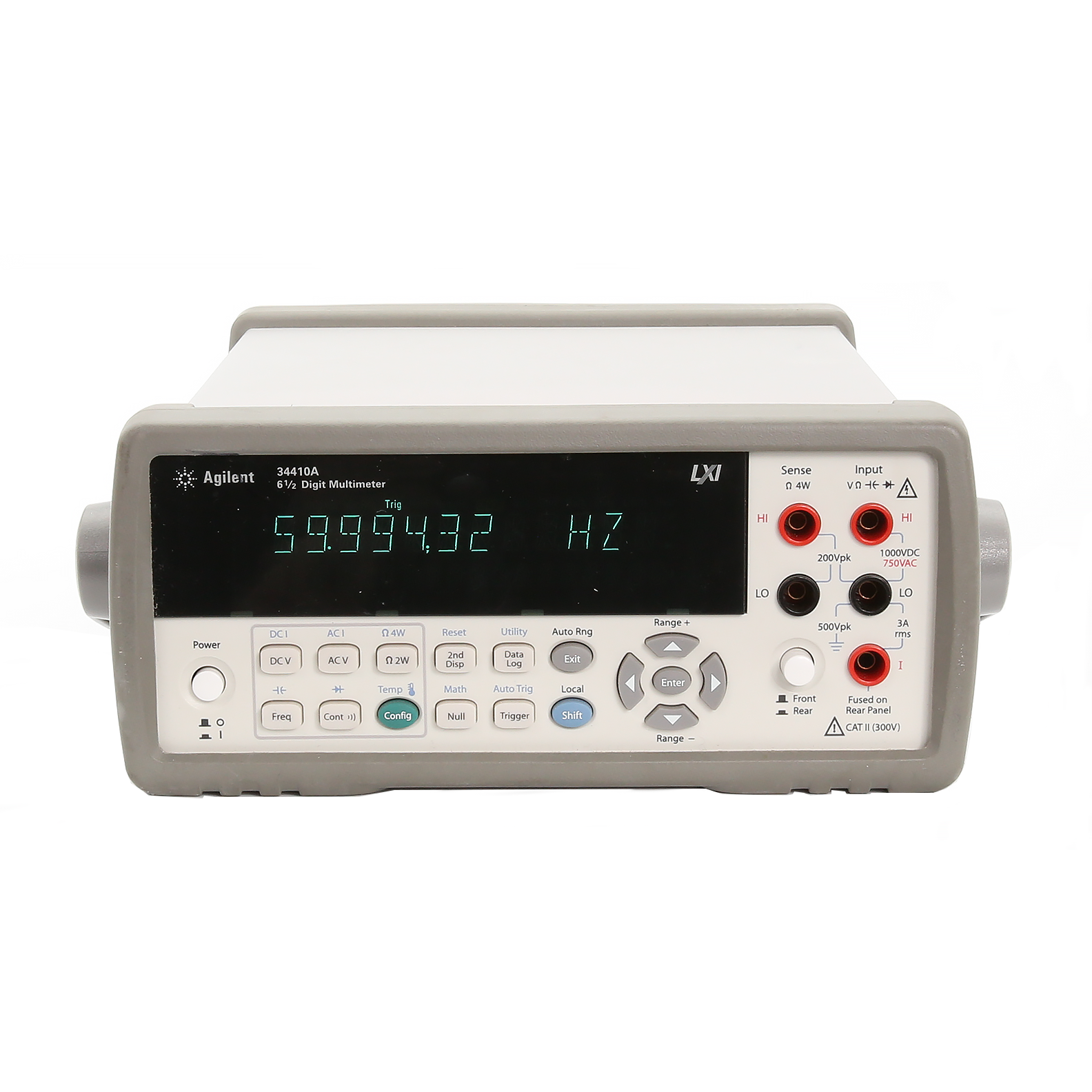

Keysight / Agilent 34410A Digital Multimeter, 6½ Digit
The Agilent Technologies 34410A 6½-Digit DMM builds on the phenomenal success of the industry-standard Keysight 34401A. This meter offers improved accuracy, expanded measurement capability, dramatically improved measurement speed and throughput, and modern computer interfaces including LAN and USB. The dual display offers both dual measurement capabilities and ease of use when setting up and configuring the DMM. Improvements have been made in every facet of the 34401A to make the best even better, whether you use it on the bench or in a system.
Whether it’s raw reading speed or fast system throughput, the 34410A sets a new benchmark in performance. Using a new A/D technology, the 34410A achieves an impressive 10,000 readings a second at 5½-digits, and can stream readings to your computer at this same speed! Triggering is fast and precise, with both trigger latency and trigger jitter less than 1 µs, while bus query response is less than 500 µs. ACV measurements are faster as well thanks to a digital measurement technique that additionally improves accuracy at high and low frequencies.
The 34410A offers Temperature and Capacitance capabilities, in addition to those measurements you have come to expect, such as DCV, ACV, DCI, ACI, 2-wire and 4-wire Resistance, Frequency, Period, Continuity and Diode Test. You also get Offset Compensated Ohms, allowing you to accurately measure resistance in the presence of voltages. Measurement ranges have been expanded as well; for example, DC and AC Current Ranges now go down to 100 µA, resulting in 100 pA resolution. Real-time math and statistics are included, and a peak-detect capability allows you to capture peaks as short as 20 µs.
- 6½ digit resolution
- Basic accuracy: .0030 % DC,0.06% AC
- 14 measurement functions including capacitance & temperature
- Data Logger with 50,000 reading non-volatile memory
- 50,000 readings/sec. @ 4½ digits to the PC
- 1M reading memory
- Analog level and pre/post triggering
- LAN (LXI compliant), USB & GPIB standard
- 10,000 readings/sec @ 5½ digits to the PC
- 1,000 readings/sec @ 6½ digits to the PC
Please see Datasheet for complete details and specifications.
