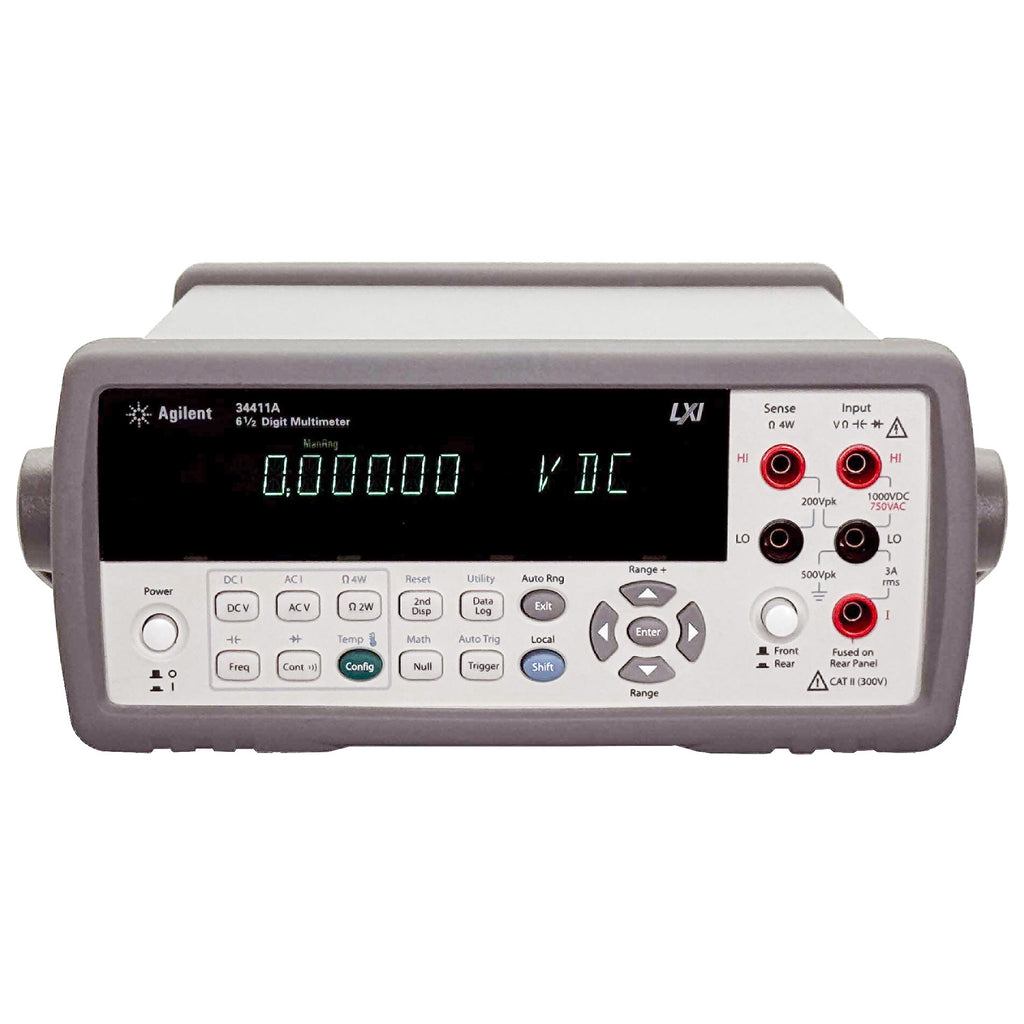

Keysight / Agilent 34411A Digital Multimeter, 6½ Digit

Keysight / Agilent 34411A Digital Multimeter, 6½ Digit

The Agilent Technologies 34411A 6½-Digit DMM builds on the phenomenal success of the industry-standard Keysight 34401A. This meter offers improved accuracy, expanded measurement capability, dramatically improved measurement speed and throughput, and modern computer interfaces including LAN and USB. The dual display offers dual measurement capabilities and ease of setup and configuration for the DMM. Improvements have been made in every facet of the 34401A to make the best even better, whether you use it on the bench or in a system.

Whether it’s raw reading speed or fast system throughput, the 34411A sets a new benchmark in performance. Using a new A/D technology, the 34411A delivers an impressive 50,000 readings per second at 4½-digit resolution and can stream them to your computer at the same rate! Triggering is fast and precise, with both trigger latency and jitter under 1 µs, and the bus query response under 500 µs. ACV measurements are faster as well, thanks to a digital measurement technique that additionally improves accuracy at high and low frequencies.

The 34411A offers Temperature and Capacitance capabilities, in addition to those measurements you have come to expect, such as DCV, ACV, DCI, ACI, 2-wire and 4-wire Resistance, Frequency, Period, Continuity, and Diode Test. You also get Offset Compensated Ohms, allowing you to accurately measure resistance in the presence of voltages. Measurement ranges have been expanded as well; for example, DC and AC Current Ranges now go down to 100 µA, resulting in 100 pA resolution. Real-time math and statistics are included, and a peak-detect capability allows you to capture peaks as short as 20 µs.

Features:

• 6½ digit resolution
• 30 PPM 1-year Basic DC accuracy
• Measurement functions: DCV, ACV, DCI, ACI, 2-wire and 4-wire Resistance, Frequency, Period, Continuity, Diode Test, Capacitance, and Temperature

• Data logger with 50 k reading non-volatile memory
• 50,000 readings/s @ 4½-digits direct to PC
• 1 million volatile reading memory
• Analog level triggering
• Programmable Pre/Post triggering
• LAN (LXI compliant), USB & GPIB standard

Please see the Datasheet for complete details and specifications.
