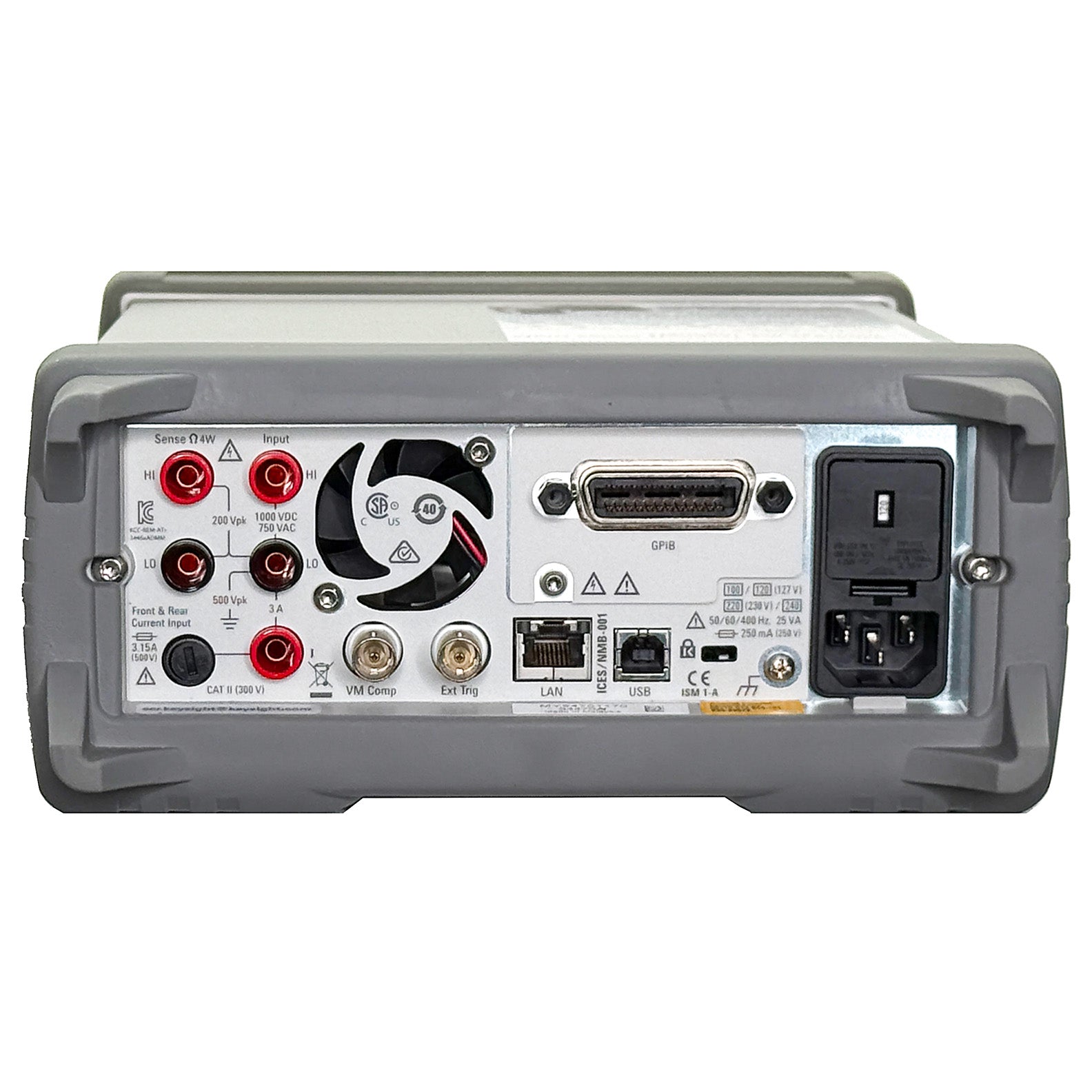

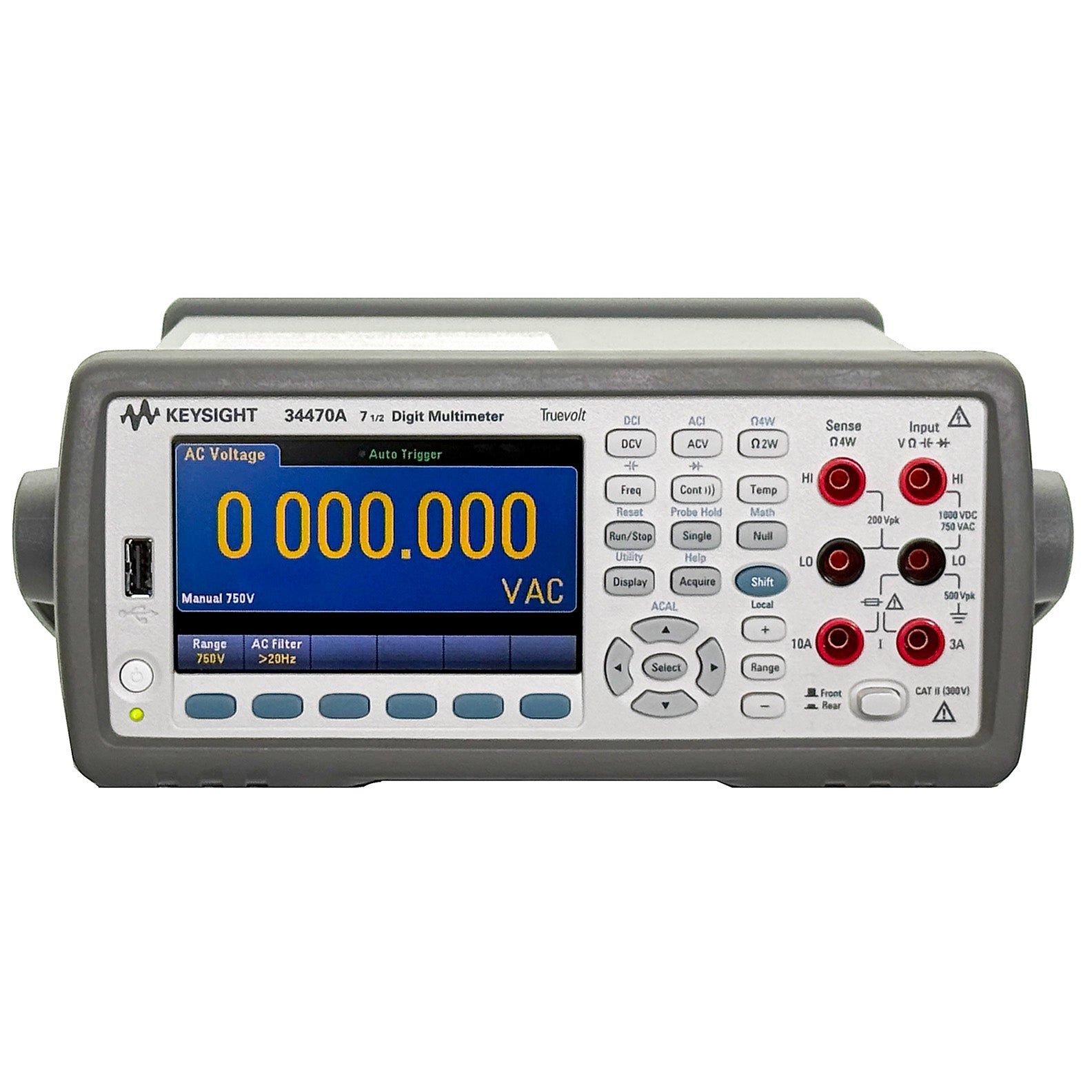

Keysight / Agilent 34470A Digital Multimeter, 7½ Digit

Keysight / Agilent 34470A Digital Multimeter, 7½ Digit

The Keysight 34470A 7.5-digit multimeter offers unprecedented levels of accuracy, speed, and resolution. It can measure very low current down to a 1 μA range, enabling its use on very low-power devices. The ability to auto-calibrate during the measurement allows the 34470A to maintain a calibrated reading while the instrument undergoes temperature drift/changes.

Graphical capabilities, including trend charts and histograms, facilitate greater user insight gained more quickly. This 7.5-digit multimeter model provides a data logging mode for easier trend analysis and a digitizing mode for capturing transients.

• Histogram, bar, and trend charts on a 4.3-inch color graphical display ease monitoring and speed up statistical analysis.
• Measure with confidence, with 16 ppm basic DCV accuracy.
• Test low-power devices with 1 µA range and pA resolution.
• Flexibly automate measurements over USB or LAN/LXI core interface.

Features:

• 7½ digit resolution
• Basic DCV accuracy: 16 ppm
• DCV, ACV, DCI, ACI, 2- and 4-wire resistance, frequency, period, continuity, diode, temperature, capacitance, DC ratio
• Statistical Graphics: Histogram, Bar Meter, Trend Chart
• Analog level and pre/post triggering
• Automatic calibration (ACAL) capable

• LAN (LXI compliant), USB standard

Please see the Datasheet for complete details and specifications.
