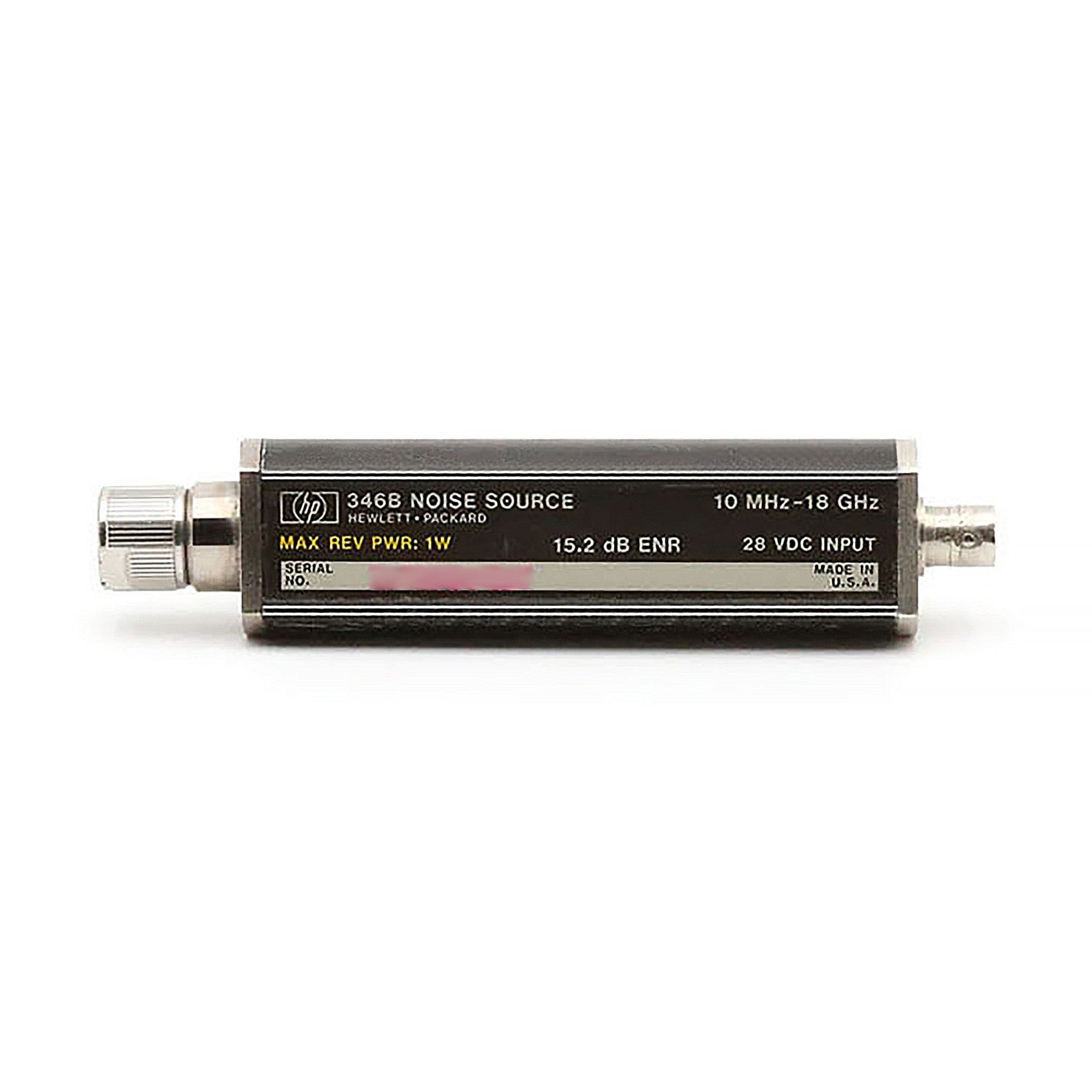

Keysight / Agilent 346B Noise Source, 10 MHz to 18 GHz, nominal ENR 15 dB, 3.5 mm(m)

Keysight / Agilent 346B Noise Source, 10 MHz to 18 GHz, nominal ENR 15 dB, 3.5 mm(m)

The 346B noise source is a high ENR, low SWR, general-purpose noise source. Since it is broadband (10 MHz to 18 GHz), it eliminates the necessity for several sources at different frequency bands. The low SWR of the noise source reduces a major source of measurement uncertainty; reflections of test signals. The 346B's high ENR, low SWR, and variety of connectors make it a general-purpose noise source.

Features:

• Frequency Range: 10 MHz to 18.0 GHz
• ENR limits: 14 to 16 dB
• Maximum SWR: 1.30
• 3.5 mm (m) input connector (standard), Type-N(m) Option 001
• 50 ohm input impedance
• 28 Vdc operation
• Shipping weight: 2 lb; Size: 140 mm (5.5 in)H x 21 mm (0.8 in)W x 30 mm (1.2 in)D

Please see Datasheet for complete details and specifications.
